Main module reassembly procedure, Replacing the cpu replacing the thermal module – Acer 2930 User Manual
Page 114
104
Chapter 3
Main Module Reassembly Procedure

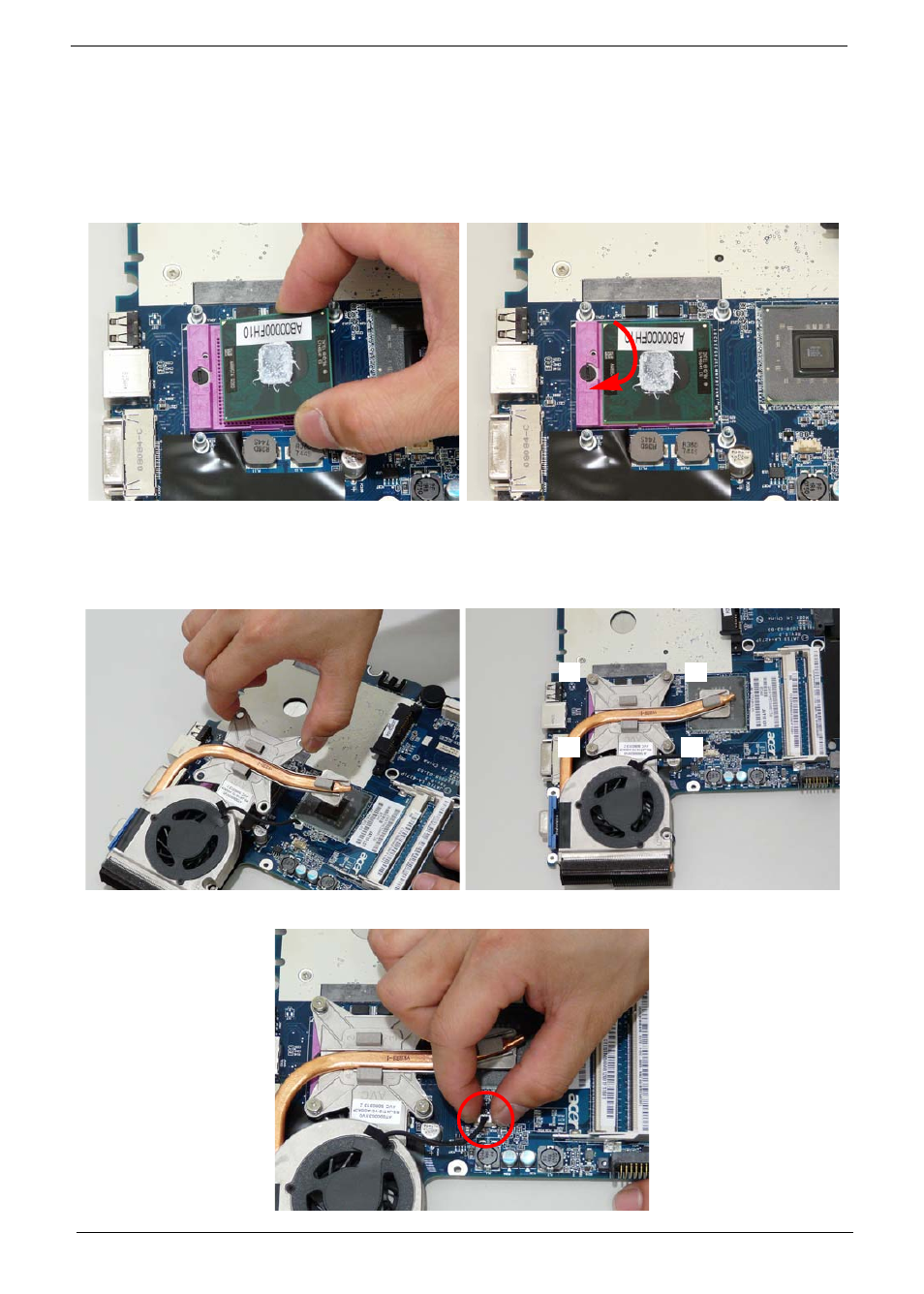

Replacing the CPU
Replacing the Thermal Module
1. Carefully turn the mainboard upside down (CPU
socket side up), and insert the CPU into the CPU
socket as shown.
2. Using a plastic screw driver, lock the CPU in the
socket as shown.
1. Align the Fan Module on the screw brackets.
2. Tighten the four (4) captive screws in the order
shown.
3. Connect the Fan cable to the Mainboard.
1
2
3
4
