Removing the wlan module – Acer 2930 User Manual
Page 58
48
Chapter 3
Removing the WLAN Module
1. Remove the Battery Pack. See “Removing the Battery Pack” on page 44.
2. Remove the Memory Cover. See “Removing the Lower Covers” on page 47.

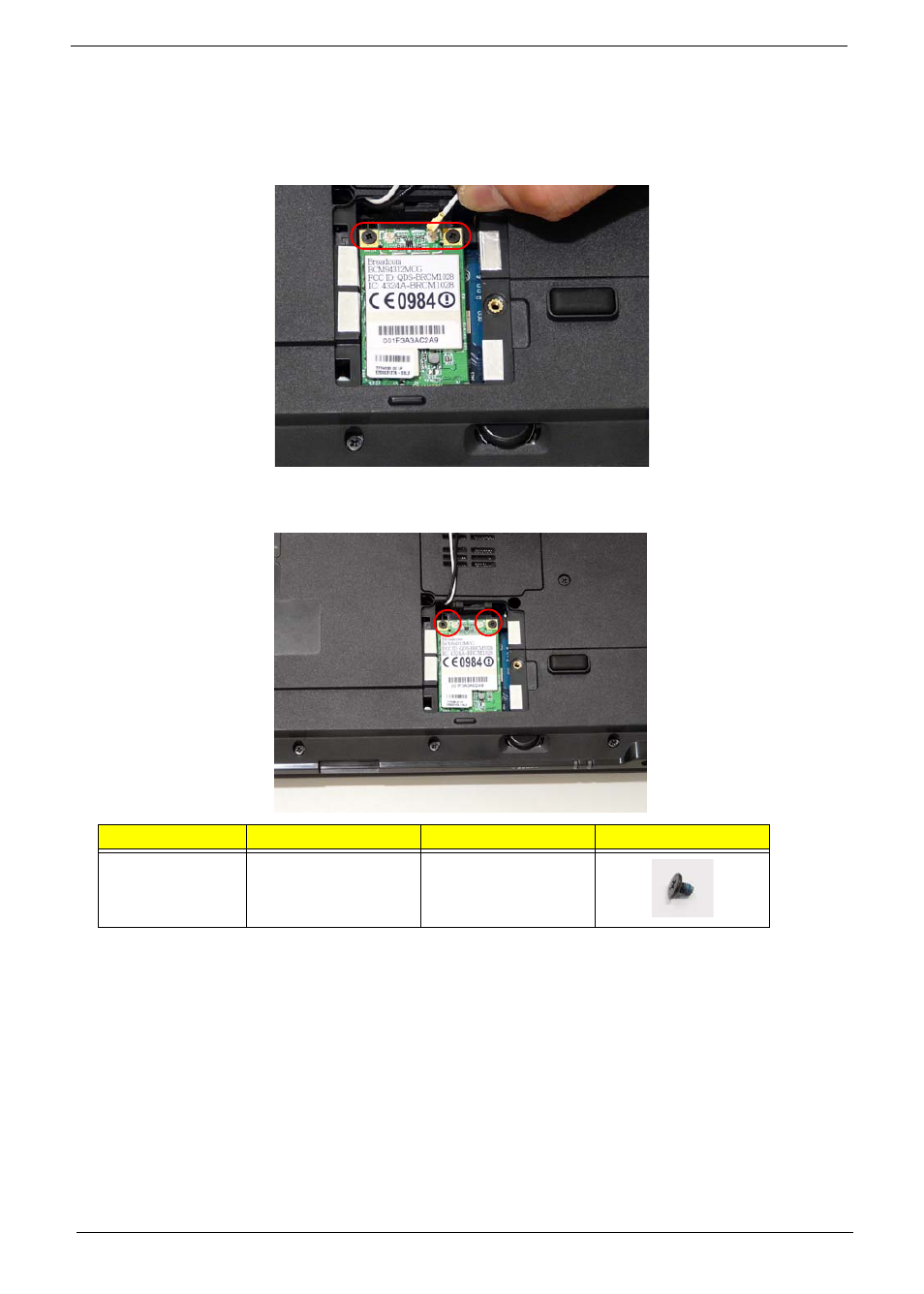

3. Disconnect the 2 antenna cables from the WLAN board.
NOTE: When replacing, connect the black cable to the MAIN and the white to the AUX connector.
4. Move the antenna cables away and remove the two screws on the WLAN board to release the WLAN board.
Step
Size
Quantity
Screw Type
WLAN Module
M2*3
2
