Removing the Upper Cover
1. Remove the ExpressCard dummy card. See “Removing the ExpressCard dummy card” on page 45.
2. Remove the Switch Board. See “Removing the LED Board” on page 64.
3. Remove the LCD module. See “Removing the LCD Module” on page 66.

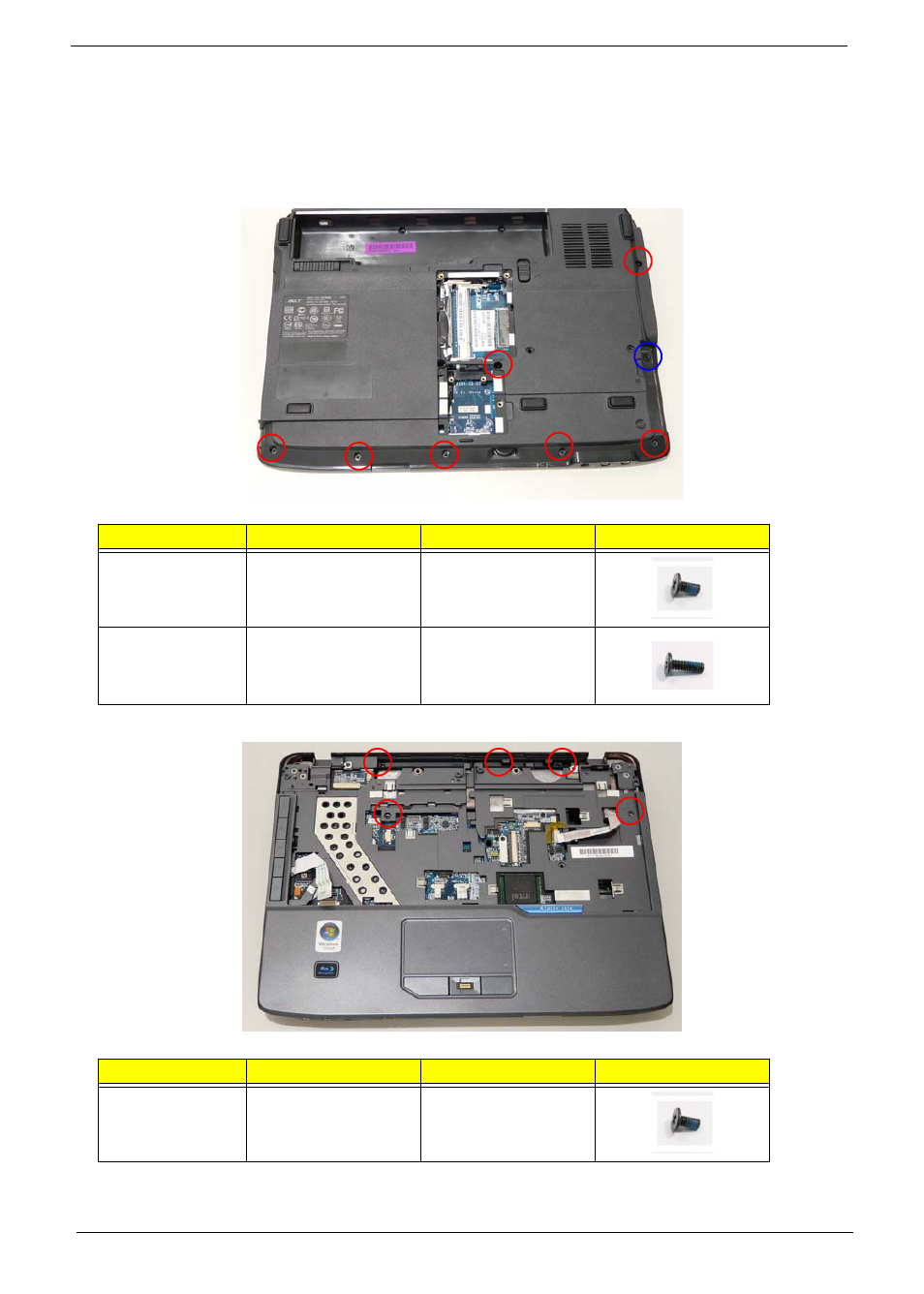

4. Turn the computer over. Remove the eight (8) screws on the bottom panel.
5. Turn the computer over. Remove the five screws on the top panel.
Step Size Quantity Screw Type
Upper Cover
(blue Call out)
M2.5*5 1
Upper Cover
(red Call out)
M2.5*8 7
Step Size Quantity Screw Type
Upper Cover M2.5*5 5
