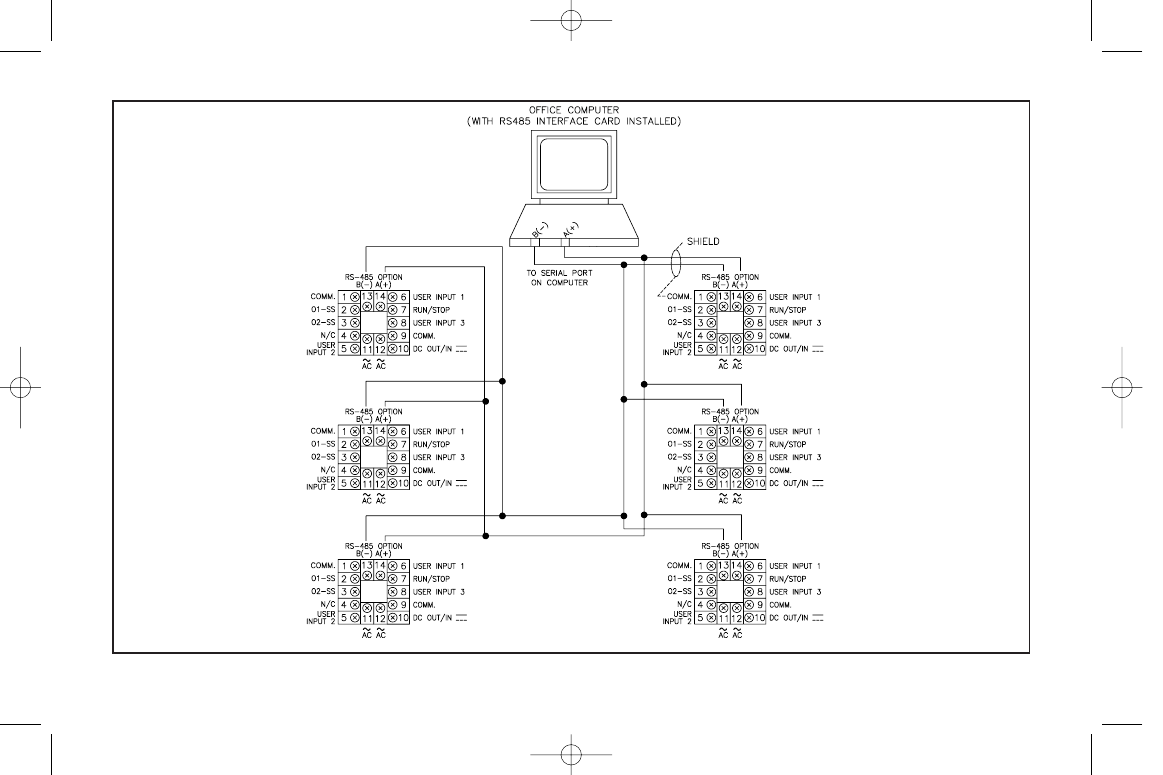

Figure 15, Connecting to a Host Terminal

different address and all are programmed for the
same baud rate and parity as the computer (ex. 9600
baud, parity even). An application program is written
to send and receive data from the units using the
proper commands.

CONNECTING TO A HOST TERMINAL

Six C48T units are used to monitor and control parts

packaging machines in a plant. C48T units are located at
each machine in the production area of the building. A
communication line is run to an Industrial computer
located in the production office. The drawing shows the
line connection. Each C48T is programmed for a
