User's Guide _______________________________________________________________________
66 ___________________________________________________________________ M210566EN-K
8-Pin Connector
1104-126

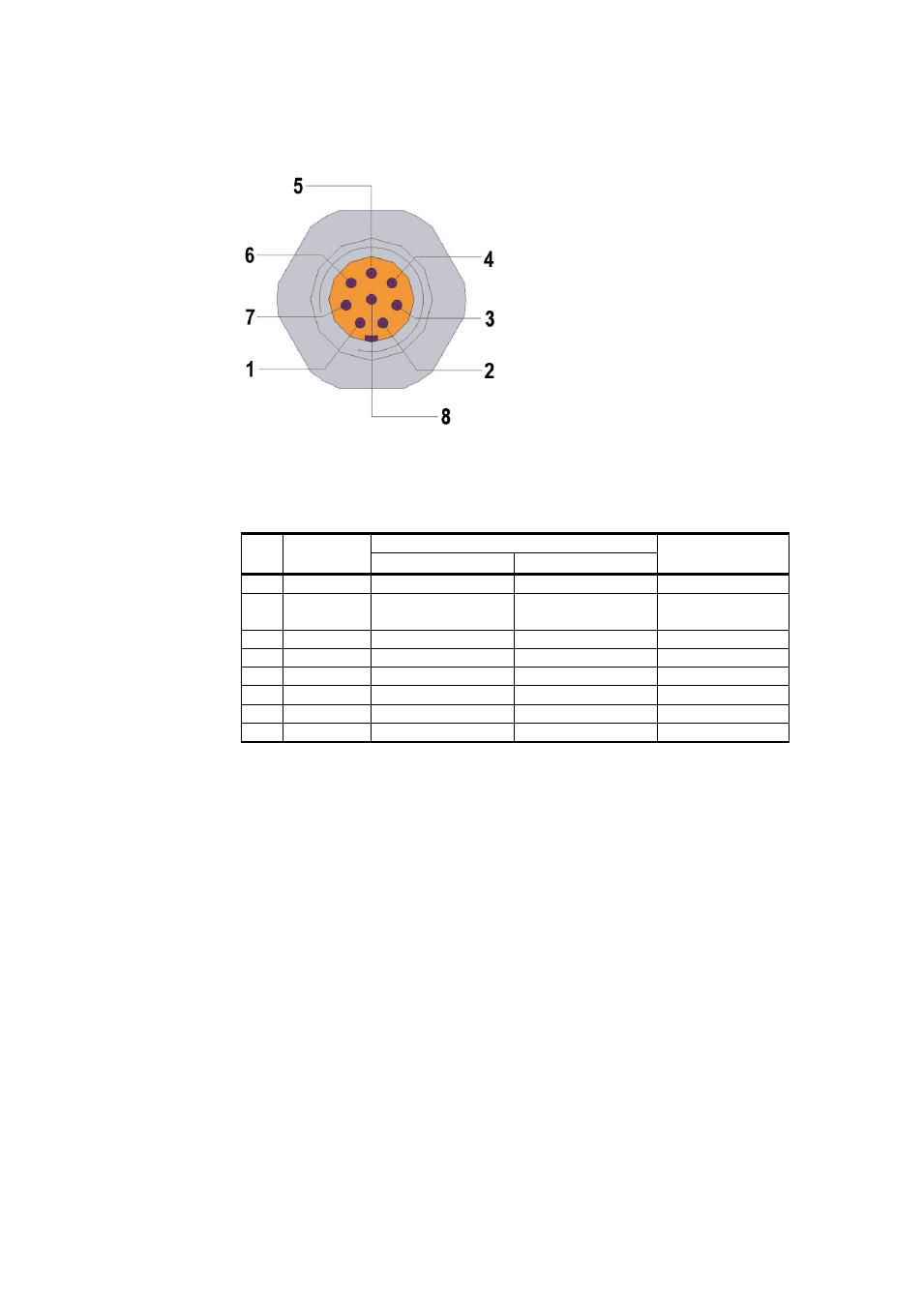

Figure 42
Pinout of the Optional 8-Pin Connector
Table 10
Wiring of the Optional 8-Pin Connector
Pin Wire
Serial Signal
Analog Signal
RS-232 (EIA-232) RS-485 (EIA-485)
1
White
Data out TX
D1+
-
2
Brown
(Serial GND)
(Serial GND)
Signal GND (for
both channels)
3
Green
-
-
Ch 2+
4
Yellow
-
-
Ch 1 +
5
Grey
Supply -
Supply -
Supply -
6
Pink
Supply +
Supply +
Supply +
7
Blue
Data in RX
D0-
-
8
Shield/Red Cable shield
Cable shield
Cable shield
