User's Guide _______________________________________________________________________
188 __________________________________________________________________ M210566EN-K
Examples of Vapor Tight Installations with
Cable Gland
RH-Probe Installations (for HMT333/337)
Cable gland AGRO is available from Vaisala (order code: HMP247CG.)
0508-026

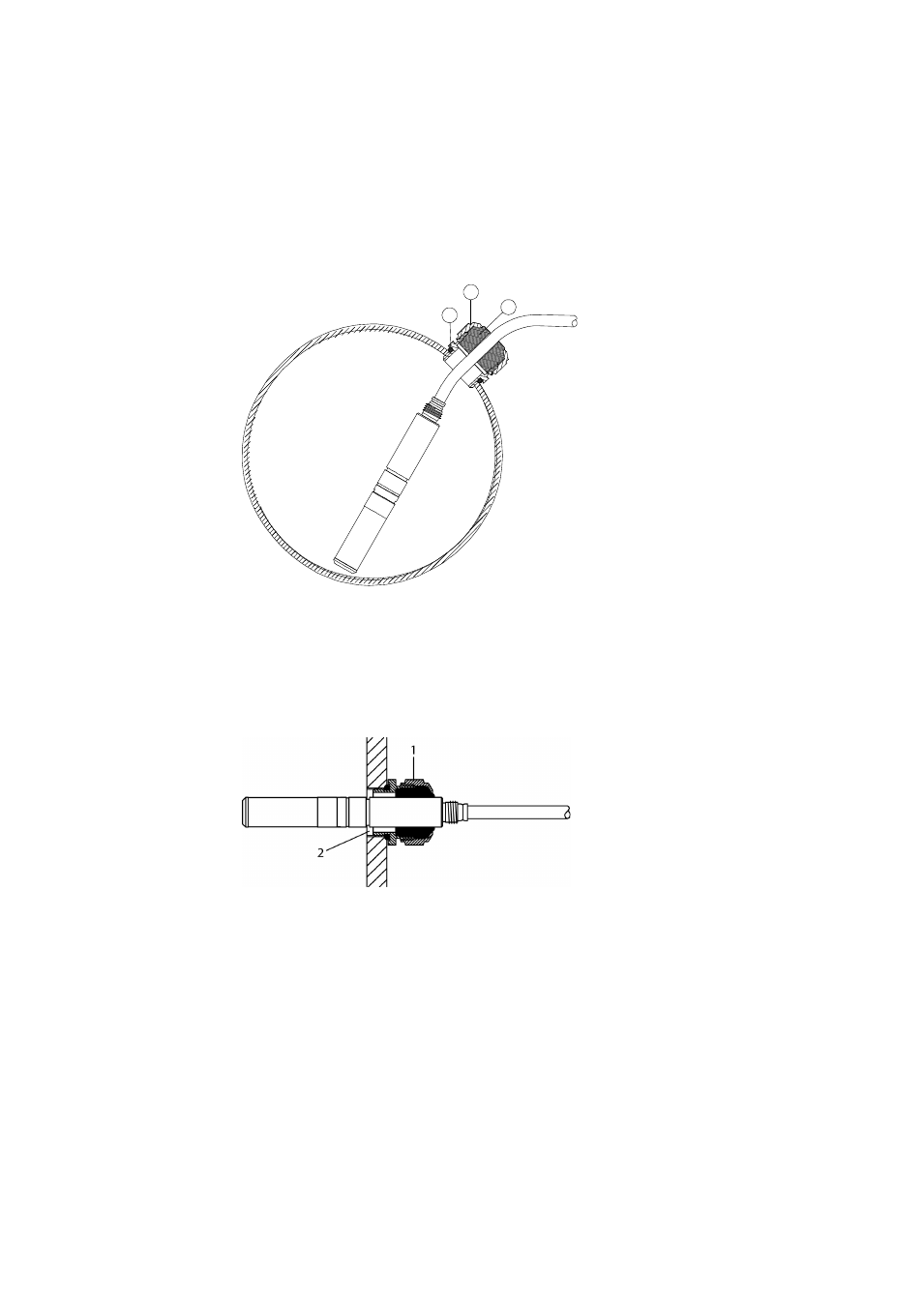

Figure 96
Cable Installation with Cable Gland
The following numbers refer to Figure 96:
1
=
Nut (to be tightened to the body)
2
=
Seal
3
=
Body and O-ring
0508-018
Figure 97
Probe Installation with Cable Gland
Probe installation with cable gland is not available from Vaisala.
The following numbers refer to Figure 97:
1 = AGRO 1160.20.145 (T= -40 ... +100 ºC) Not available from
Vaisala.
2 = In pressurized places, use a locking ring (for example: 11× 1
DIN471).
1
3
2
