Chapter 3 ________________________________________________________________ Installation

VAISALA ________________________________________________________________________ 27

CHAPTER 3

INSTALLATION

This chapter provides you with information that is intended to help you
install the product.

Mounting the Housing

The housing can be mounted either without the mounting plate or with
optional mounting plates.

Standard Mounting without Mounting
Plate

Mount the housing by attaching the transmitter to a wall with 4 screws,
for example, M6 (not provided).

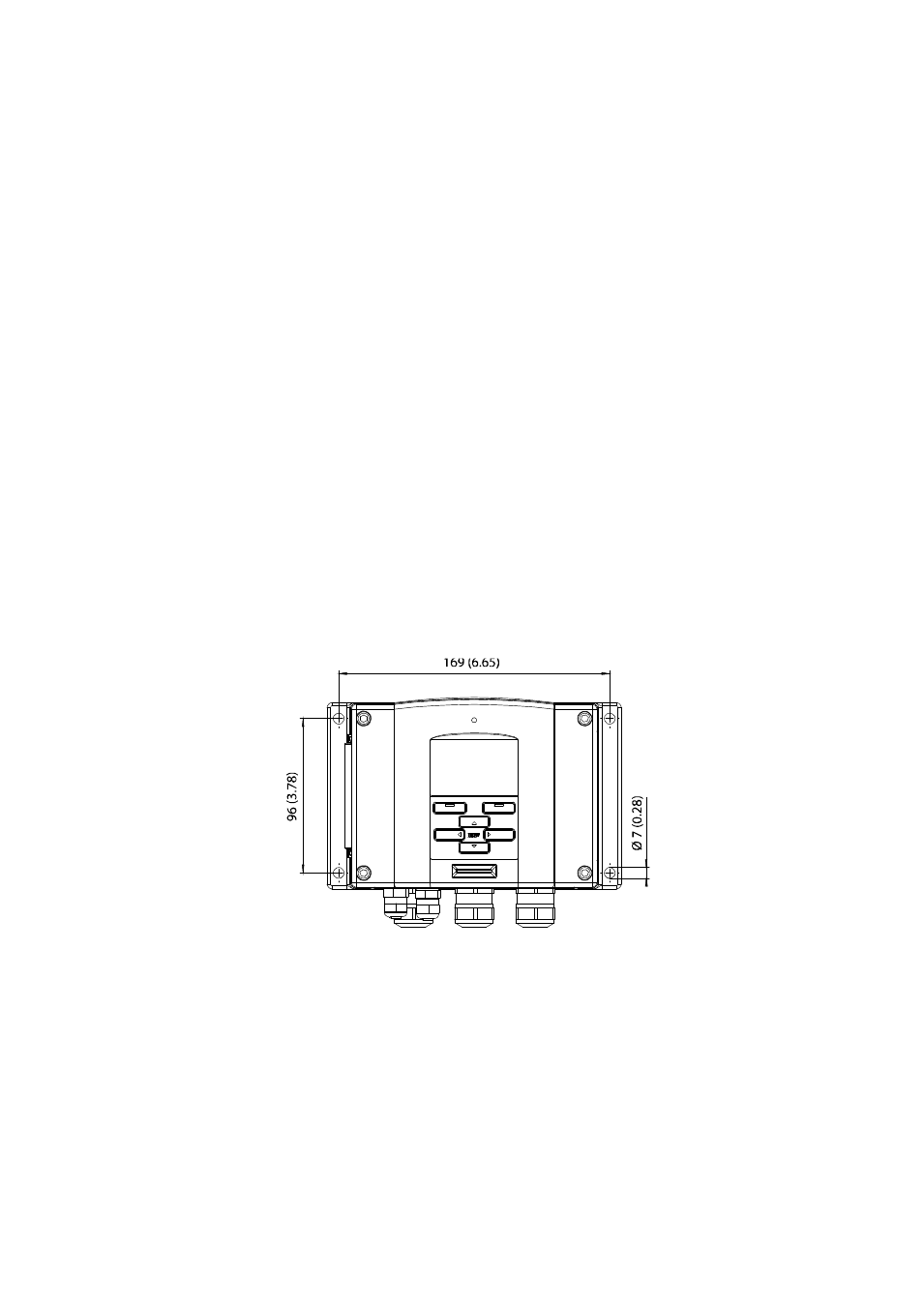

0804-066

Figure 6

Standard Mounting
