User's Guide _______________________________________________________________________
34 ___________________________________________________________________ M210566EN-K
0804-083

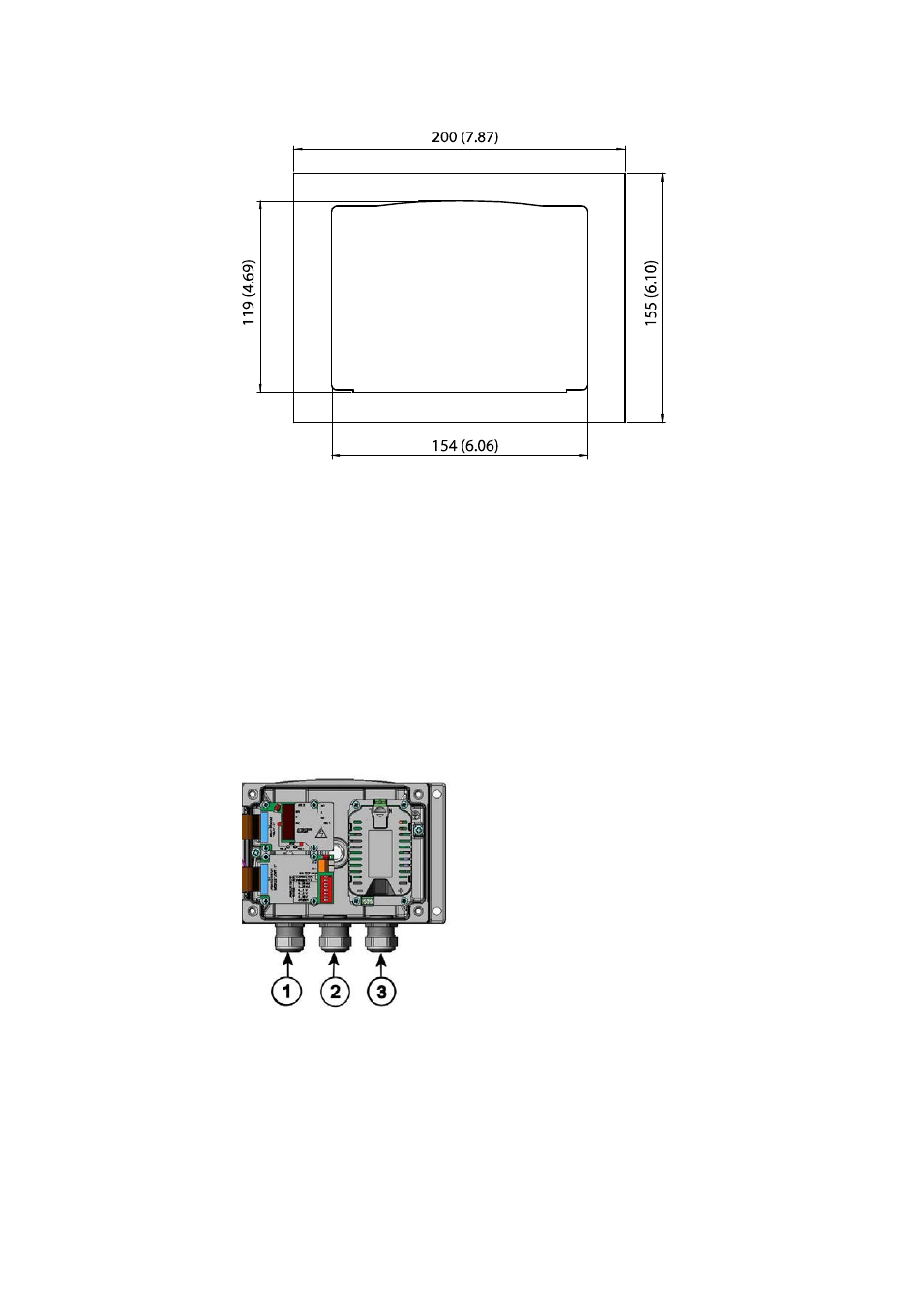

Figure 17
Panel Mounting Dimensions (mm/inch)
Wiring
Cable Bushings
A single electrical cable with screen and three to ten wires is
recommended for power and analog/serial connections. The cable
diameter should be 8 ... 11 mm. The number of cable bushings depends
on the transmitter options. See the following recommendations for the
cable bushings:
0503-010
Figure 18
Cable Bushings
The following numbers refer to Figure 18 above:
1
= Cable for signal/powering Ø8 ... 11 mm
2
= Cable for optional module Ø8 ... 11 mm
3
= Cable for optional power supply module Ø8 ... 11 mm
