User's Guide _______________________________________________________________________
186 __________________________________________________________________ M210566EN-K
Duct Installation Kit for Temperature Probe (for
HMT337)
Vaisala duct installation kit for the T-probe includes flange, supporting
bar, probe attaching part, sealing ring and the fixing screws (4 pcs).
Vaisala order code: 215003.
0507-018

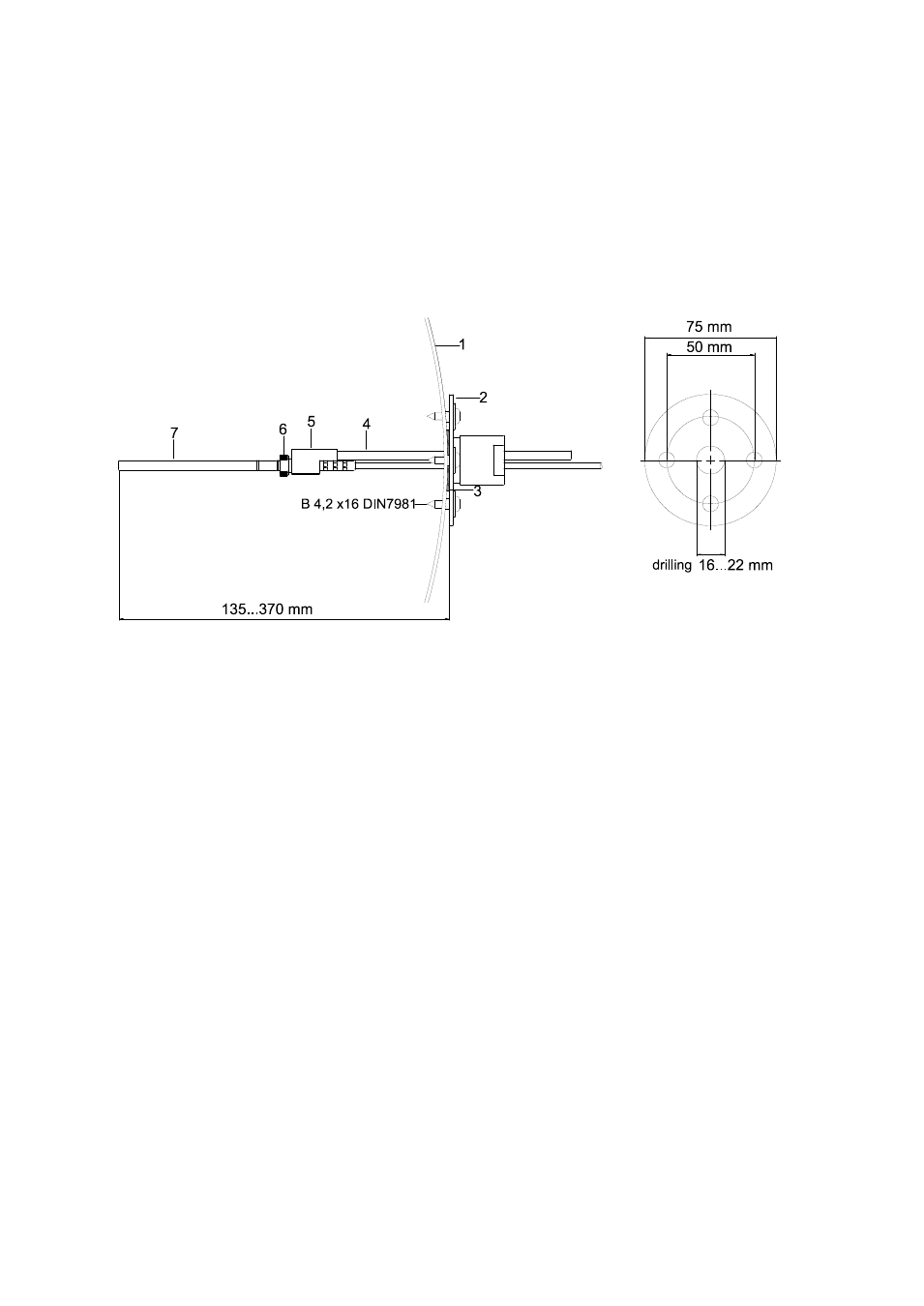

Figure 93
Duct Mounting Installation Kit for T-Probe
The following numbers refer to Figure 93:
1
=
Duct wall
2
=
Flange
3
=
Sealing ring
4
=
Supporting bar
5
=
Probe support (to be fixed to the supporting bar)
6
=
Retainer bushing (to be fixed to the probe support)
7
=
Temperature probe (to be fixed to the retainer bushing)
