Figure 9, Dimensions of the probe holder plate (mm/inch) – Vaisala HMT330 User Manual
Page 31
Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 29
The HMT331 short cable probe is designed to be wall mounted with the
probe holder plate (Vaisala order code 226252). The probe holder plate is
similar to the standard mounting plate, except for the probe holder at the
bottom.
0911-061

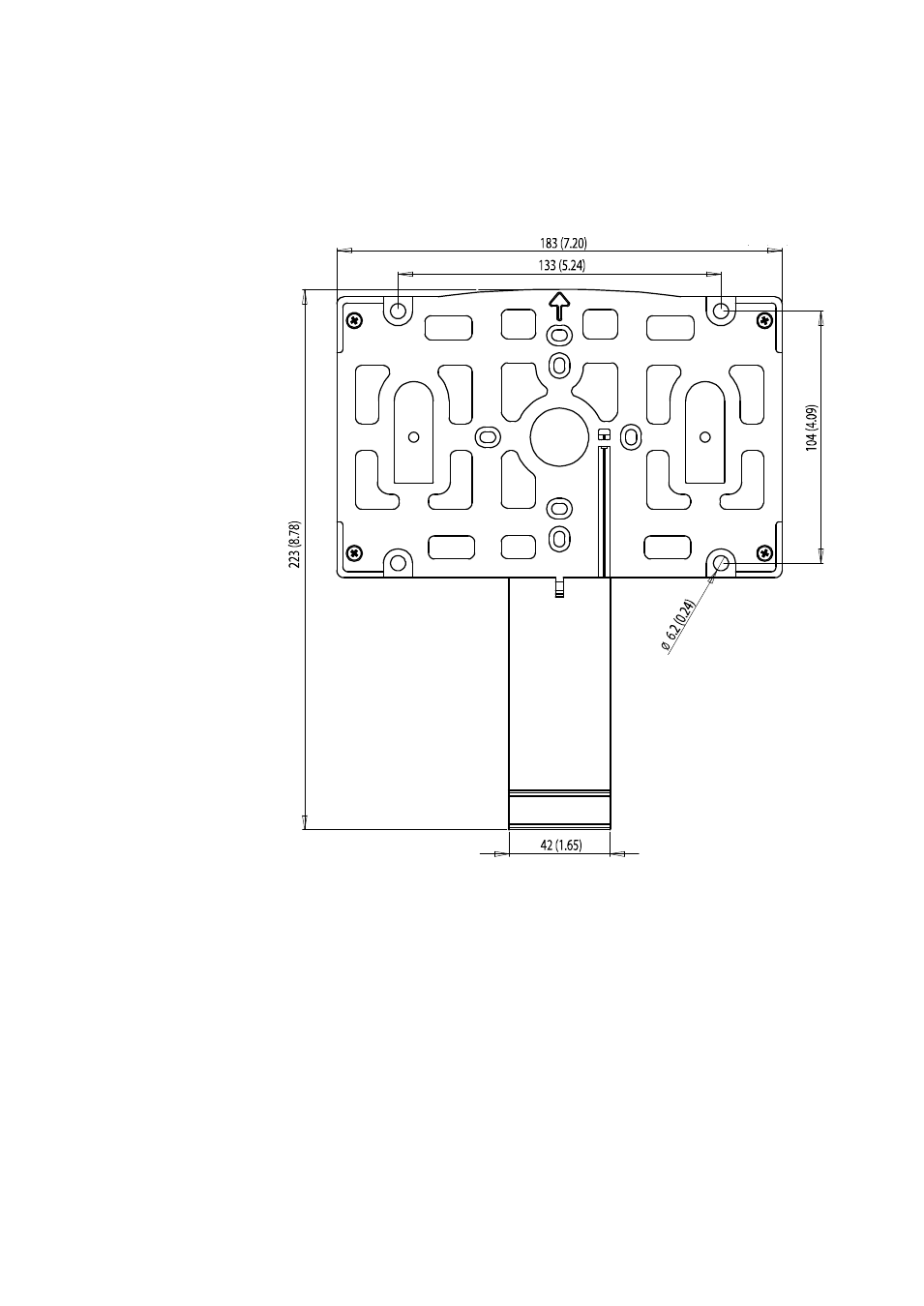

Figure 9
Dimensions of the Probe Holder Plate (mm/inch)
