Appendix A _________________________________ Probe Installation Kits and Installation Examples
VAISALA _______________________________________________________________________ 187
Pressure Tight Swagelok Installation Kits (for
HMT337)
RH Probe Installation
Swagelok installation kit for the relative humidity probe includes
Swagelok connector with ISO3/8" or NPT1/2" thread. Vaisala order
codes: SWG12ISO38 or SWG12NPT12.
0508-032

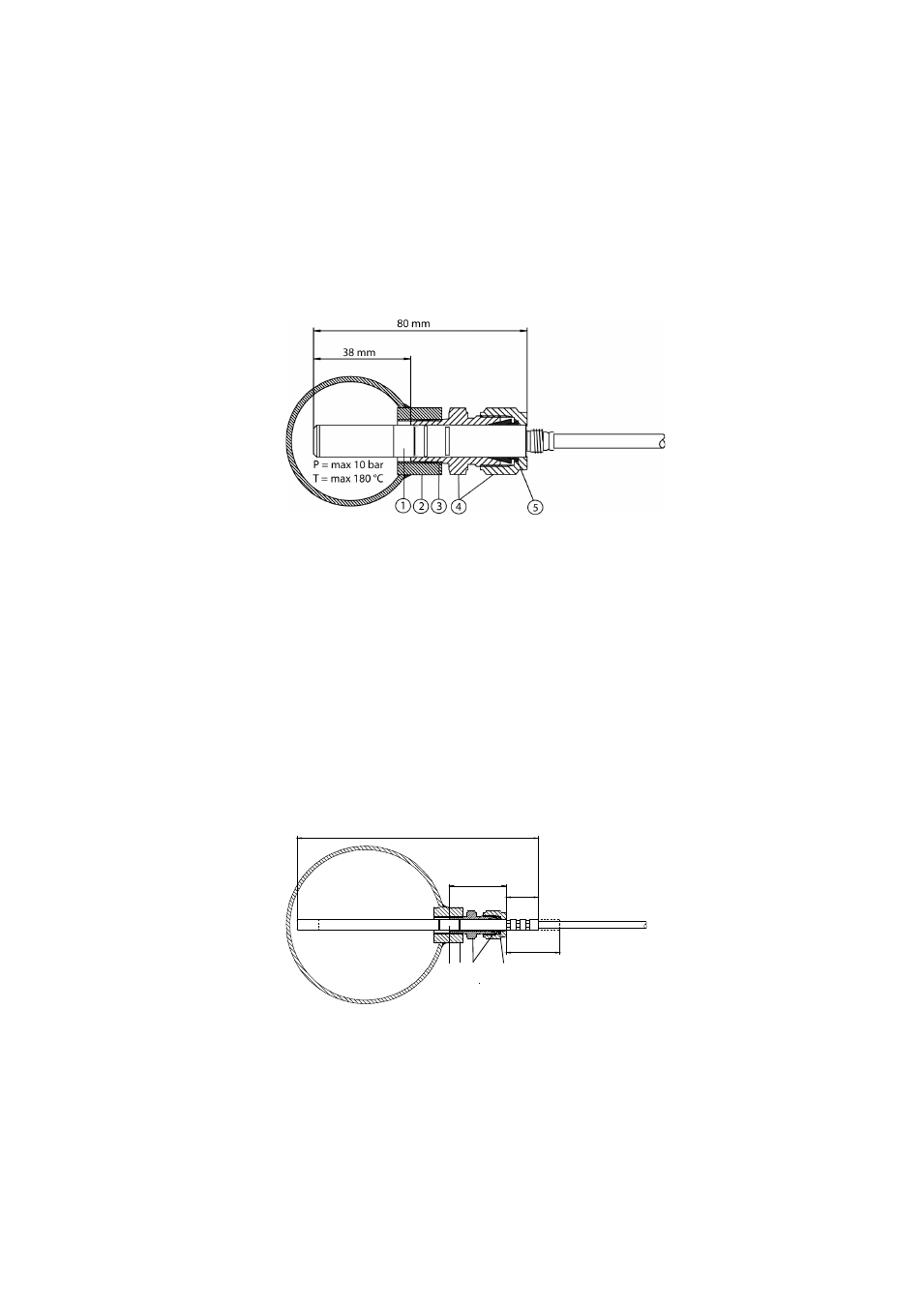

Figure 94
Swagelok Installation Kit for RH-probe
The following numbers refer to Figure 94:
1
=
Relative humidity probe
2
=
Duct connector
3
=
ISO3/8" or NPT1/2" thread
4
=
Swagelok connector
5
=
Ferrules
Temperature Probe Installation
Swagelok installation kit for T-probe includes Swagelok connector with
either ISO1/8" or NPT1/8" thread. Vaisala order codes: SWG6ISO18 or
SWG6NPT18.
0508-016
Figure 95
Swagelok Installation Kit for T-Probe
The following numbers refer to Figure 95:
1
=
T-probe
2
=
Duct connector
3
=
Swagelok connector
4
=
Ferrules
135 mm
33 mm
18 mm min
max 30 mm
1 2 3
4
P = max 10 bar
T = max 180 ºC
