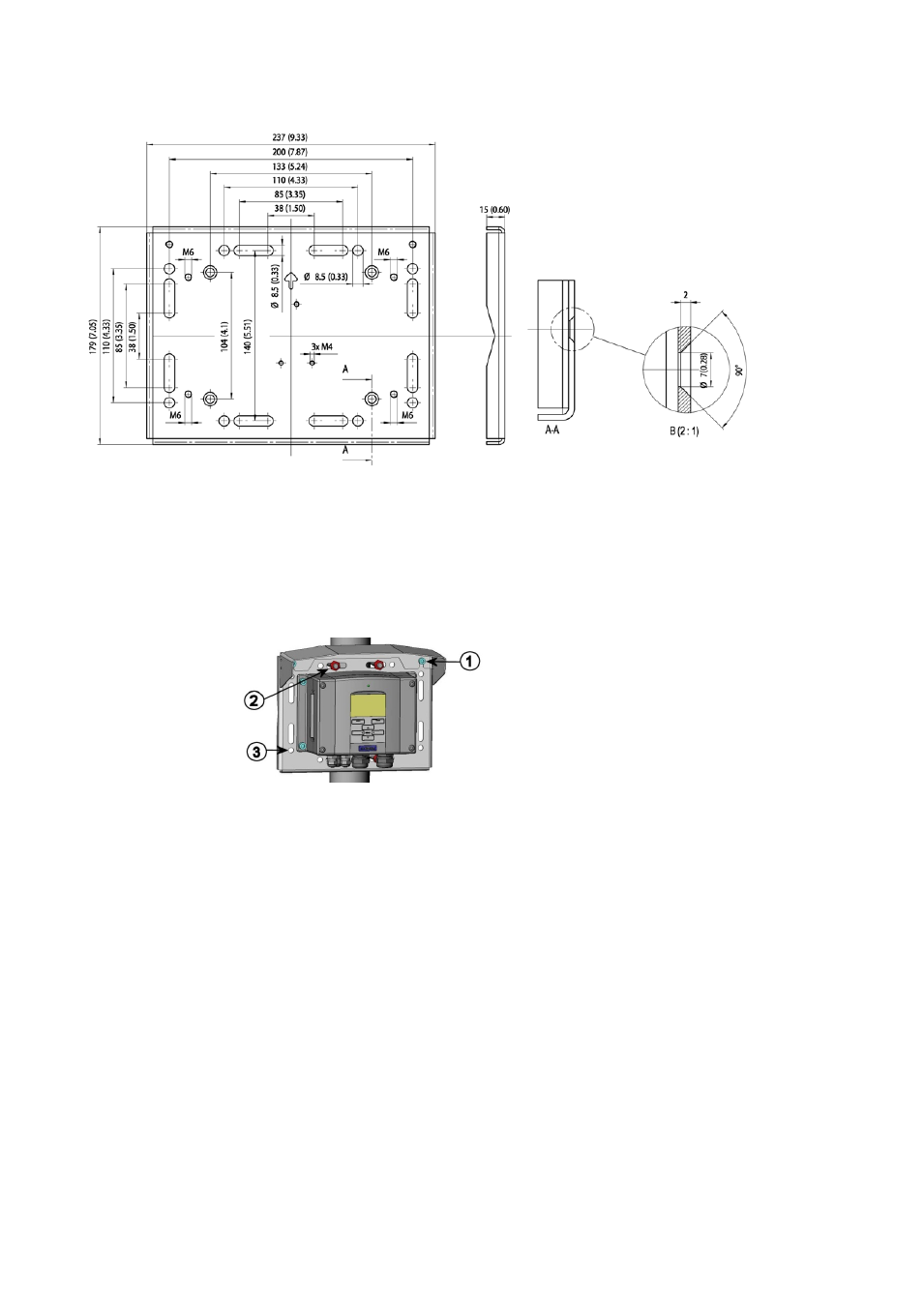

Figure 14
Dimensions of the Metal Mounting Plate (mm/inch)
Mounting Rain Shield with Installation Kit
The rain shield is highly recommended for outdoor installations,
especially for transmitters with the display/keypad option.
0503-008
Figure 15
Mounting the Rain Shield with the Installation Kit
The following numbers refer to Figure 15 above:
1
= Fasten the rain shield with the installation kit (Vaisala order
code: 215109) to the metal mounting plate with 2 (M6) mounting
screws (provided)
2
= Fasten the mounting plate with rain shield with installation kit to
the wall or to the pole (see pole installation)
3
= Fasten the transmitter to the mounting plate with 4 fixing screws
(provided)
