User's Guide _______________________________________________________________________

190 __________________________________________________________________ M210566EN-K

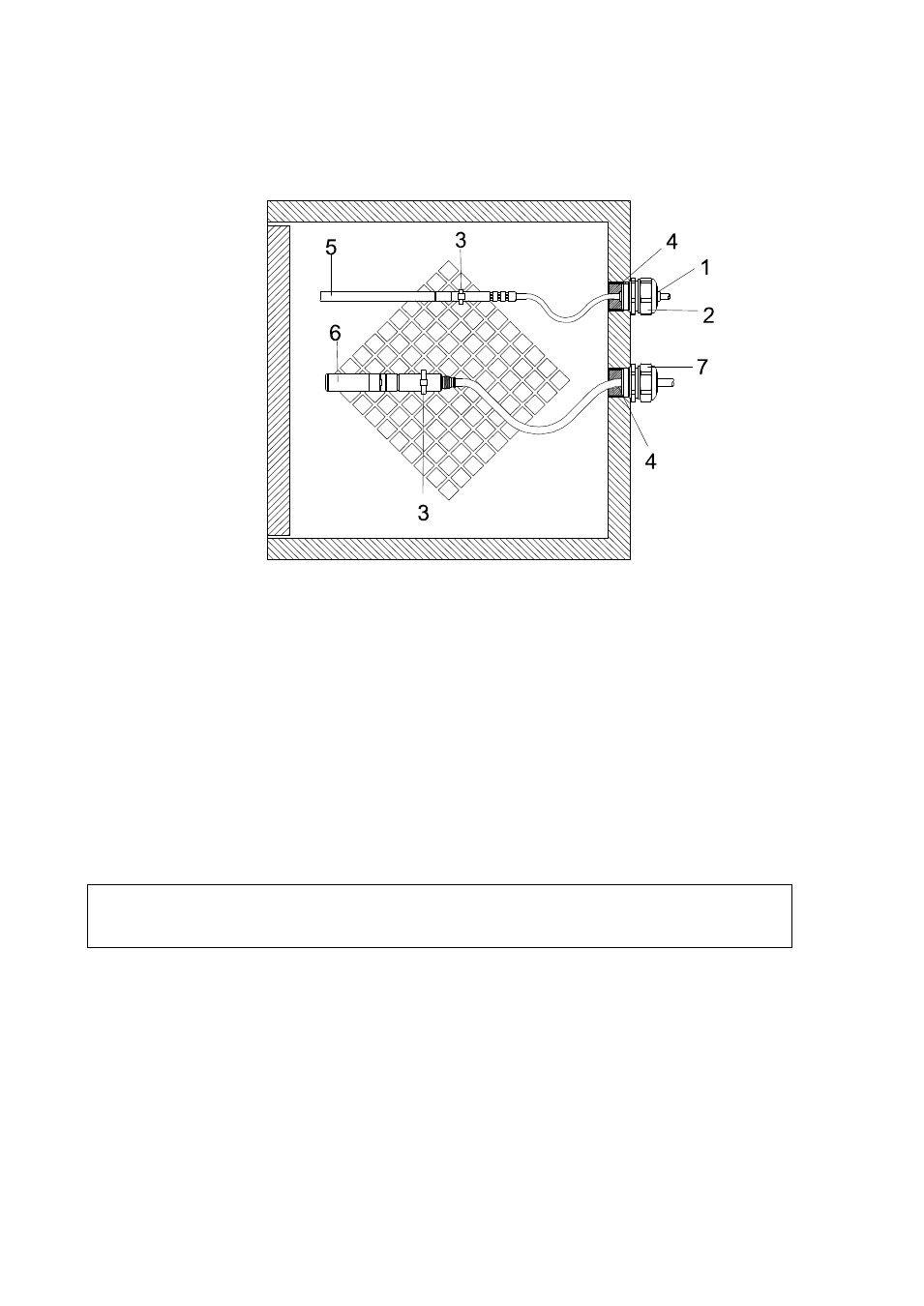

Example of Climate Chamber Installation

0507-016

Figure 100

Climate Chamber Installation (not Available from
Vaisala)

The following numbers refer to Figure 100:

1

=

PTFE sleeve

2

=

Cable gland, for example: AGRO 1100.12.91.065

3

=

Stainless steel cable tie or similar fastener

4

=

To be sealed (silicone)

5

=

Temperature probe

6

=

Relative humidity probe

7

=

HMP247CG, Cable gland AGRO (available from Vaisala)

NOTE

Let the cables hang loosely to prevent condensed water running to the
probe.
