Appendix A _________________________________ Probe Installation Kits and Installation Examples
VAISALA _______________________________________________________________________ 189
T- Probe Installations (HMT337)
0508-015

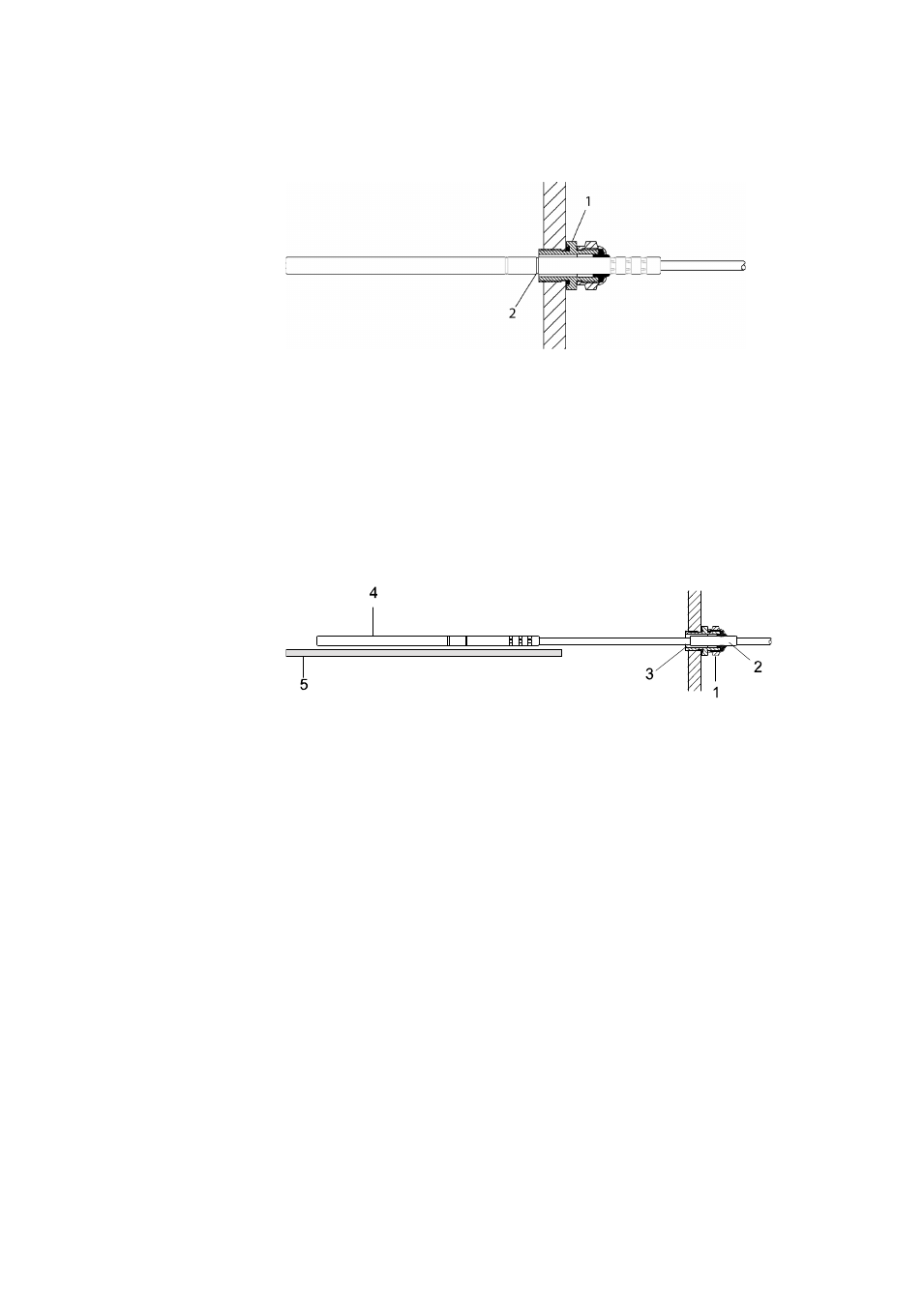

Figure 98
Vapor Tight Installation
Vapor Tight Installation is not available from Vaisala.
The following numbers refer to Figure 98:
1
=
Cable gland. For example AGRO 1100.12.91.065
(T= -25 ... +200 ºC)
2
=
In pressurized processes, use a locking ring
(example: 6x 0.7 DIN471)
0508-022
Figure 99
Wall Mounting Installation
Wall Mounting Installation is not available from Vaisala.
The following numbers refer to Figure 99:
1
=
Cable gland. For example AGRO 1100.12.91.065
2
=
Compacted PTFE sleeve
3
=
Silicon glue between the PTFE sleeve and the cable
4
=
Temperature probe
5
=
Recommended support to keep the probe in horizontal
position
