Chapter 3 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 31
0503-007

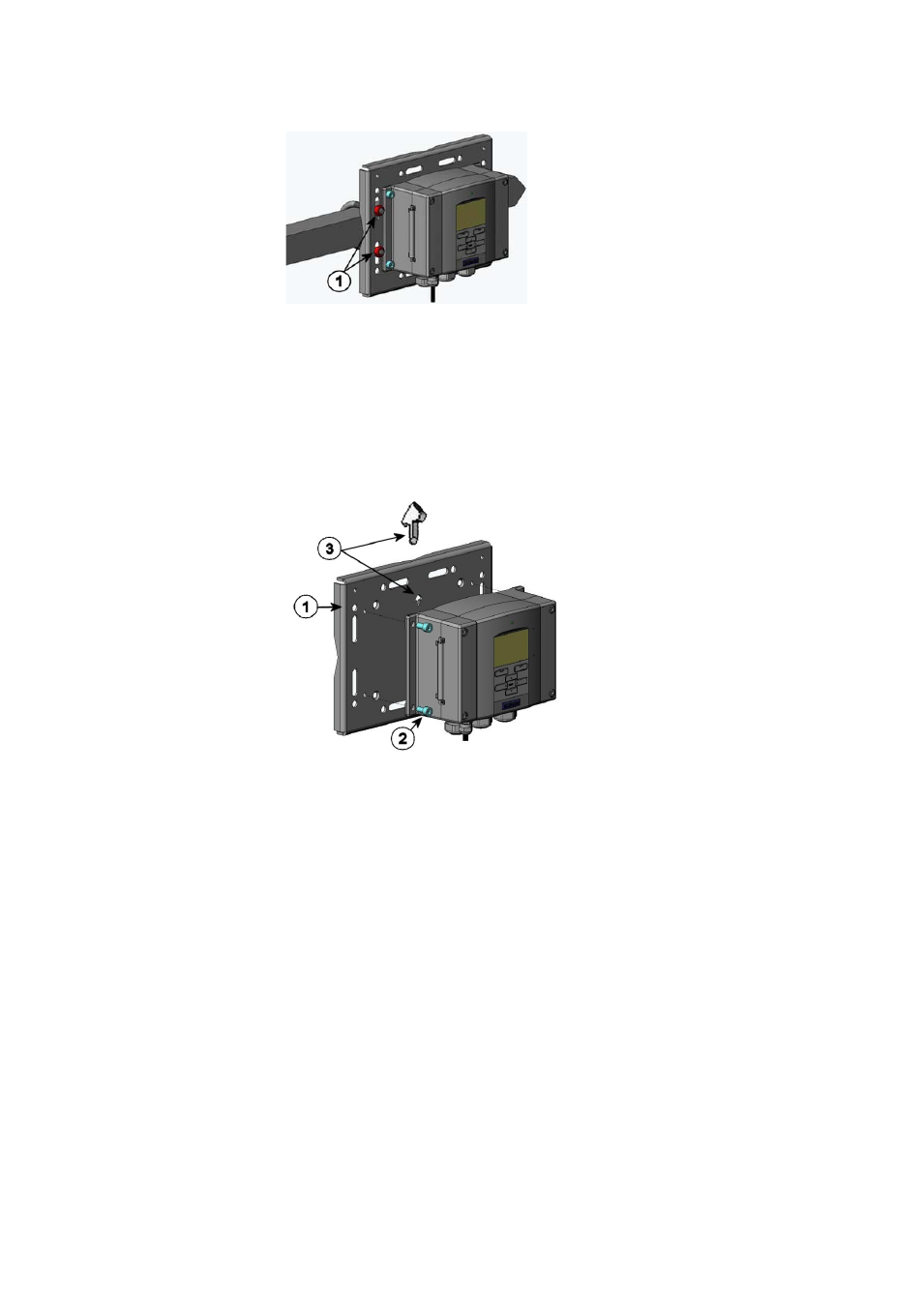

Figure 12
Horizontal Pole
The following number refers to Figure 12 above:
1
=
Mounting nuts M8 (4 pcs)
Metal mounting plate is included in rain shield with installation kit and
installation kit for pole or pipeline.
0503-041
Figure 13
Mounting with Metal Wall Mounting Plate
The following numbers refer to Figure 13 above:
1
=
Mount the plate to wall with 4 screws M8 (not provided)
2
=
Attach the HMT330 to the mounting plate with 4 fixing
screws M6 (provided)
3
=
Note the position of the arrow when mounting. This side
must be up when mounting.
