Dimensions (mm/inch), Figure 82, Transmitter body dimensions – Vaisala HMT330 User Manual
Page 182
User's Guide _______________________________________________________________________
180 __________________________________________________________________ M210566EN-K

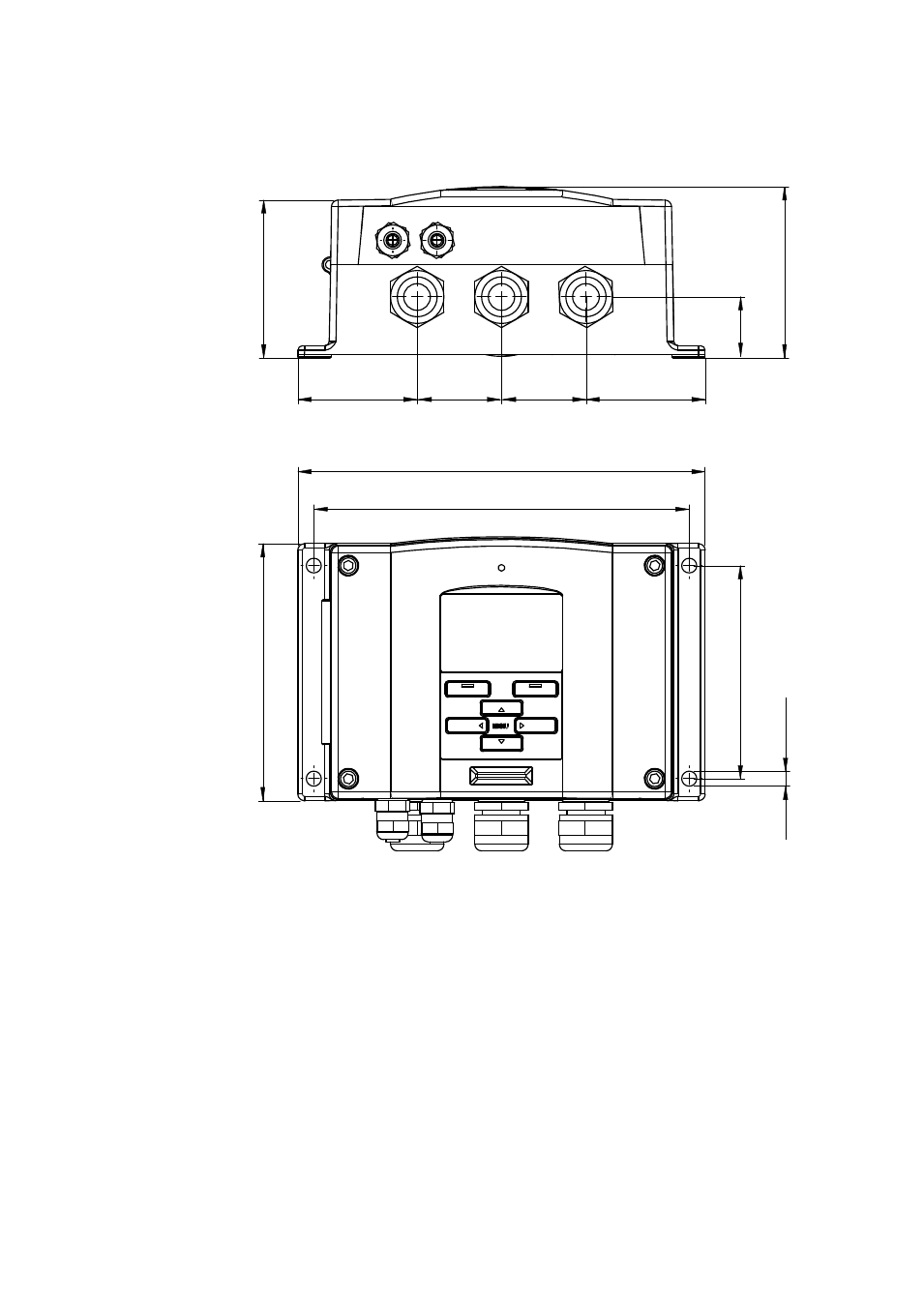

Dimensions (mm/inch)
0506-035
Figure 82
Transmitter Body Dimensions
183 (7.20)
169 (6.65)
116 (
4.57)
96 (
3.78)
ш 7 (
0.28)
71 (
2.80)
77 (
3.03)
27.
5
(1.
08)
38 (1.50)
38 (1.50)
53.5 (2.10)
53.5 (2.10)
