PFadvantage Cotton Yield Monitor
Ag Leader Technology General
September 2005 1-7
Area Count Switch The area count switch manually turns area counting on and off. When the
switch is in the up position area is counting. When the switch is in the
down position, area is not counting. The monitor will display either "AREA
ON" or "AREA OFF" on the bottom right corner of the display to indicate
the status of area counting.
Connectors The PFadvantage Cotton Yield Monitor has seven connectors on the bottom
side of the console. The large 25-pin connector is for power and sensor
connections. The four 9-pin ports (Port 1, Port 2, Port 3 and Port 4) are for
connecting a GPS receiver (Port 1) and as yet to be determined functions for
Ports 2, 3 and 4.

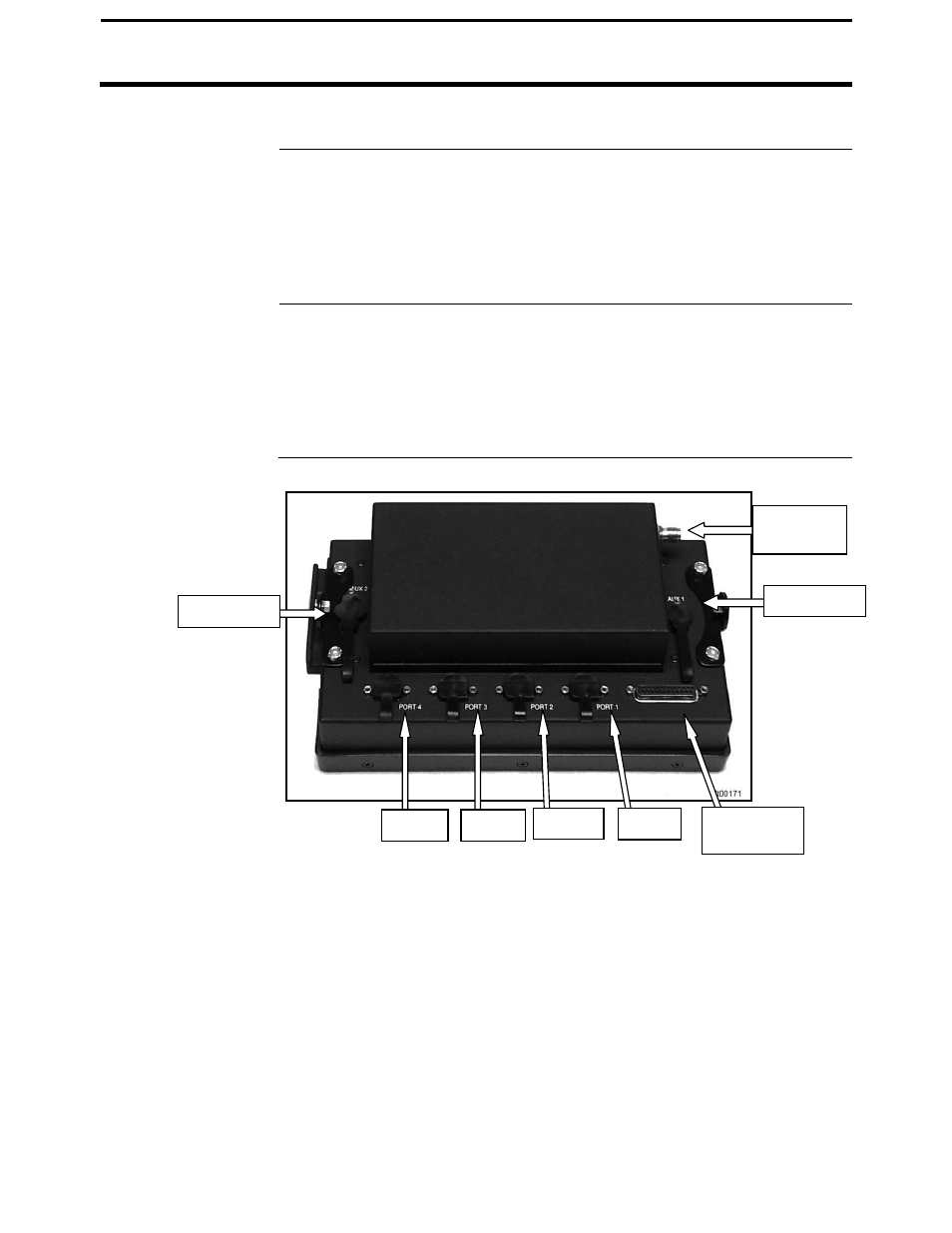

Figure 3. Rear of PFadvantage Cotton Yield Monitor
AUX Port 2
25-Pin
Connector
Port
1 Port 2 Port 3 Port 4
AUX Port 1
Antenna
Connector
