2.8

Recovery Manager Layout

3PAR Recovery Manager 4.1.0 For Microsoft Exchange 2010 User’s Guide

installation) and manage all virtual copies on the backup server. This type of configuration is

recommended if you need to manage multiple Mailbox Servers or are in a clustered

environment.

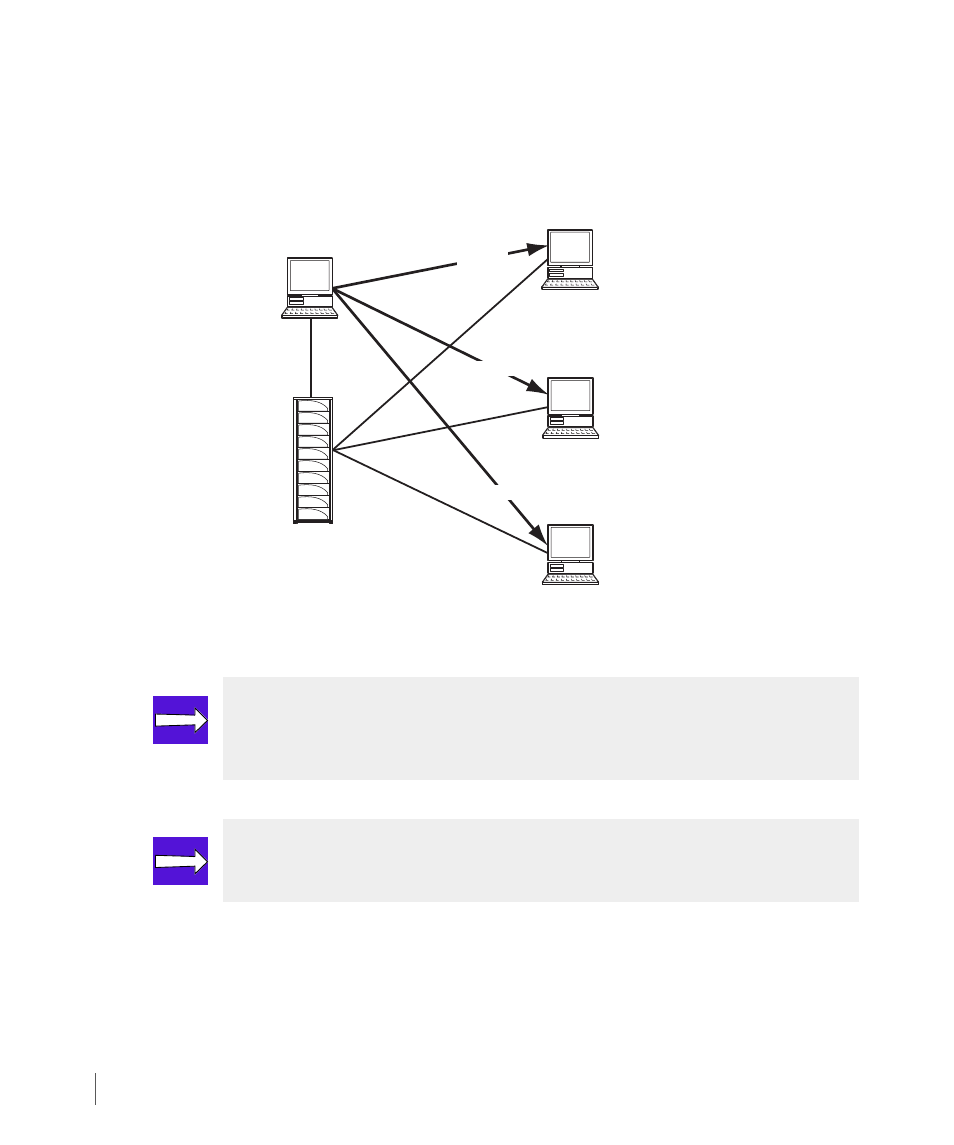

Figure 2-2. Centralized Backup Configuration

0775_L_R2

Mailbox Server 1

Mailbox Server 2

Mailbox Server 3

Backup Server

TCP/IP

InServ

NOTE: The Exchange System Management Tools is required on the Recovery

Manager Backup Server for validation purposes. In addition, the Mailbox Servers

and the Management Tools must have the same exact version.

NOTE: All Mailbox Servers, including the Recovery Manager Backup Server

component, must be in the same Windows domain.
