46
Power
Audio out
Parallel port
Audio in
Mute/Enable
notebook
speakers
Serial port
SCSI port
Joystick/
MIDI port
Mouse port
Keyboard port
VGA out
CD audio in
4. Replace the cable cover.

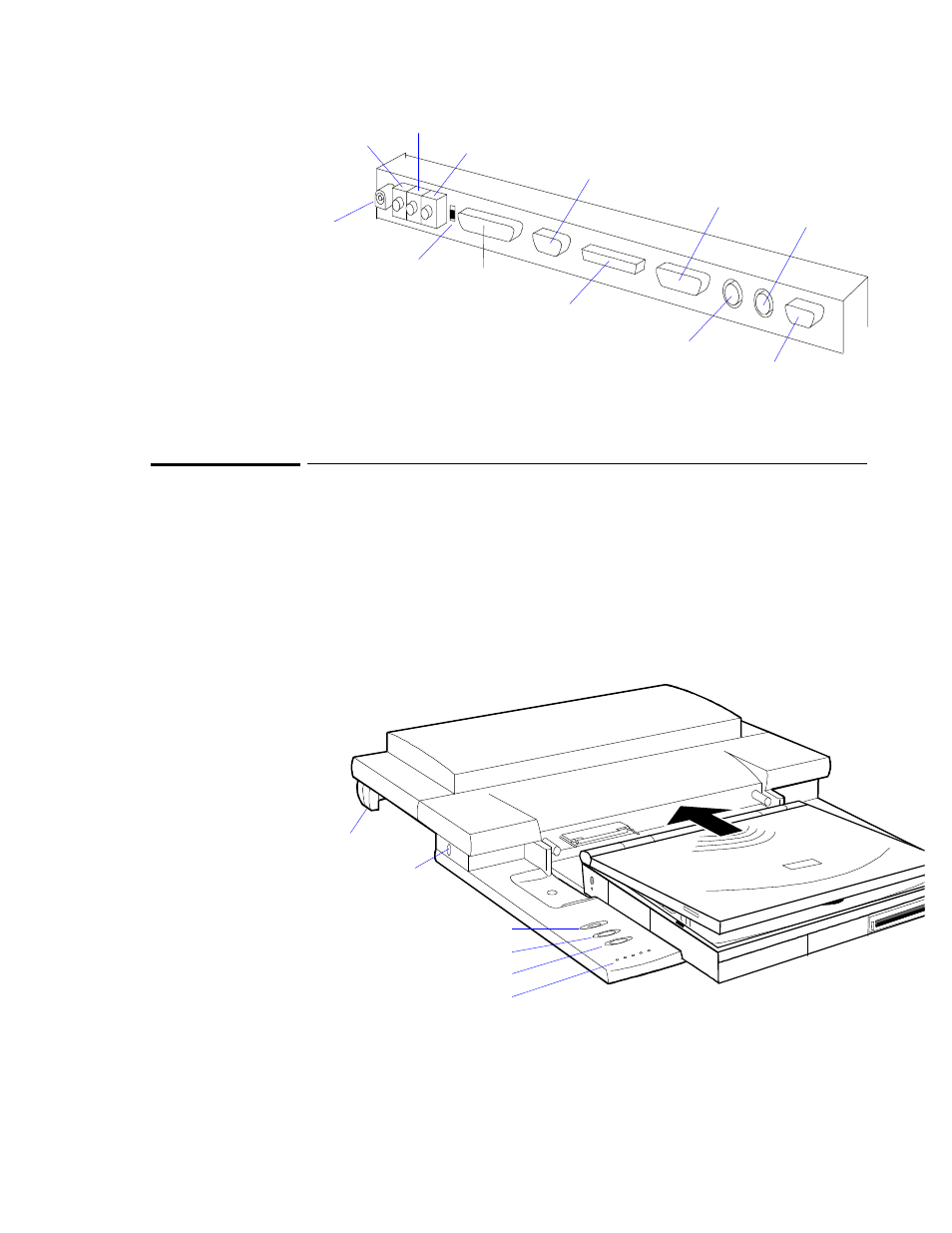

To dock your OmniBook
1. Prepare the OmniBook for docking:
a. Open the docking connector door and slide it underneath the docking connector.
b. Unplug the ac adapter.
c. Unplug all cables and close all doors, except the docking connector door.
d. Fold in the tilt feet.
2. Make sure the docking system’s adapter is plugged into the docking system.
3. Firmly push the OmniBook toward the docking pins until the docking system’s
motor pulls the computer into the dock.
Security cable
or manual eject
Reset button
On/Off button
Undock button
Tilt feet
Status lights
