Set up and Installation
If you renamed your server during the first software installation, remember to use that server name
instead of hpstorage. A shared folder name is required. The shared folder name cannot contain
spaces; type %20 instead of spaces. Additionally, you cannot connect to a shared folder name that
contains a hyphen.

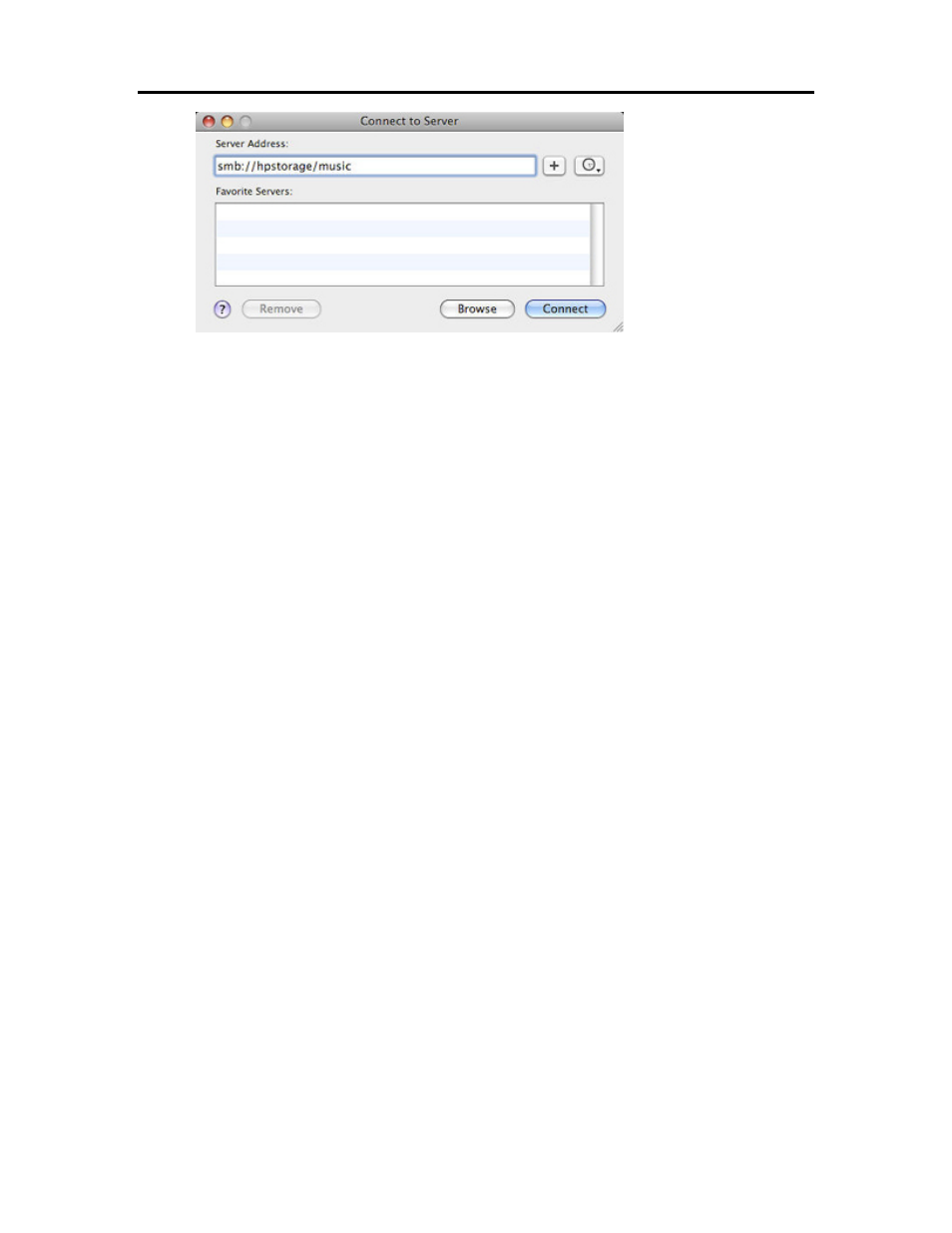

Connection Method C: Using Connect to Server and the Server's IP Address
The Mac computer may not recognize the server's name in some cases. If that happens, connect to
the server using its IP address instead of the server name. If you are unsure of your server's IP
address, you can log on to your
router to see a list of IP addresses for all network connected
devices.
To log on to your router, open an Internet browser window , type the router's IP address in the
address bar and press Enter. The router's IP address will be one of the following,
ƒ 192.168.1.1,
ƒ 192.168.0.1, or
ƒ Obtain your router's IP address from a Mac by selecting Apple menu > System
Preferences > Network. Select Built-in Ethernet on the left menu. The router IP
address is on the right side of the Network dialog.
