Graph display area
Shows graph panels.
Description Item
Shows the monitor period in the bottom left corner of this window. The first monitored time
and the latest time are shown. If Use Real Time is selected, the interval and the date of
last update are also shown. Monitoring Term
The following icon and the message are displayed while changing the configuration:
Graphs cannot be updated due to the configuration changing. Wait for a while.
Opens the Edit Time Range window where you can edit the time range for monitoring
statistics. Edit Time Range
Opens the Add Graph window to add a new graph. Add Graph
Related topics
•
“Deleting a graph” (page 24)

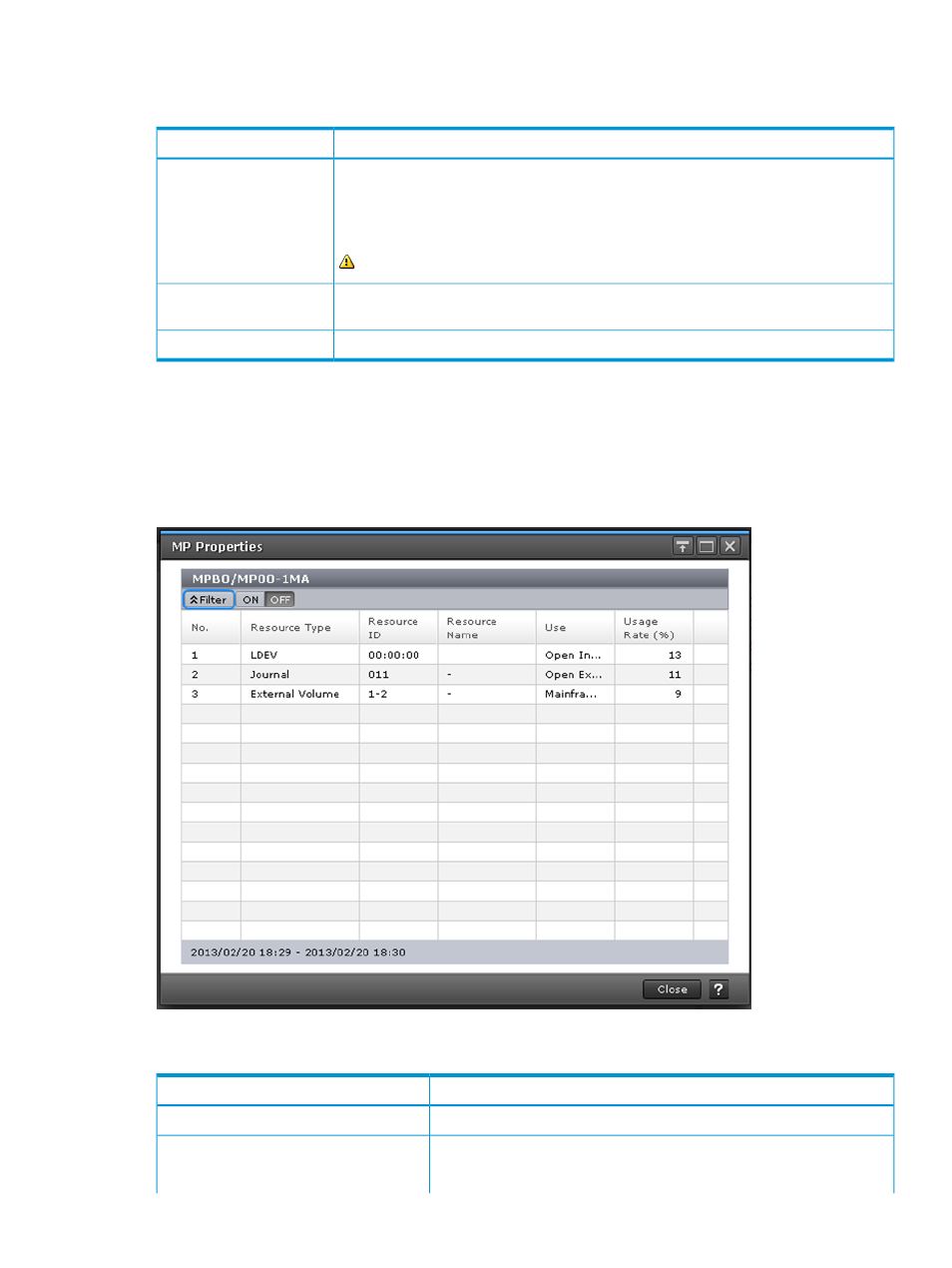

MP Properties window
Use this window to display the resources assigned to an MP blade of top 20 in usage rates.
MP names table
Description Item
Shows the order of high usage rates of resources. No.
Shows the resource type as follows: Resource Type
LDEV: Indicates an LDEV.
