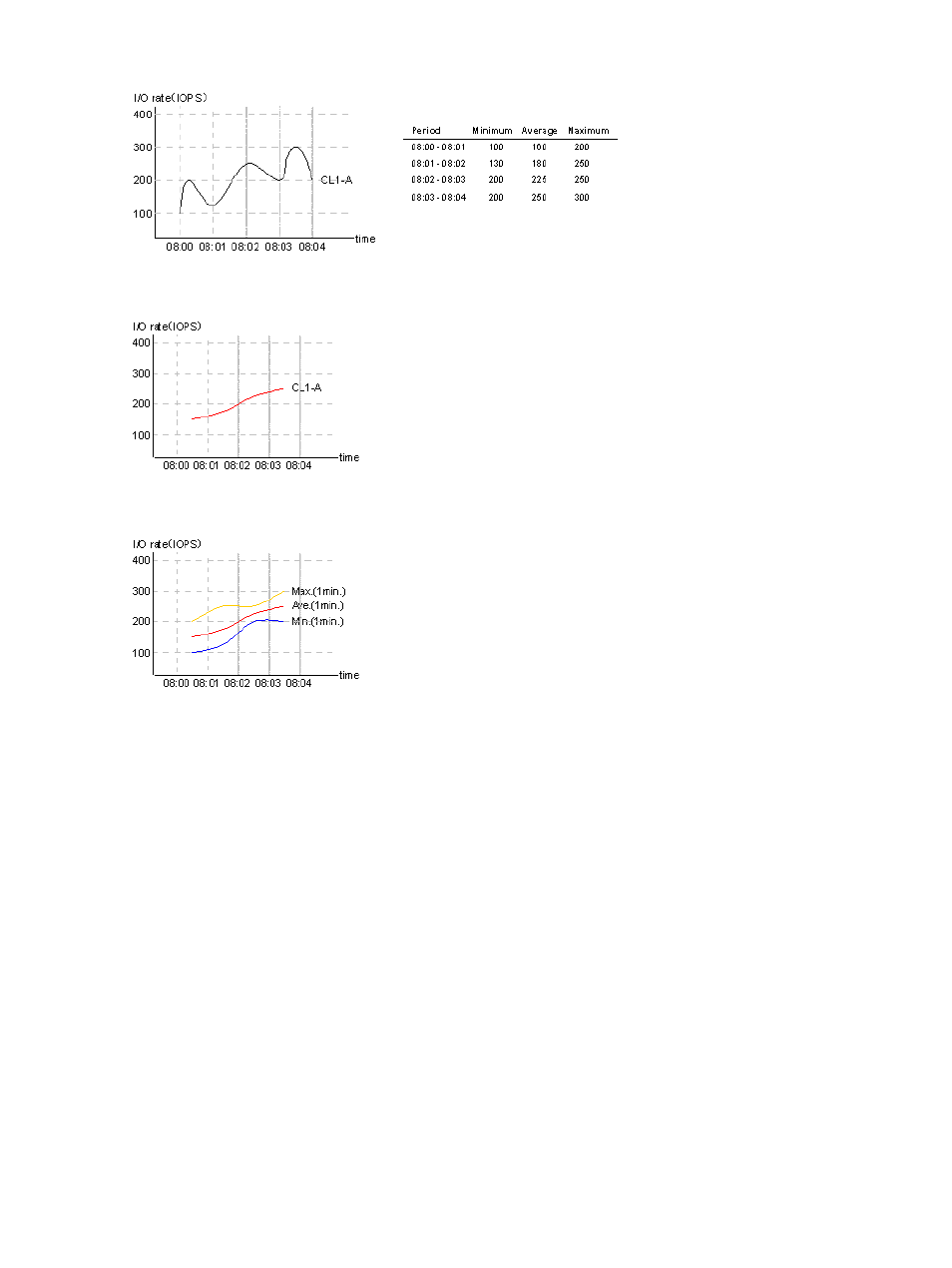

Figure 1 Graph 1: actual I/O rate (measured every second)
Figure 2 Graph 2: I/O rate displayed in Performance Monitor
Figure 3 Graph 3: detailed I/O rate displayed in Performance Monitor
Related topics
•
“Overview of Performance Control” (page 44)
Use cases for Performance Control
This section describes the use cases for implementing Performance Control on the HP XP7 Storage
system:
•
“Use case for one-to-one connections” (page 46)
•
“Use case for many-to-many connections” (page 48)
Use case for one-to-one connections
The following figure shows an example of a network, called Network A, in which each adapter
is connected to only one port on the storage system. The host adapters are connected directly to
the storage system ports and are not connected via hubs or switches.
