NOTE: The host group name will be indicated in up to 8 characters at the top of the graph if the
Normal Size command is clicked. To check the host group name, magnify the graph.
During the asynchronous copy operation, LDEVs that issue RIOs are not fixed. The number of RIOs
displayed is the total for all consistency groups. To specify the LDEVs, use Performance Monitor.
For further information on Performance Monitor, see the HP StorageWorks XP24000/XP20000
Performance Monitor User's Guide.
To stop displaying the usage monitor graph, right-click the graph, and click Close. To stop displaying
all graphs, click Close All. The usage monitor graph closes automatically in the following cases:
•
When you click another tab,
•
When you select another program product, or
•
When you exit the Remote Web Console software.

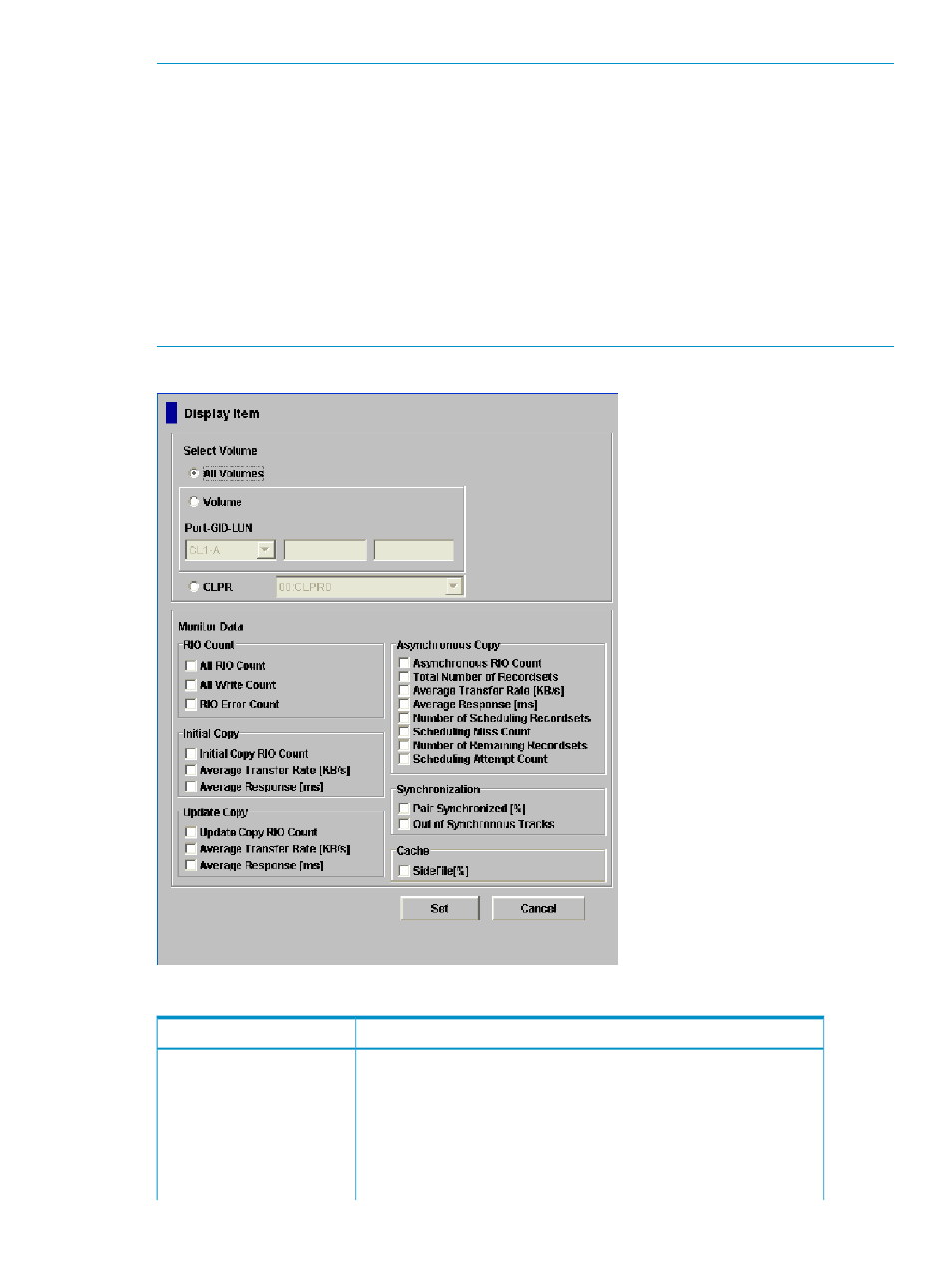

Figure 42 Selecting the Data for the Usage Monitor Graph
Table 28 Remote Copy I/O Statistics
Description Statistic
1
RIO count
Total number of remote I/Os. All RIO
count
Total number of remote write I/Os. All write
count
