Web-Based User Interface
Virtual Buttons
IMPORTANT: Only enclosure administrators can execute these commands.

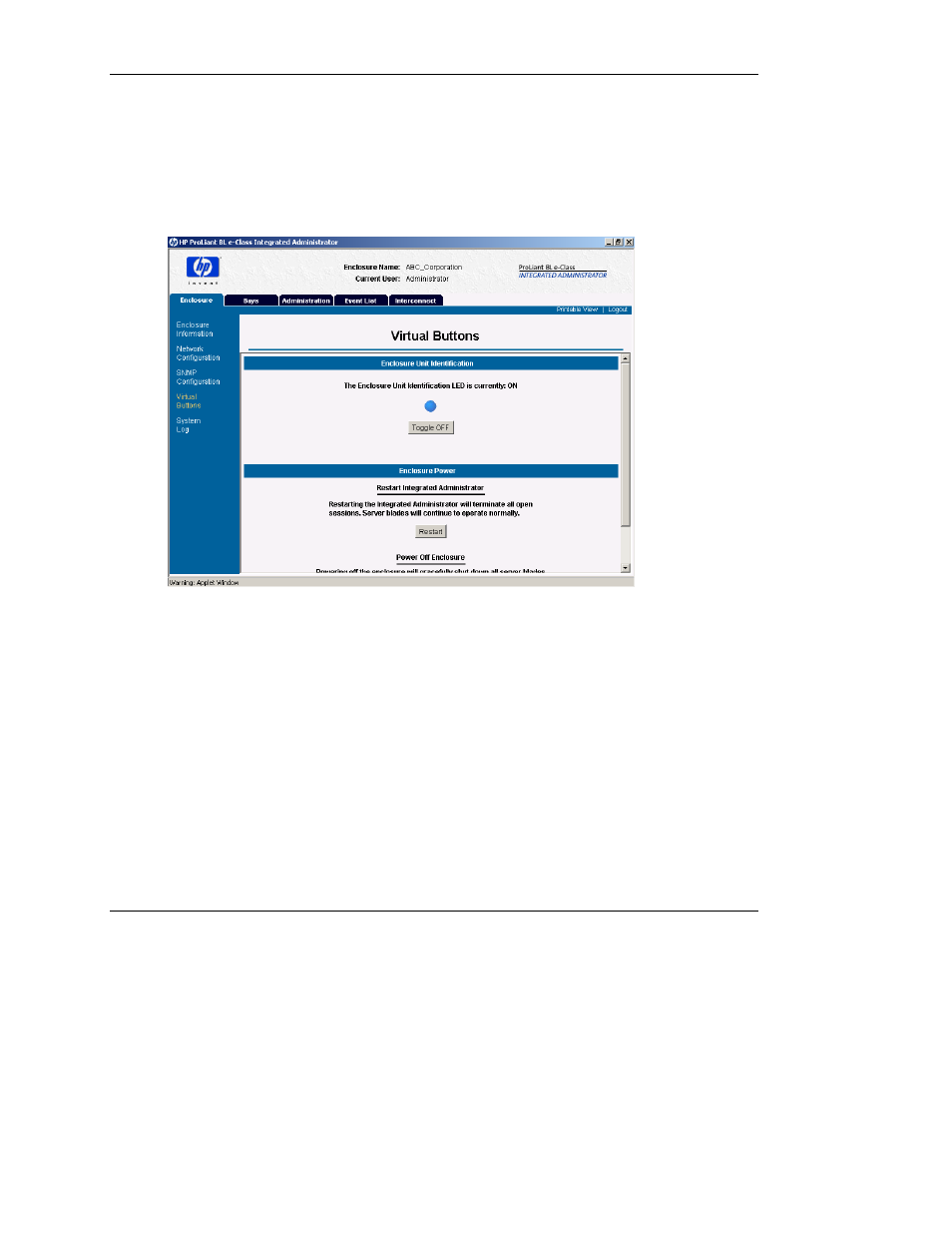

Figure 3-9 illustrates the information presented on the Virtual Buttons screen.
Figure 3-9: Virtual Buttons screen (Enclosure tab)
The Virtual Buttons screen enables an enclosure administrator to modify the power
state of the enclosure and Unit Identification LED from a remote location in order to
facilitate troubleshooting by technicians in the data center.
The Toggle On/Toggle Off button remotely changes the state of the enclosure Unit
Identification LED.
Figure 3-10 describes the information presented in the Enclosure Power area of the
Virtual Buttons screen:
HP ProLiant BL e-Class Integrated Administrator User Guide
3-19
