INTRODUCTION 1 - 4
■

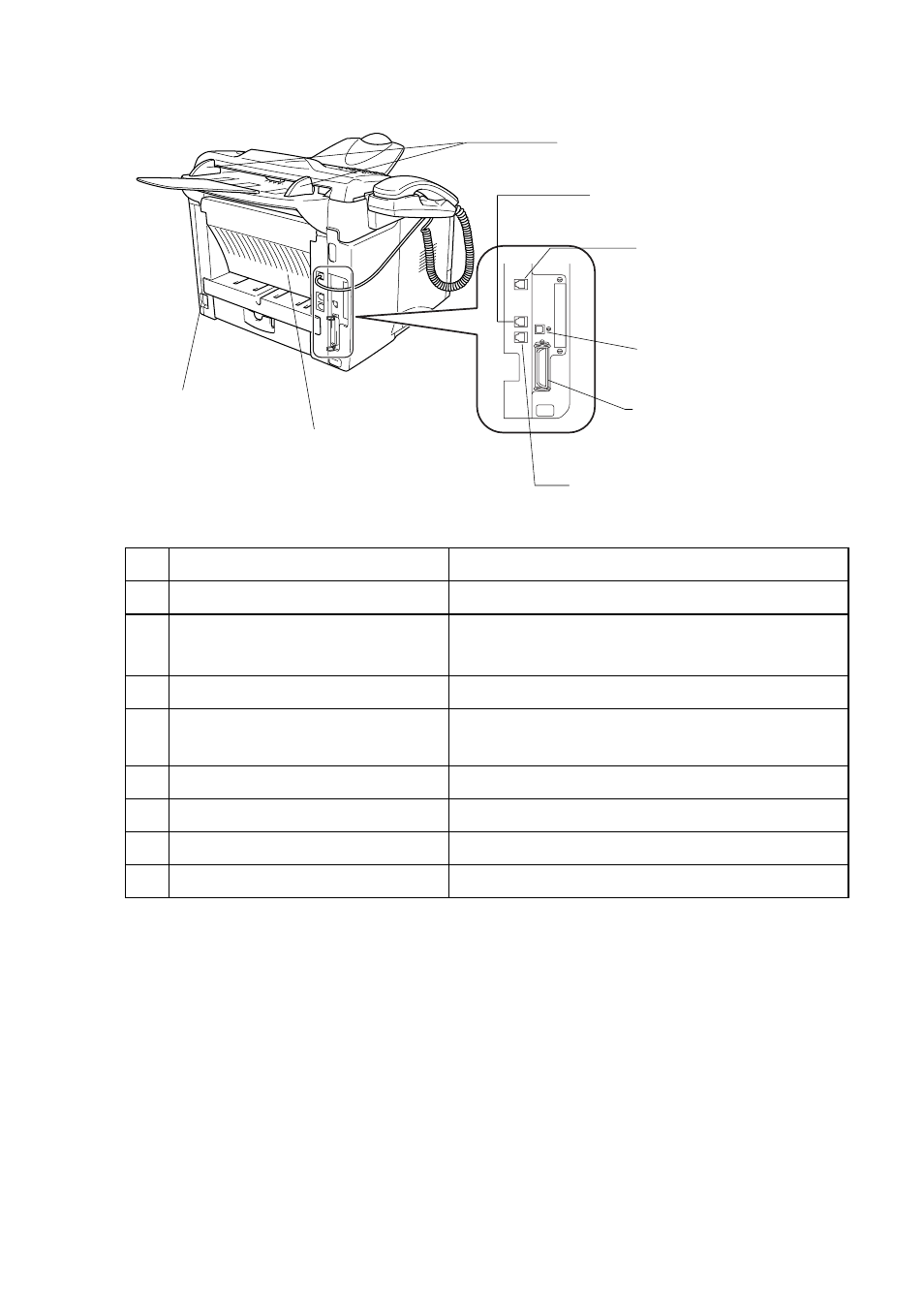

Back view
No. Name Description
11 AC Power Connector Connect the AC Power Cable here.
12 Face-up Output Tray
(Back Output Tray)
Open it when thicker paper is placed in the
Manual feed tray.
13 Paper Guides Use to fit the width of the document.
14 Telephone Line Jack Plug the line cord supplied with the MFC into
here.
15 Handset Jack Plug in the handset curled cord here.
16 USB Interface Connector Connect the USB Cable here.
17 Parallel Interface Connector Connect the Parallel Cable here.
18 External Telephone Line Jack Plug in the external telephone line here.
12 Face-up Output Tray
(Back Output Tray)
11 AC Power
Connector
13 Paper Guides
15 Handset Jack
16 USB Interface
Connector
17 Parallel Interface
Connector
18 External Telephone
Line Jack
14 Telephone Line Jack
