Your server at a glance—front panel – Apple Xserve G5 User Manual
Page 10
10
Chapter 1
Xserve G5 Overview

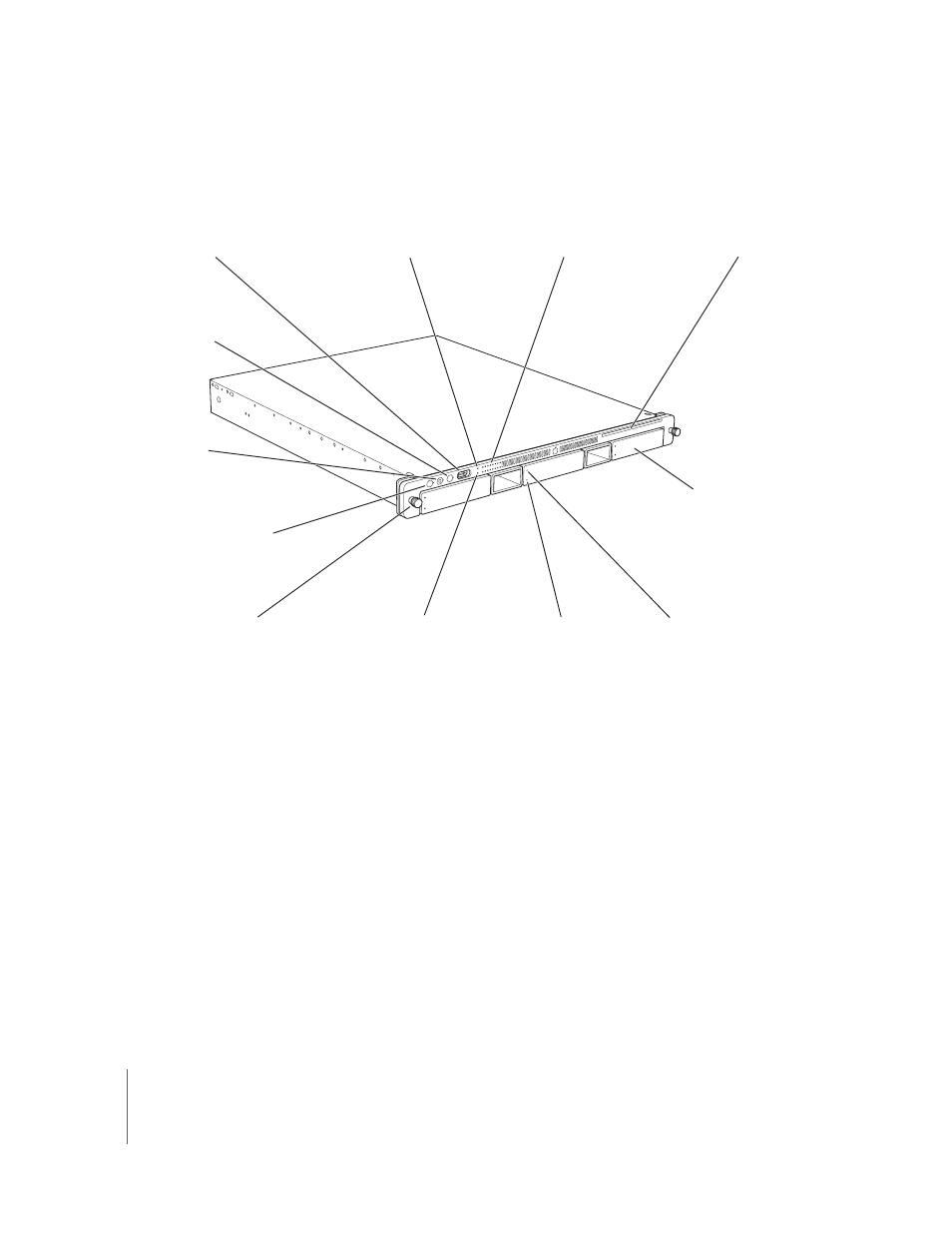

Your Server at a Glance—Front Panel
Securing thumbscrews (2)
Drive module status light
Drive module activity light
Optical drive
System identifier
button/light
Enclosure lock
and status light
FireWire 400 port
On/standby button and light
Apple Drive Module bays (3)
Built-in Ethernet link light (Port 2)
System activity lights
Built-in Ethernet link light (Port 1)
