8 User interface
8.1 Local display
In the versions with local display at the BM 70 A/P signal converter, configuration can be carried out
directly at the device. If a local display is not featured, the PC-CAT program (see Sect. 8.12) must be
used to change the parameter setting (assuming a communicable interface is provided).
Two variants of the display are available:
-
Standard display with 2-line LCD display (7 mm high digits for the measured value).
- Jumbo display with single-line LCD display and 16 mm high digits for the max. 5-digit measured
value (restricted user friendliness for parameter setting, because 2nd line not visible).

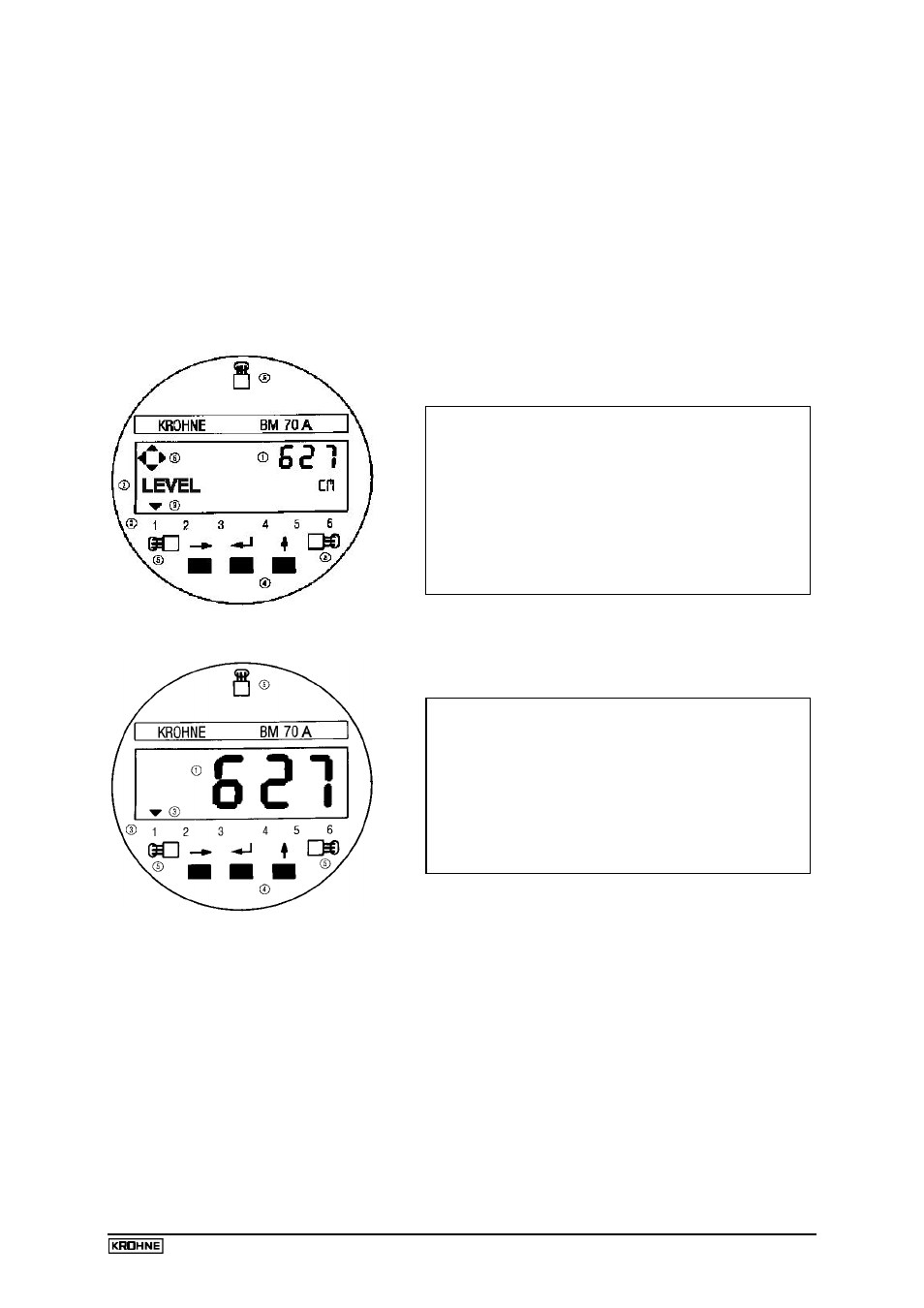

Standard display
•
Numerical display of measured value
‚
Alphanumeric display of function/unit
ƒ
6 markers to indicate measuring status
„
3 keys for configuration and error inquiry
…
magnetic sensors for control through the closed
housing (function same as the 3 keys)
†
Compass field, signals actuation of a key
Jumbo display
•
Numerical display of measured value (5 places)
ƒ
6 markers to indicate measuring status
„
3 keys for configuration and error inquiry
…
magnetic sensors for control through the closed
housing (function same as the 3 keys)
