Installation and operating instructions BM 70 A/P Page: 29 11/00

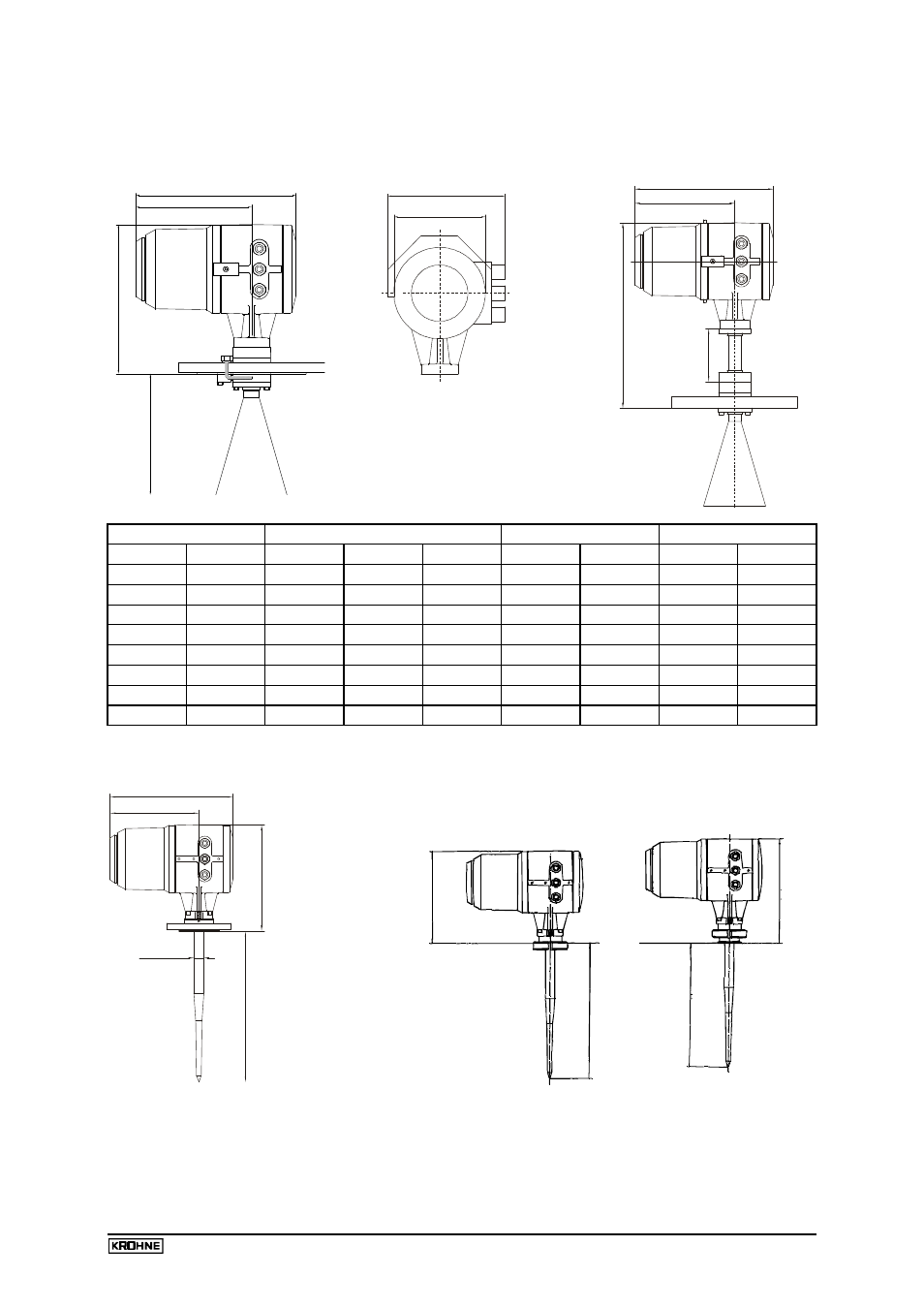

7.2 Dimensions and Weights
Basic version: High-temperature version:
Meter size Standard antenna Lenght* Weight
DN ( mm) ANSI (") Typ ØA ( mm) ØA (") f ( mm) f (") kg lb
80 3 1 80 3,15 110 4,33 17 37,48
100 4 2 100 3,94 148 5,83 18 39,68
150 6 3 140 5,51 223 8,78 23 50,71
200 8 4 200 7,87 335 13,19 30 66,14
80 3 1s 76 2,99 420 16,54 18 39,68
100 4 2s 100 3,94 620 24,41 19 41,89
150 6 3s 152 5,98 820 32,28 25 55,12
200 8 4s 200 7,87 820 32,28 32 70,55
* Hastelloy: + 30 mm (1.12”)
Wave-Stick: Wave-Stick with hygienic connections:
(DIN 11851 "dairy") (with adapter for Tri-Clamp)
292
351
384
260
Options:
Tri-Clamp 2", 3", 4"
SMS 51 mm, 63 mm, 76 mm
DIN 11851 (dairy)
DN 50, DN 65, DN 80 Flange size dia. A in mm (inches) Weight in kg (lb)
DN 50 / ANSI 2" 100 (3.94) 16 (35.27)
ANSI 3" 127 (5.0) 17 (37.5)
DN 80 138 (5.43) 17 (37.5)
DN 100 / ANSI 4" 158 (6.22) 18 (39.7)
DN 150 / ANSI 6" 216 (8.5) 23 (50.7)
214 (8.42")
176 (6.89")
313 (12.32")
226 (8.89")
313 (12.32")
226 (8.89")
420 (16.54")
f
L
313 (12.32")
226 (8.89")
Ш25 (Ш0.98")
L = 384 mm Standard
500 – 1000 mm optional
60 mm Typ SW
