8
TECHNICAL DATA
76
BM 26 BASIC/ADVANCED
www.krohne.com 10/2012 - 4000347004 - HB BM26 Basic/Adv R04 en
8.9 Guidelines for maximum operating pressure
Make sure that the devices are used within their operating limits. Observe the following
requirements:

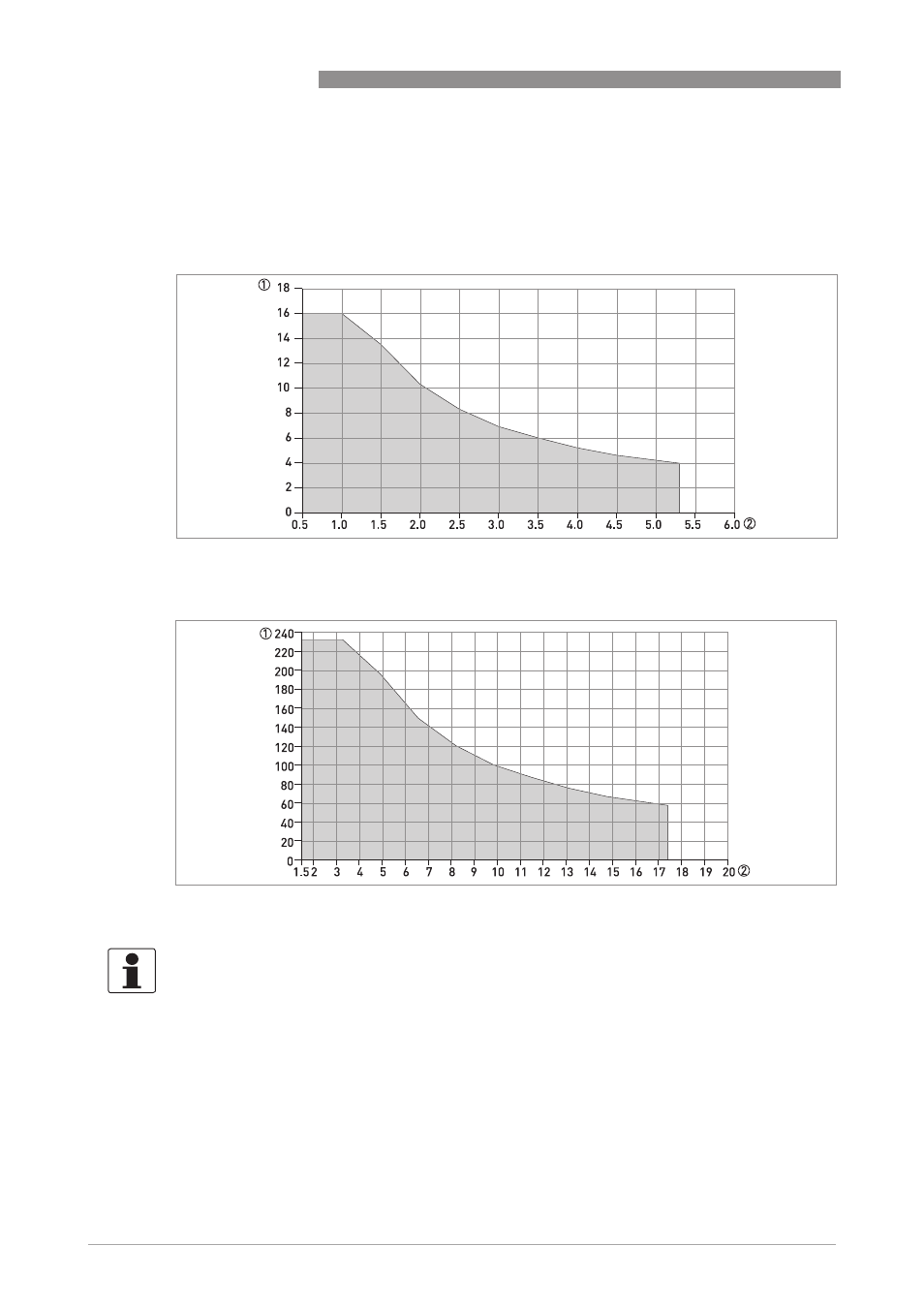

Pressure derating chart for the Basic version in barg
1 Process pressure, P [barg]
2 Length of the indicator, L [m]
Pressure derating chart for the Basic version in psig
1 Process pressure, P [psig]
2 Length of the indicator, L [ft]
INFORMATION!
The EU Pressure Equipment Directive does not apply to the use of the BM 26 Basic.
