TECHNICAL DATA
60
BM 26 BASIC/ADVANCED
www.krohne.com 10/2012 - 4000347004 - HB BM26 Basic/Adv R04 en
Note: Note: Note: Note:
• C-C = Face-to-face length (process connections)
• ML = Measuring length
• L = Overall length
• a = bottom dead zone; b = top dead zone
Basic version: Axial / Axial process connections

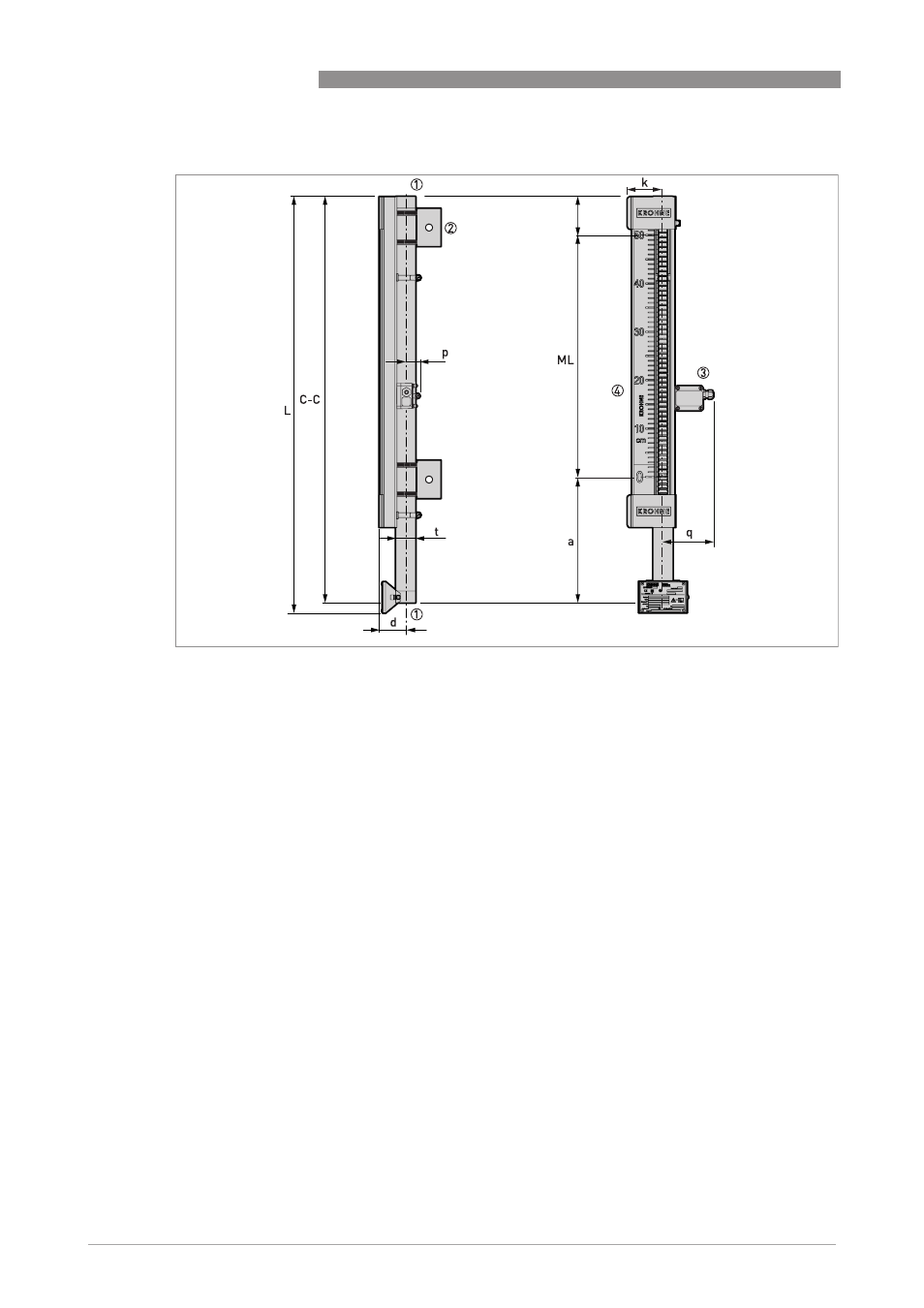

Figure 8-3: Axial / Axial process connections
1 3/8 NPT threaded connection
2 Optional support bracket - also refer to "Support bracket option: Dimensions and weight"
3 Optional limit switch
4 Level indicator with optional scale
