See figure 2-12) – KEPCO BOP 1KW-MG Operator Manual, Firmware Ver.4.12 and higher User Manual
Page 63

BOP HIPWR 031014
2-25

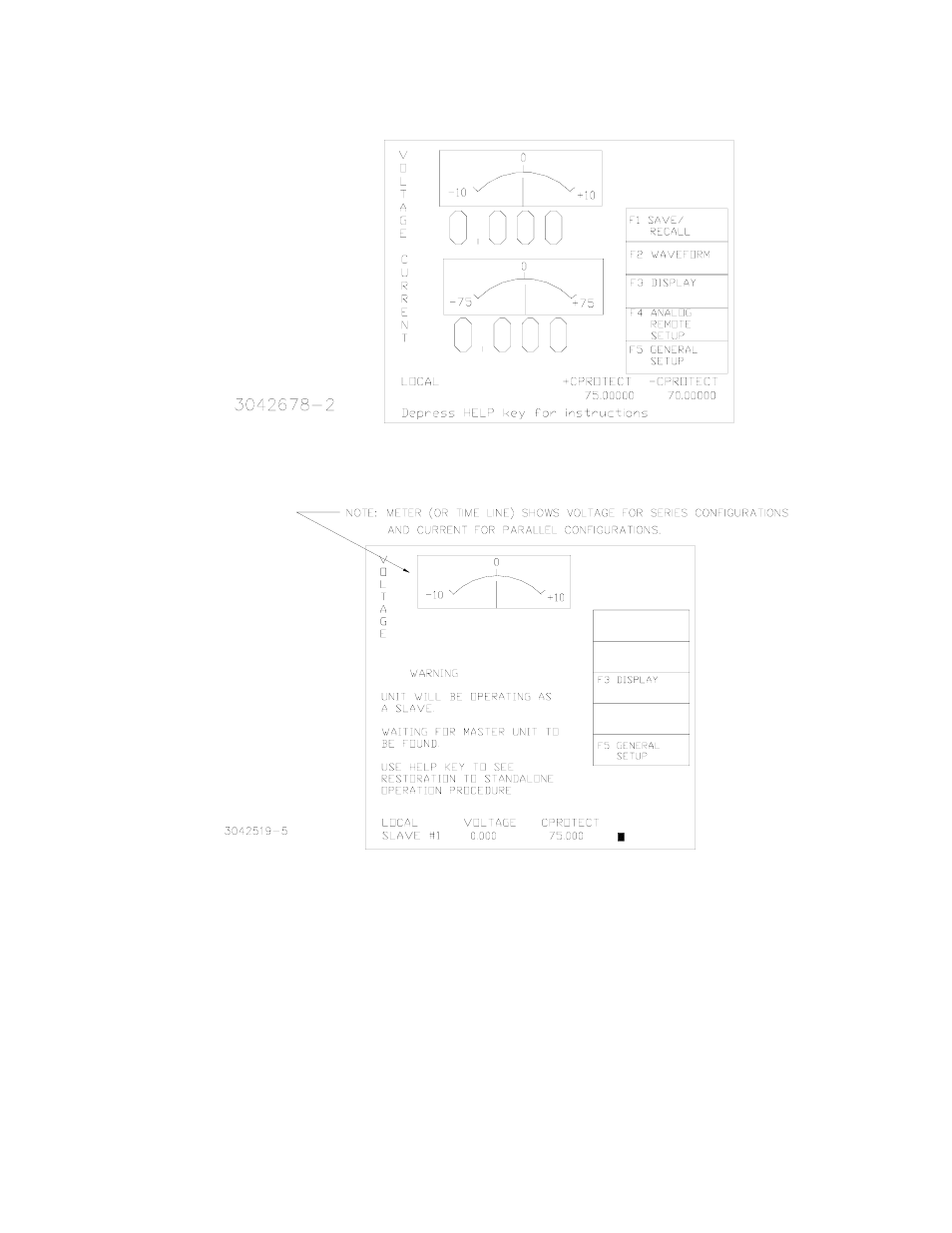

FIGURE 2-11. POWER ON DEFAULT SCREEN FOR MASTER UNIT
FIGURE 2-12. POWER ON DEFAULT SCREEN FOR SLAVE UNIT
2.8.6
OPERATING INSTRUCTIONS FOR MULTIPLE UNIT COMBINATIONS
1. Apply power to the multiple units. If the master is in STANDBY, depress STANDBY key on
the master to apply power to the output terminals. (To power down the combination, first
press STANDBY key on the master to disable the output, then turn off the slaves, followed
by the master.
2. When the units of a multiple unit combination are first turned on there is a brief delay until all
units are communicating over the BITBUS to form the combined assembly.
VOLTAGE
SOURCE
VOLTAGE
SOURCE
0.0000
