BOP HIPWR 031014

2-13

2.7.2

SETUP FOR LOCAL OPERATION

With all power off, connect the load to the BOP using either local or remote sensing (refer to
PAR. 2.5). If units are to be connected in series or parallel, refer to PAR. 2.8.) Then refer to PAR.
3.2 for power supply basics and local operation. The factory default configuration allows local
operation with no further setup required.

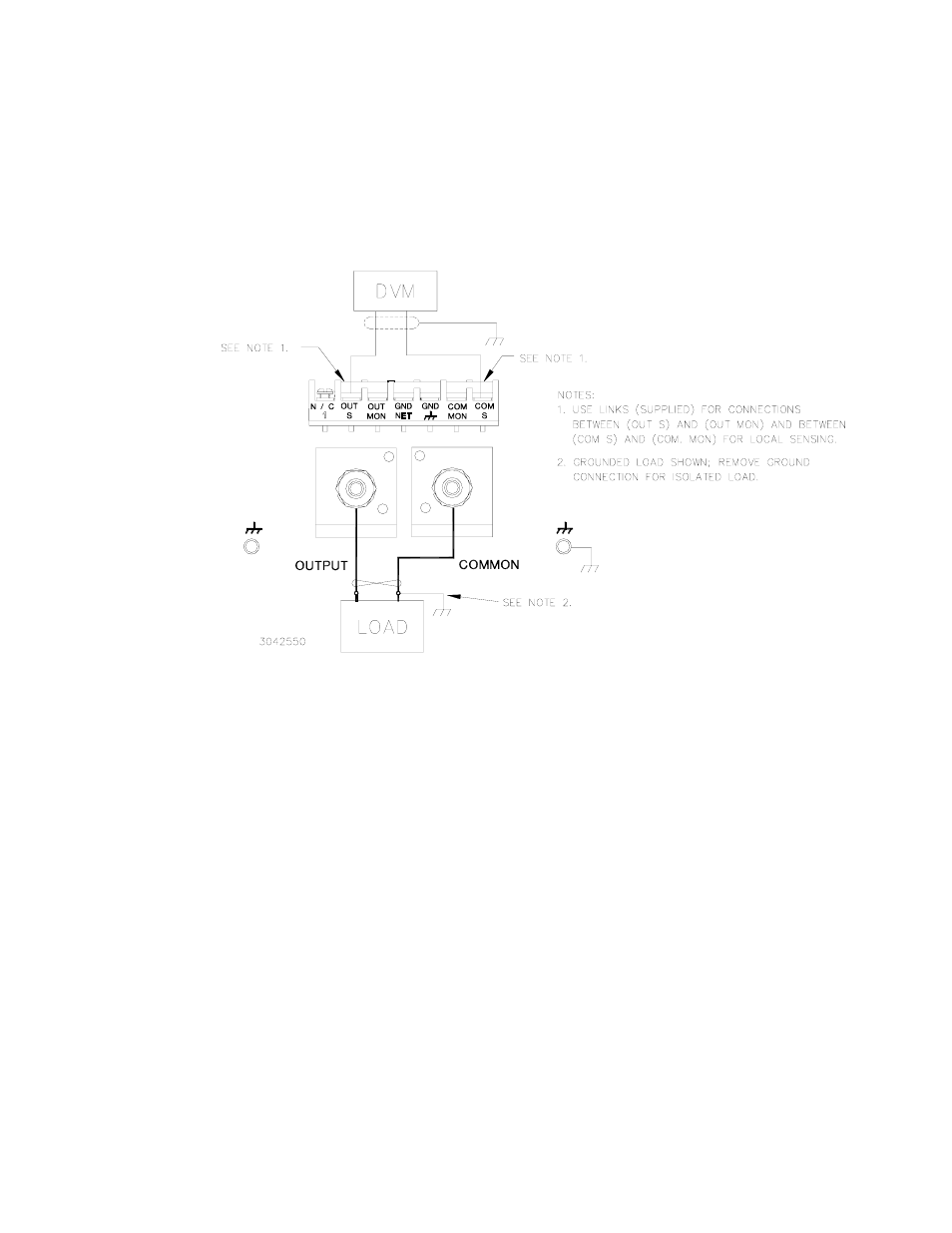

FIGURE 2-3. LOAD CONNECTIONS, LOCAL SENSING
