BOP-1K 031014
4-5
b. MAX and MIN Calibrations. The primary means of adjustment is the
CAL:DATA
command to either increase (
CAL:DATA 1
) or decrease (
CAL:DATA -1
) the output value.
Adjustment can be done in larger increments by increasing the numeric value, e.g.,
CAL:DATA +10
or
CAL:DATA -10
. Adjust the output to obtain the closest value above the full
scale value.
c. VPR and CPR Calibrations. The only means of adjustment is the
CAL:DATA
command which provides a total of 4095 increments of adjustment from zero to maximum.
Adjust the output to obtain the closest value above the full scale value.
4.3.1 CALIBRATION PROCEDURE USING SCPI COMMANDS
The following procedure provides a complete calibration of the unit. Steps 17 and 18 calibrate
the control signal used when the unit is a slave in series configurations. Steps 28 and 29 cali-
brate the control signal used when the unit is a master in parallel configurations. Steps 31 and
32 calibrate the control signal used when the unit is a slave in parallel configurations. There is
no need for a special calibration step when the unit is used as a master in series configurations
since the BOP output voltage (which is calibrated by this procedure) is used to control the next
unit in series.
NOTES: 1. For ZERO calibration, adjust output to obtain value closest to zero.
2. For FULL SCALE calibration adjust the output to obtain the closest value above
the nominal full scale value.
3. Set the unit for local sensing with GND Network in (see Figure 4-1) and discon-
nect load from BOP output to prepare the unit for voltage calibration.

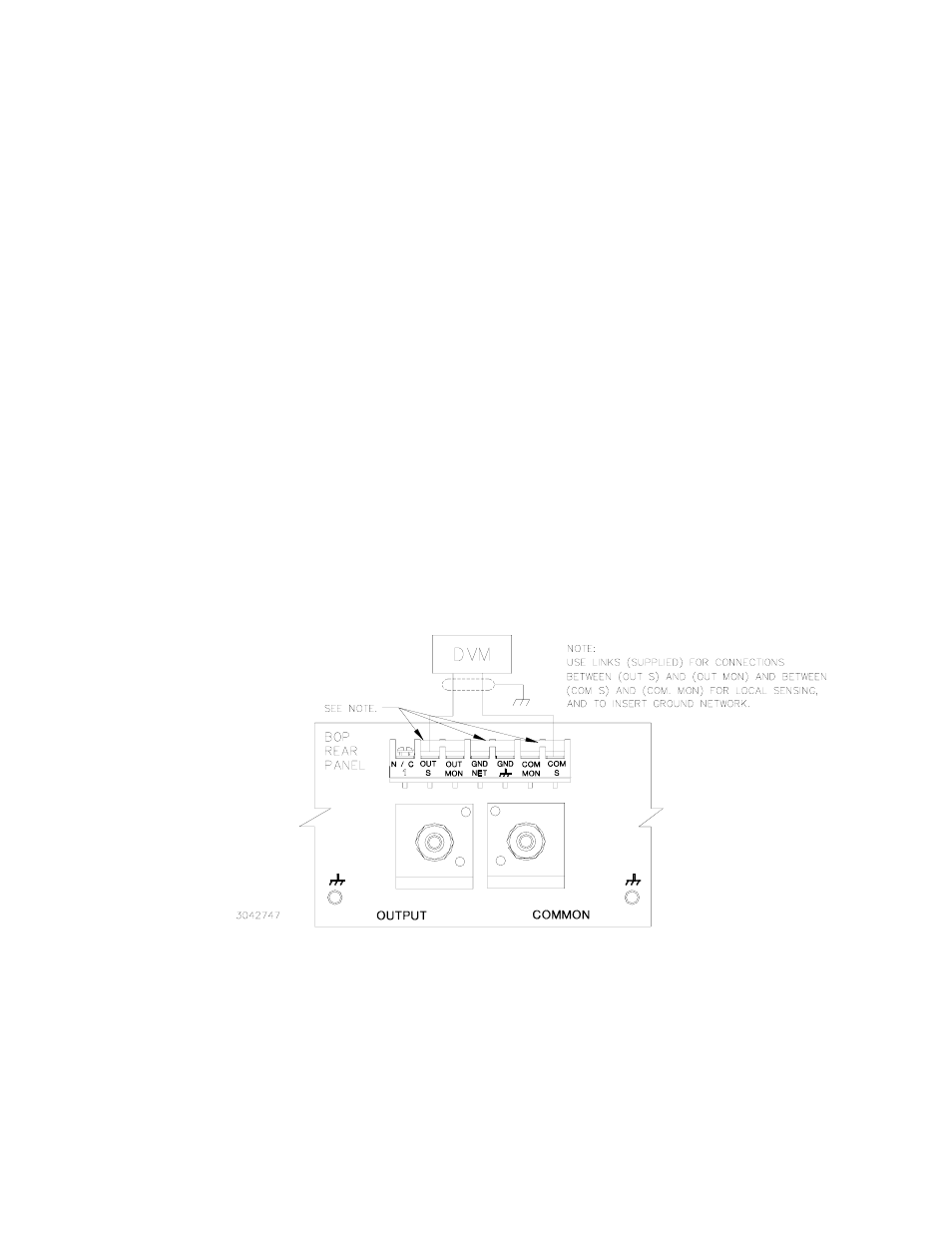

FIGURE 4-1. CALIBRATION SETUP FOR VOLTAGE MODE
1. Initiate calibration by sending the SCPI command
SYSTem:PASSword:CENable DEFAULT
and then send
CAL:STATe 1
. The password
DEFAULT
has been set at the factory. If the
password has been changed from
DEFAULT
, substitute the correct password for the unit in
the
SYST:PASS:CEN
command. If the password has been lost, consult factory.
