Manual No. 4801-3001 Rev 7-08

Secondary Sensing System Expansion

9 of 46

5.1.4 Low

Limit

The Low Alarm Temperature is the low temperature at which the controller will indicate an alarm
condition. The Low Alarm Temperature is displayed and can be changed using Zone Input Switches
(Zones 1, 2, or 3) then using the Plus (+) or Minus (–) buttons.
The Low Back-Up Limit is the low temperature at which Heat of the Back-Up will turn ON.
See Section 9 (Back-Up Operating Conditions). The Low Back-Up Temperature is displayed and can be
changed (1.0° increments) using the Select Button then using the Plus (+) or Minus (–) buttons.

NOTE: The High & Low Limits for the temperature sensors can be set individually or can be

programmed to be identical using program parameter P2 (See Section 6).














5.1.5 Status

The Status Mode displays the Sensor Status (ON or OFF) for each specific zone. This setting is used to
remove unused sensors or to deactivate sensors outside of the brood area during ½ or ¾ brood conditions.
Use the Zone Switches for selecting the specific Zone Temperature Sensor then using the + (ON) or –
(OFF) buttons
to enable or disable sensors.











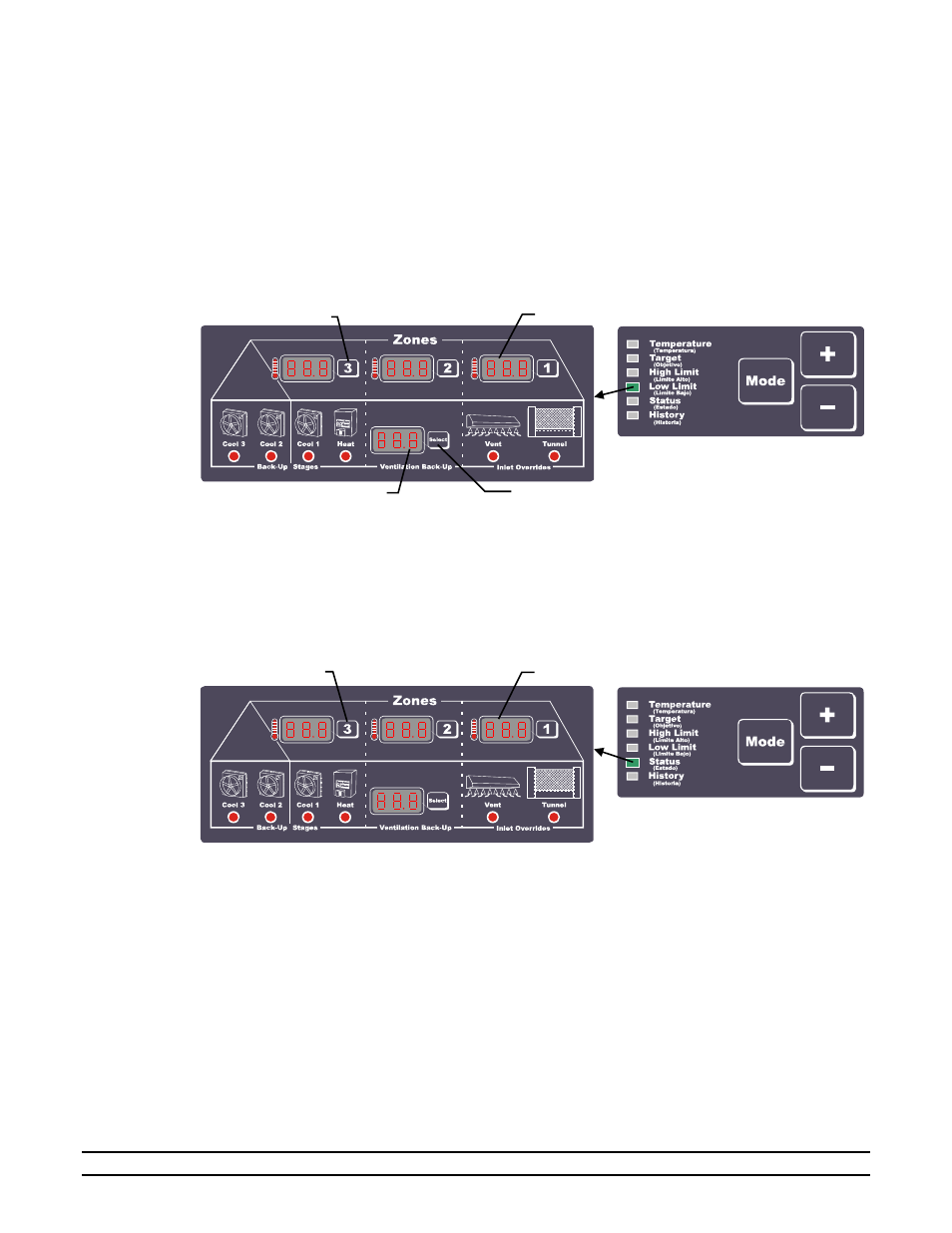

Low Back-Up Limit Temperature

Low Alarm Limit Temperatures for Specific Zones

Zone Input Switches

Select Switch

Status for Specific Zones

Zone Switches
