Manual No. 4801-3001 Rev 7-08

Secondary Sensing System Expansion

6 of 46

Alarm Status

Section

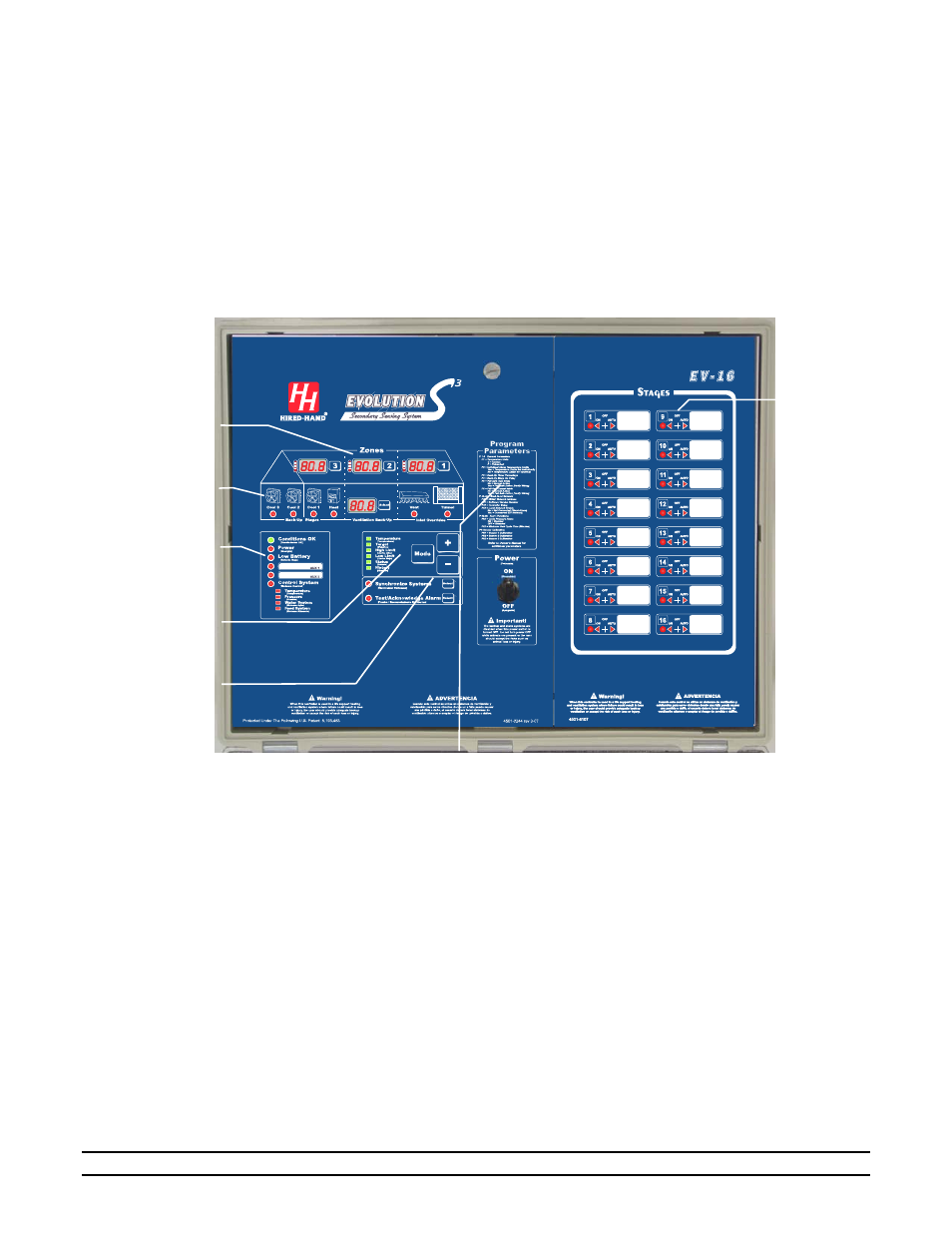

Secondary Sensing System Front Panel

Power

Switch

Zone

Temperature

Section

BackUp

Section

Synchronize

/ Test

Section

Control / Editor

Section

Stage switches
(ON, OFF,
AUTO)

'Stage On'
Indicators

White spaces
are for stickers
to identify stage
operations

5. S

3

Expansion Front Panel

The S

3

Expansion is divided into two areas. On the left is the Main Control Panel. On the right are the Stage

Switches.
The S

3

Expansion Main Control Panel has six sections on the faceplate. These are the Zone Temperature Section,

the Back-Up Section, the Control / Editor Section, the Synchronize / Test Section, the Alarm Status Section, and the
Power Switch. The Power Switch is located in the lower-center of the control box as shown below. The switch
controls power to the S

3

controller and to the back-up battery.
