Hired-Hand Emergency Back-Up and Alarms: Secondary Sensing System Expansion User Manual
Page 39
Manual No. 4801-3001 Rev 7-08
Secondary Sensing System Expansion
39 of 46
13.12 Connecting Other Hired-Hand Controllers to the S
3
Expansion Auxiliary Input

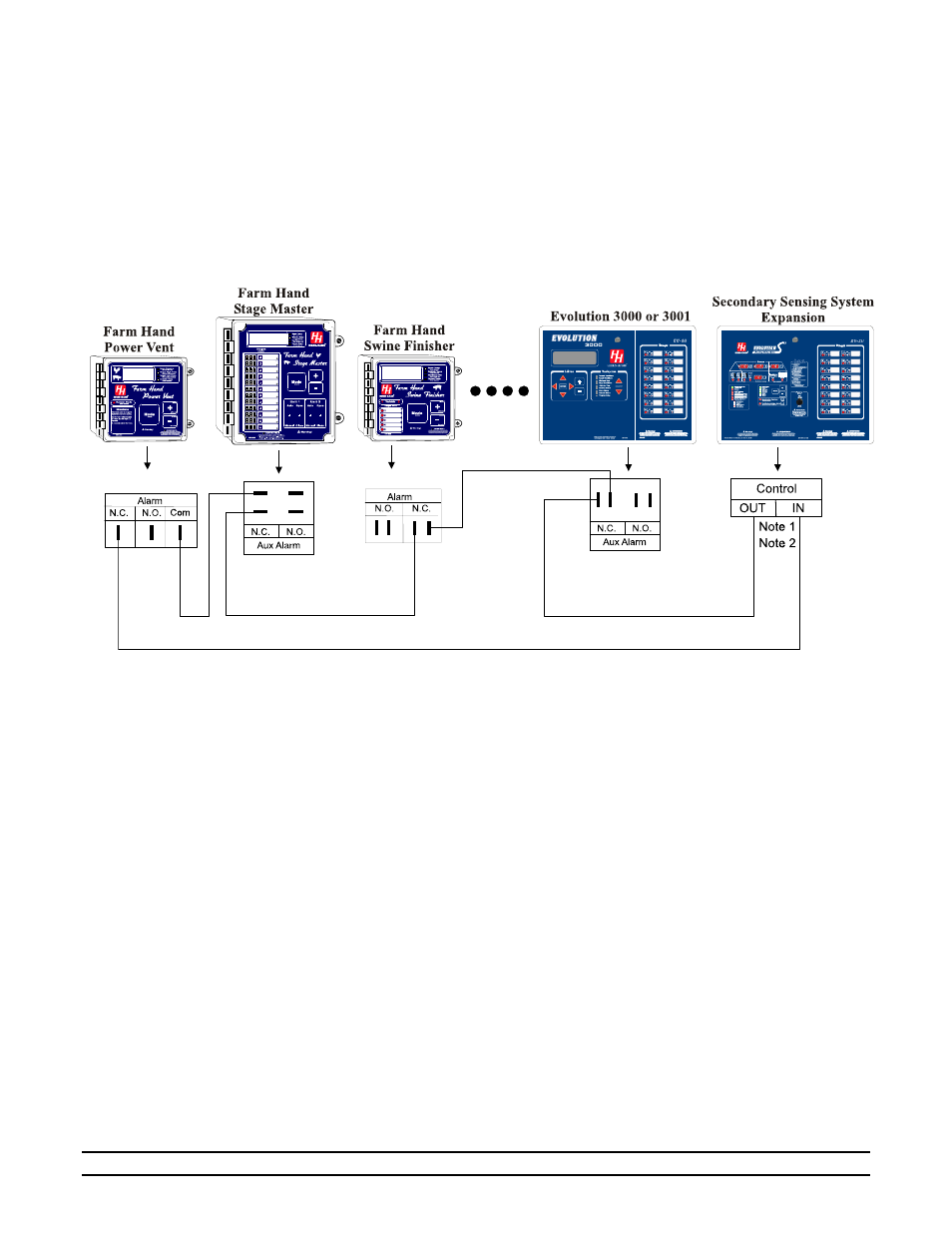

The diagram below shows the proper way to connect the Hired-Hand family of auxiliary alarm
outputs to the
S
3
Expansion auxiliary inputs. The alarm activates when the connection is broken
between the OUT and IN terminals.
NOTE 1: As long as a path for current flow is present, the Secondary Sensing System is not
activated. Consequently, if one controller alarms, the path will be broken and the
alarm will be activated.
NOTE 2: Remove the jumper between the OUT and IN terminals when installing external
alarm inputs.
