Secondary Sensing System Expansion

13 of 46

5.3

Back-Up System Indicators

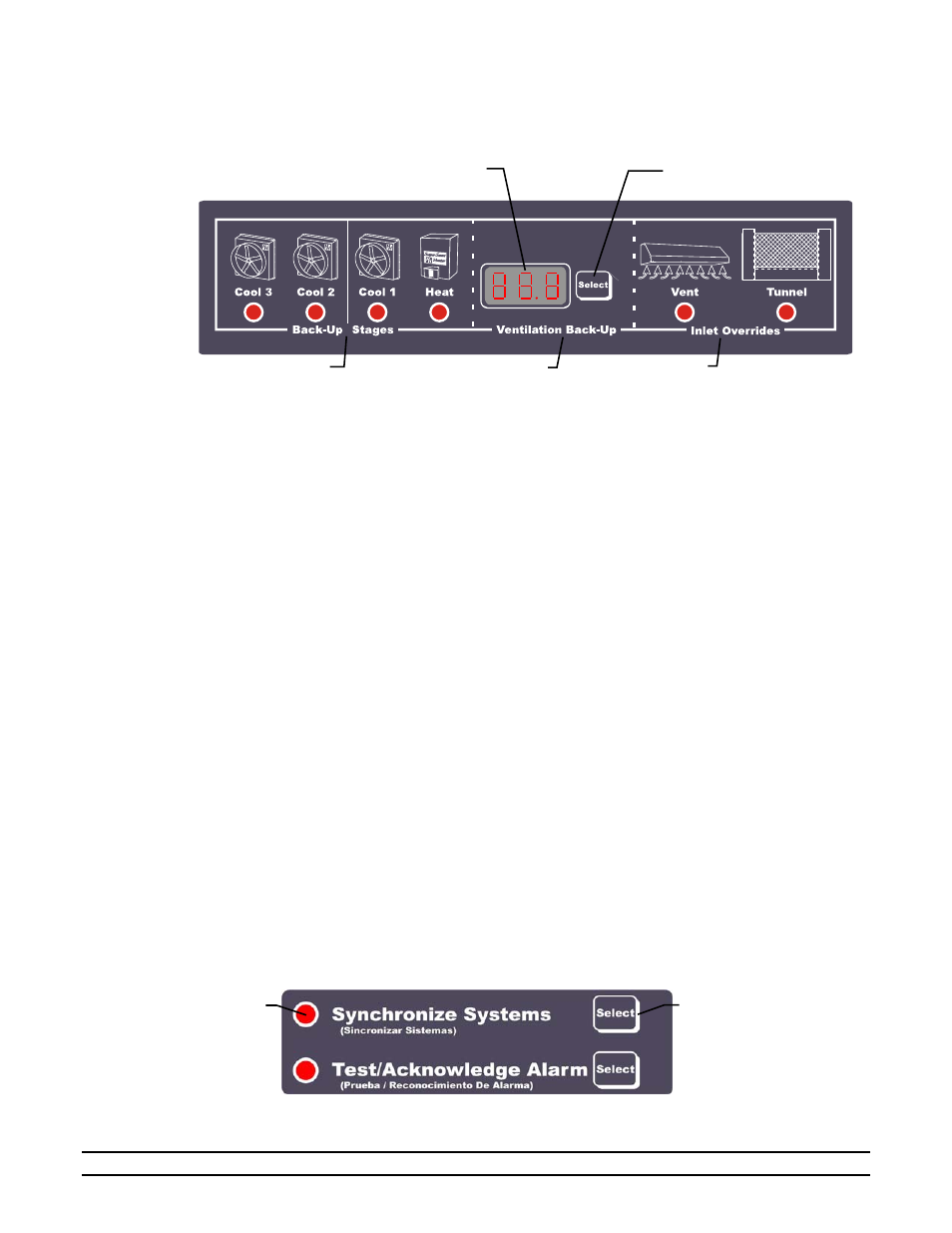

The Back-Up System Indicators display the Back-Up operation status and control settings. Refer to
Section 9 for additional information.














5.3.1 Inlet Overrides Indicators

The Inlet Override Indicators indicate if the Back-Up is calling for vent inlets or tunnel inlets to
open. Vent inlets operate with Cool 1; Tunnel inlets operate with Cool 3.

5.3.2 Ventilation Back-Up Display and Selection Switch

The Ventilation Back-Up Display and Selection Switch are used to select and change the back-up
settings. Refer to Section 9 for additional information.

5.3.3 Back-Up

Stages

The Back-Up Stages Indicators indicate if the Heat, Cool 1, Cool 2, or Cool3 stages are ON or
OFF. If Cool 1 is flashing, it indicates that it is operating on a minimum ventilation timer. Refer
to Section 9.1.1 for additional information.

5.4

Synchronize / Test Indicators

The Synchronize / Test Section include two functions. Synchronize Systems and Test/Acknowledge
Alarm.

5.4.1 Synchronize

Systems

The Synchronize Systems feature is used with the EV-3000 or EV-3001 controller to update the
S

3

target temperatures to the match the controller target temperatures and also automatically reset

the on-board history. The on-board history automatic reset is a new feature added in version
V0.10 and later software. If the S

3

and the EV-3000 or EV-3001 temperature targets do not

reflect the same information, the Synchronize Systems LED will flash. Press the Select button to
automatically Synchronize the target temperatures and reset the on-board history. When the
Synchronize Systems Select button is pressed, the target temperatures of the S

3

will be changed

to match the Evolution 3000/3001 controller target temperatures. It will also be displayed in the
Back-Up display for verification.







Temperature/Settings

Display

Selection Switch

Back-Up Stages

Indicators

Ventilation Back-Up

Display & Selector

Inlet Overrides

Indicators

Synchronize Systems
Select Buttons

Synchronize

Systems

LED Displays
