Manual No. 4801-3001 Rev 7-08

Secondary Sensing System Expansion

40 of 46

Back-Up Status

Current Conditions

Target Conditions

Minimum Vent

Stage Conditions

Historical Data

Alarm Status

Network Status

Program Setup

ENTER

Editor

Navigator

4501-6106

This Product May Be Protected Under One Or More Of
The Following U.S. Patents: 5,193,483 5,336,131

P 1-9 G eneral Param eters

P1 = Tem peratu re Units

C = C el si us

P2 = In dividual Alarm Temperatur e Li mits

F = Fahren heit

Yes = Tem peratu re Lim its Set I ndividually
No = Tem perature Li mi ts Set Identical

P3 = Back-Up Ti mer Percentage
P4 = Back-Up Stage O n Delay

P4 = Back-Up Stage O n Delay

P 40-49 Hir ed-Hand Netw ork

P40 = HH

Netw ork Addr ess

NET

P41 = Softwar e Versio n Num ber
P42 = Contr oll er Setup
P43 = Local Netw ork Enab le

No = Not Conn ected (Stan d-Alo ne)
Yes = Con nected (EV Network)

P 60-69 Alarm F uncti ons

P62 = Cycle Pressur e Al ar m

O N = Enab led
O FF = Di sabl ed

P63 = Mi nim um Vent Cycl e Time (Mi nutes)

PS Sen sor Cal ibration

PS1 = Sensor 1 Cali brati on
PS2 = Sensor 2 Cali brati on
PS3 = Sensor 3 Cali brati on

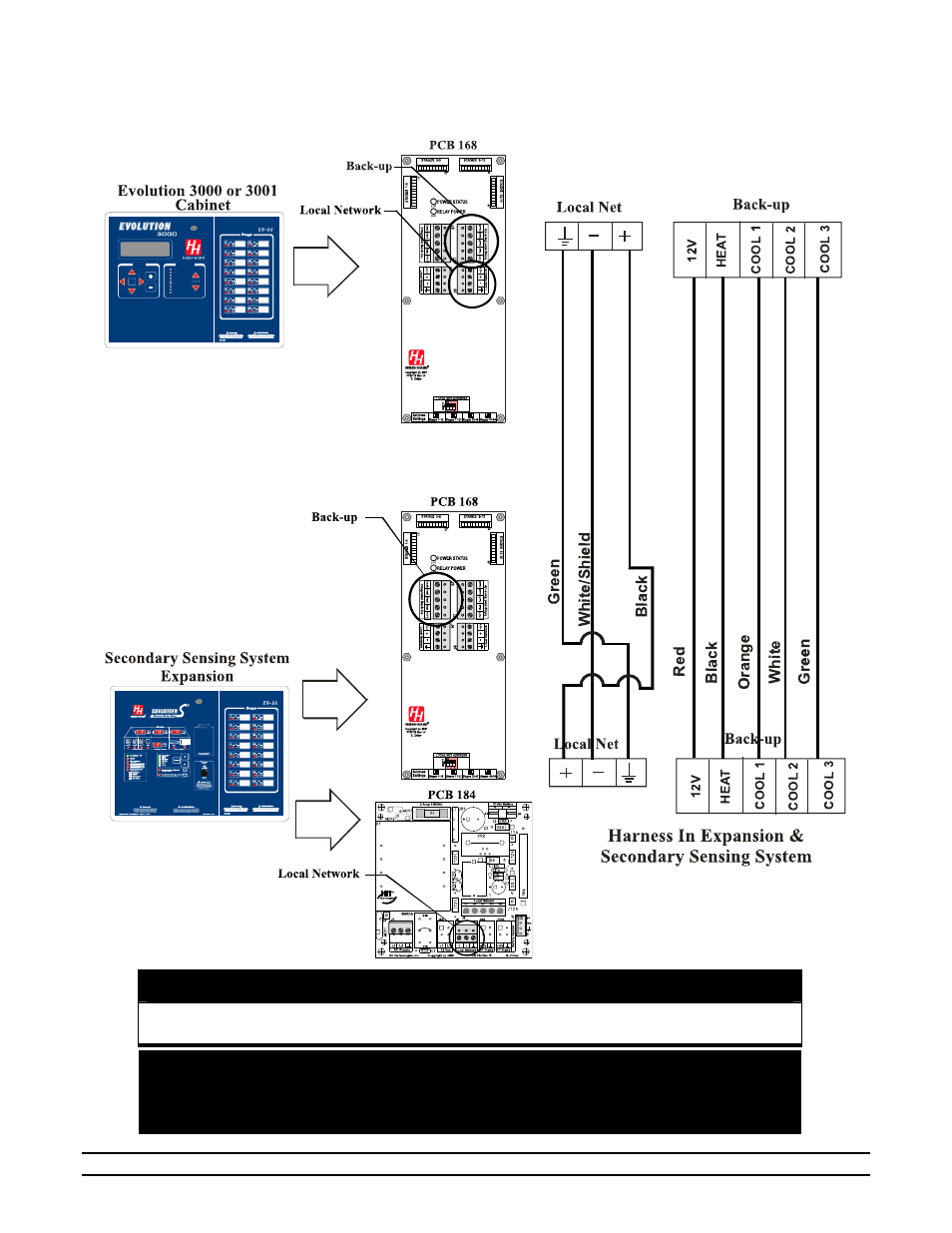

13.13 Connecting Local Network Connections to the S

3

Expansion























































Warning!

Tape Shield To Prevent Damage!

NOTE:

Harness to connect Local Network and Secondary Sensing system
together are connected & included in the Secondary Sensing System
Expansion.
