Setup
8LS User’s Guide 65
Output Limit Time
Use this menu to set the time limit for the output limit.
Selectable values: 1-999 seconds or C (Continuous).
Nonlinear Output Curve
Use this menu to select one of two nonlinear output curves for nonlinear
processes.

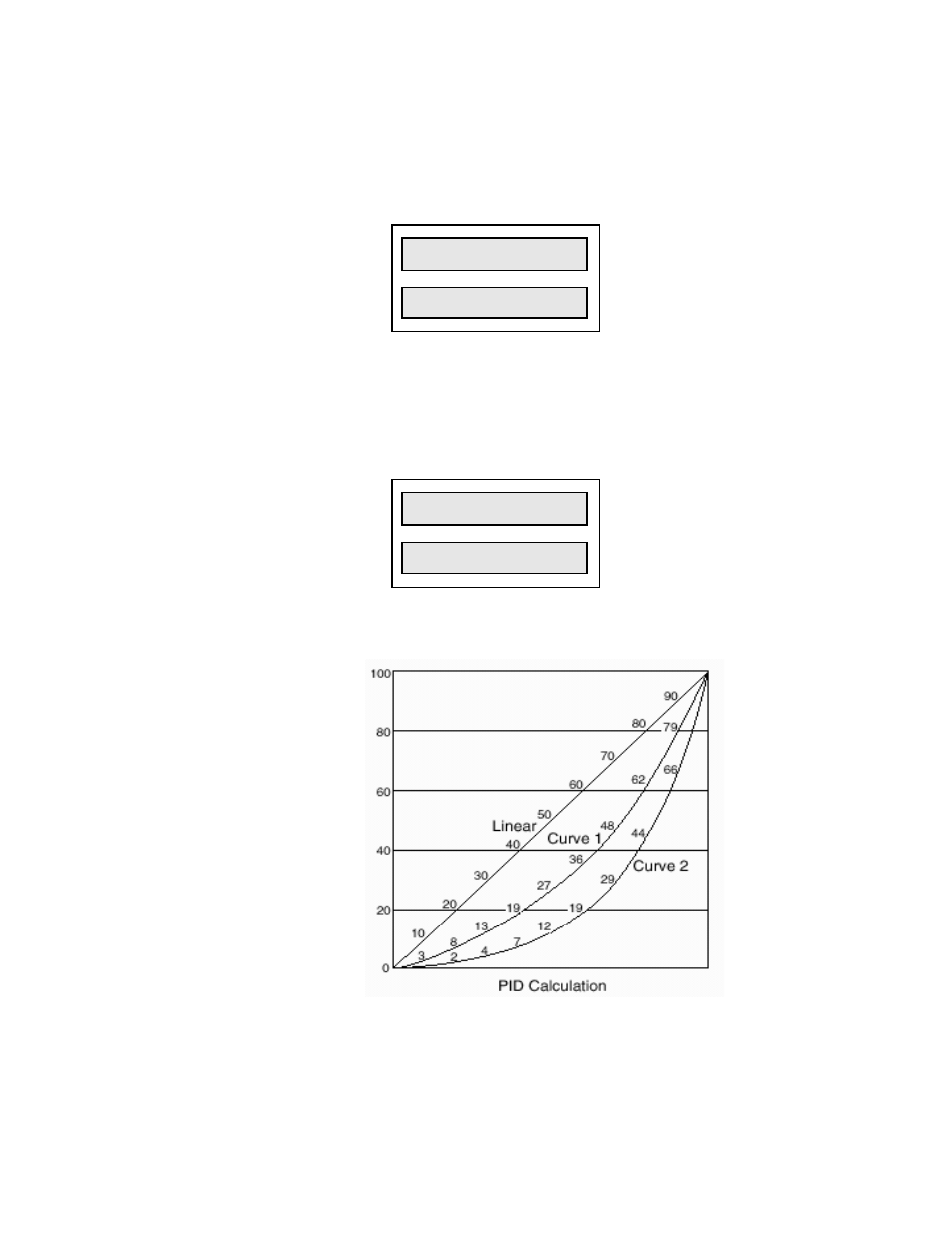

Selectable values: 1 (curve 1), 2 (curve 2), or Off (linear/no curve). The
linear curves are shown below.
1 2 3 4 5 6 7 8
LOOP PROCESS UNITS
ALARM SETPOINT STATUS OUTPUT%
1 OUTPUTS
LTM ? C H
T
1 2 3 4 5 6 7 8
LOOP PROCESS UNITS
ALARM SETPOINT STATUS OUTPUT%
1 OUTPUTS
NLO ?OFF H
T
