22 8LS User’s Guide
Installation

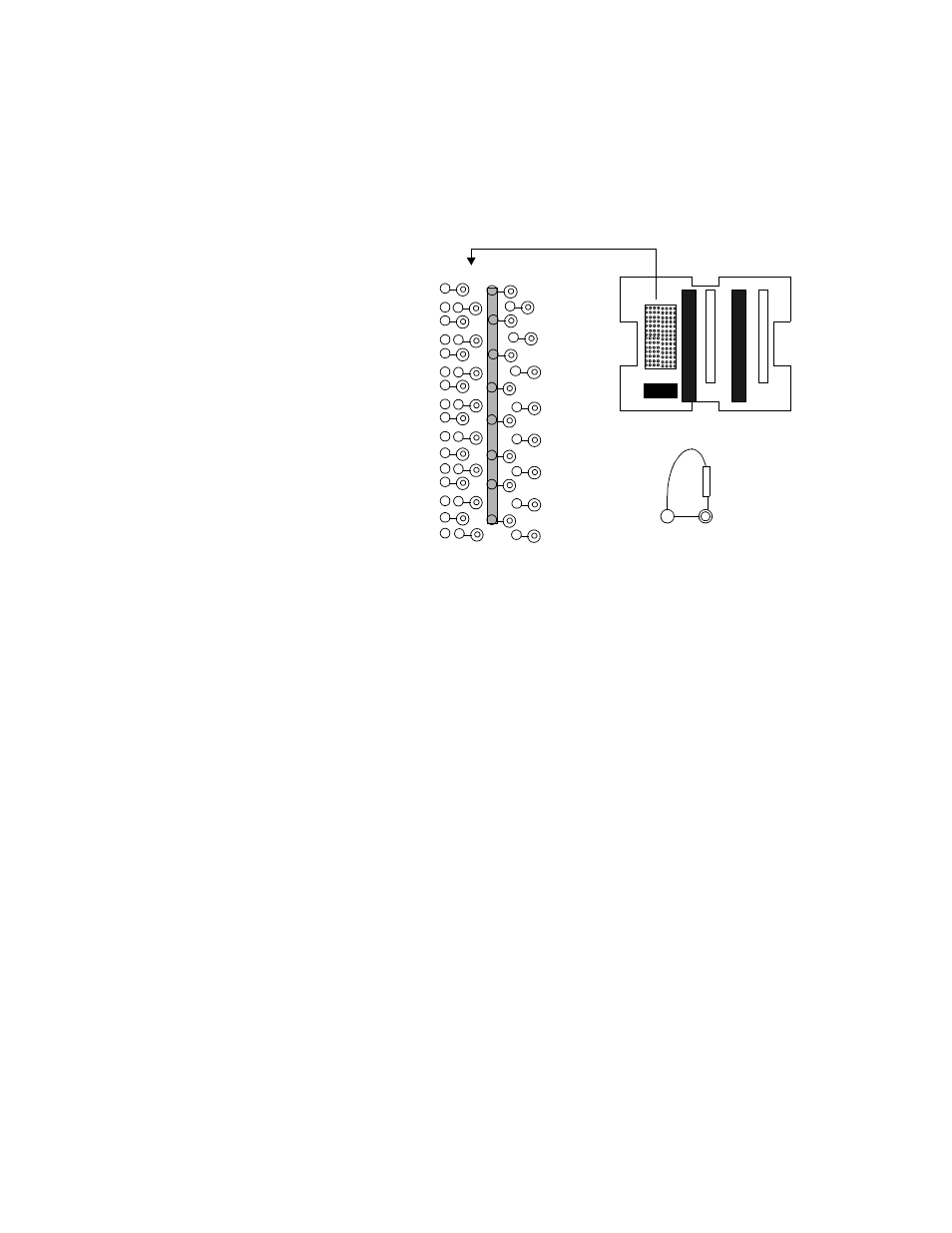

Resistor Installation
For scaling resistors the body of the resistor goes vertically into the hole
with the white silk screen. The lead on the top then goes into the
adjacent indicated hole. The resistor positions are highlighted.
RC1
RB1
RC2
RB2
RC3
RB3
RC4
RB4
RC5
RB5
RC6
RB6
RC7
RB7
RC8
RB8
RD1
RA1
RD2
RA2
RD3
RA3
RD4
RA4
RD5
RA5
RD6
RA6
RD7
RA7
RD8
RA8
