Watlow 8LS Controller User Manual
Page 25
Installation
8LS User’s Guide 17
The above steps should eliminate any noise problems that might be
present with using E-M relays. If, problems persists and/or any
questions about the above steps arises, please call Watlow Anafaze
Technical Service Department at (408) 724 3800.

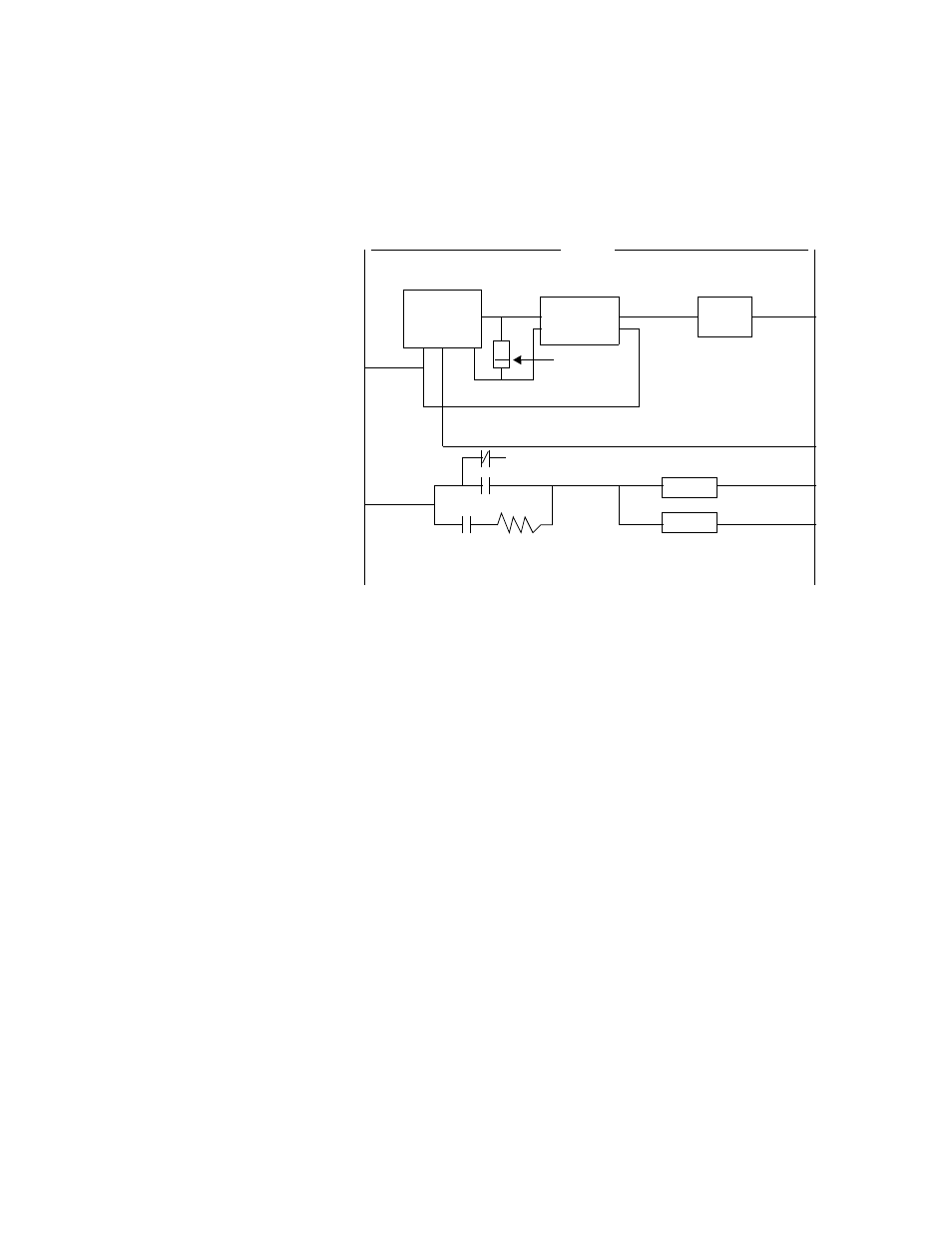

L 1
120 VAC
L 2
MOV
HORN
8LS
-
+
K1
-
+
SSR
5 V Transorb
NC
K1
NO
130 VAC rating
.01uf
1000 VDC
or higher
47 ohm
1/2 W
