Appendix A: Ramp Soak
8LS User’s Guide 99
Using Ramp/Soak
This section explains how to assign a profile to a loop, how to put a
profile in Run, Continue, or Hold mode, how to reset a profile, and how
to display profile statistics.

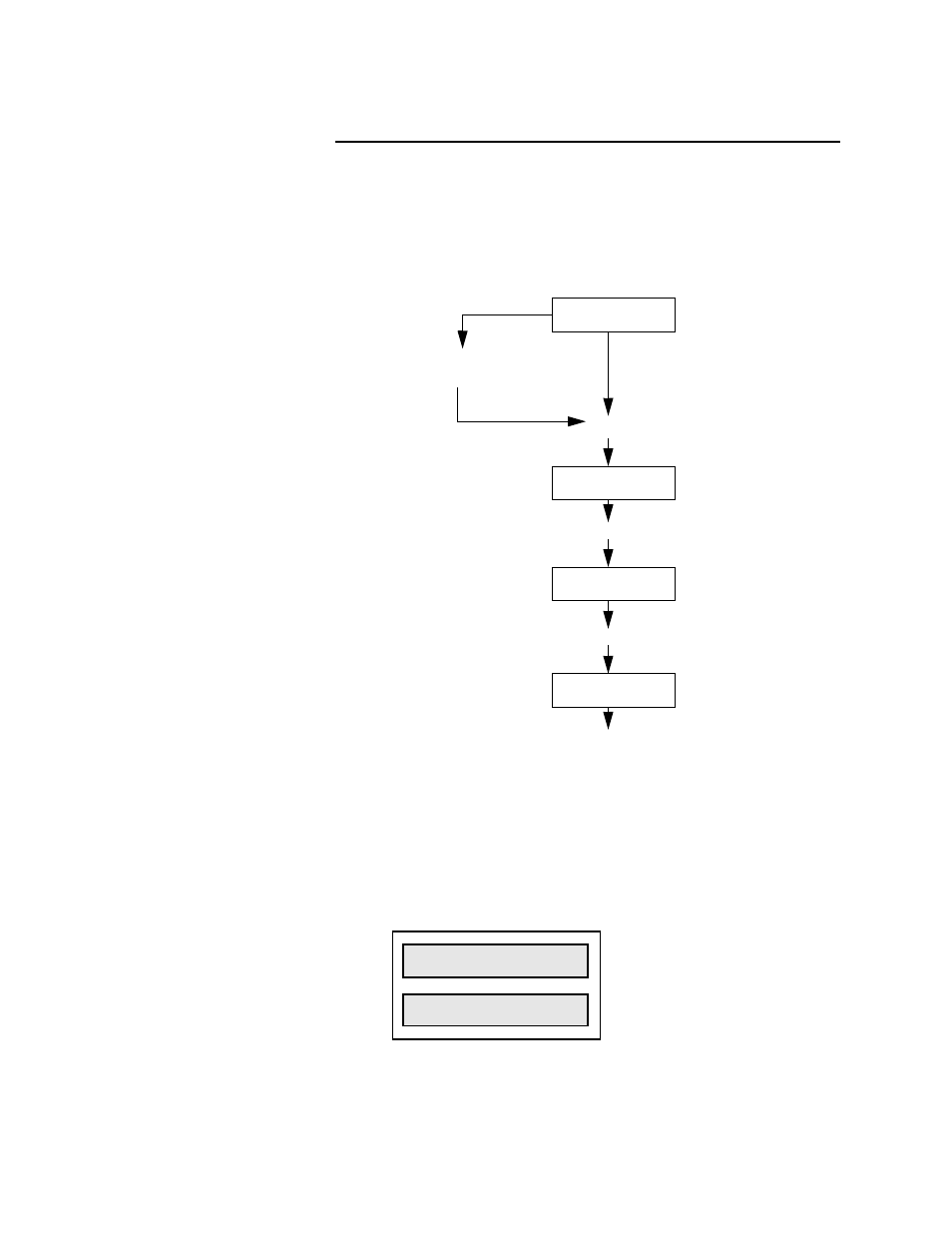

The next figure shows the Ramp/Soak key menus.
From the Ramp/Soak Reset display:
• Press NO to return to Single Loop display.
• Press BACK to return to the Time Remaining display.
Assigning a profile to a loop
Use this menu to assign a profile to a loop.
Selectable Values: A-H, or 0.
Press R/S Key
Assign Ramp/Soak
Profile
If profile is already
assigned
Time Remaining
Press R/S Key
Cycle Number
Press R/S Key
Ramp/Soak Mode
Press R/S Key
Ramp/Soak Reset
1 2 3 4 5 6 7 8
LOOP PROCESS UNITS
ALARM SETPOINT STATUS OUTPUT%
1 SELECT
PROF? 0
