Wiring

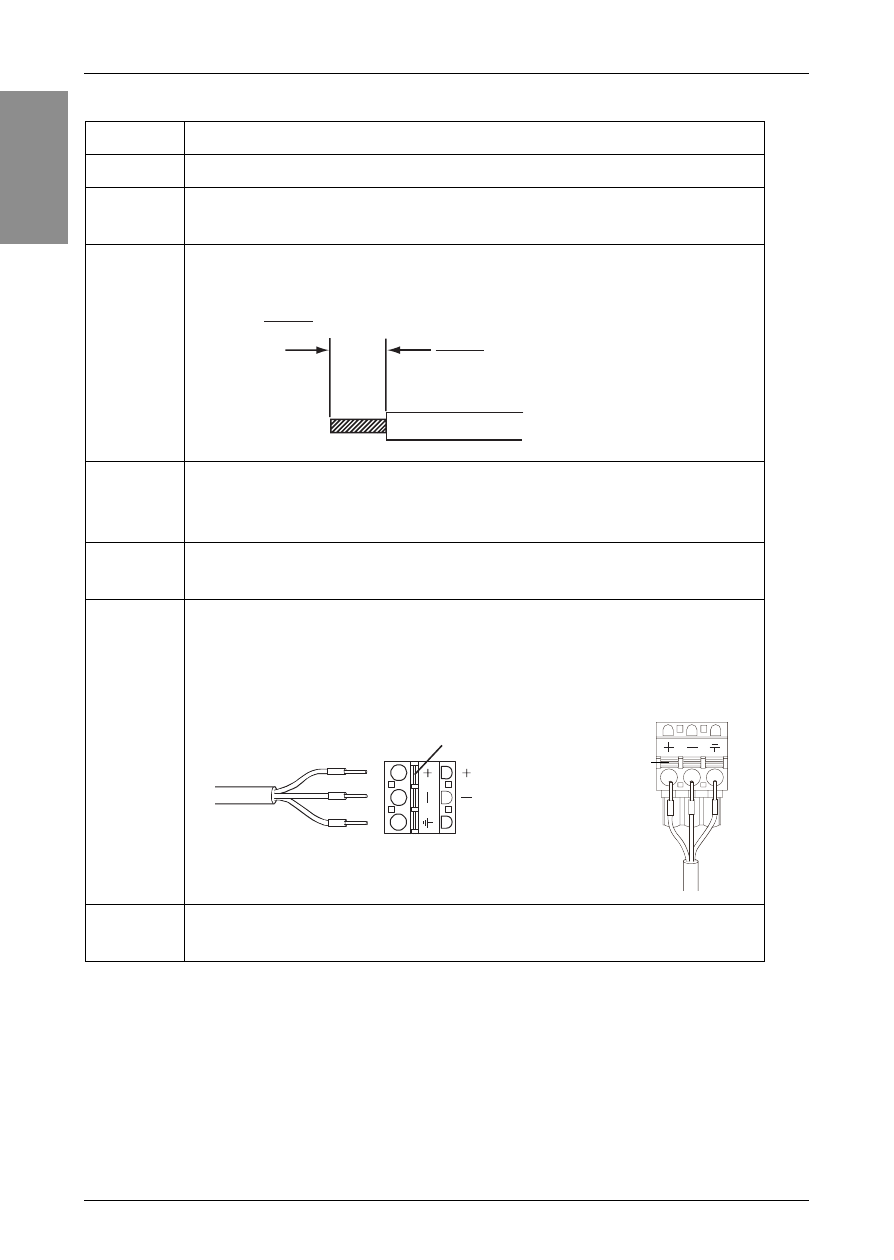

How to connect the DC Power Cord
Note:
•
Do not solder the wire directly to the power receptacle pin.
•
To prevent the possibility of a terminal short, use a pin terminal that has an insulating
sleeve.
•
The DC power supply connector for PFXGP4301TADR/PFXGP4401TADR can be
connected to PFXGP4501TADR/PFXGP4601TADR. However, the DC power supply
connector for PFXGP4501TADR/PFXGP4601TADR is unable to connect to
PFXGP4301TADR/PFXGP4401TADR.
Step
Action
1
Confirm the power cord is not connected to the power supply.
2
Check the rated voltage, and remove the “DC24V” sticker on
the DC power supply connector.
3
Remove 10 mm (0.39 in.) of the vinyl membrane off the ends
of the power cord wires.
4
If using stranded wire, twist the ends. Tinning the ends with
solder reduces risk of fraying and ensures good electrical
transfer.
5
Push the Opening button with a small and flat screwdriver to
open the desired pin hole.
6
Insert each pin terminal into its corresponding holder. Release
the Opening button to clamp the pin in place.
7
After inserting all three pins, insert the DC power supply
connector into the power connector on the GP unit.
mm
in.
10
0.39
DC Power Cord
Opening Button
FG
(24V)
(0V)
PFXGP4301TADR
PFXGP4401TADR
PFXGP4501TADR
PFXGP4601TADR
Opening Button
FG
+
-
