Proface GP4600R - 12.1 Standard HMIs with Rear Mounting Options" - Manual (Page 32)

34
Eng
lis
h
Installation
A) Resin plate
B) Boss diameter: ø10.5 mm ± 0.5 mm (ø 0.41 in. ± 0.02 in.)
C) Lower hole depth: 6 mm (0.24 in.) or more
D) Boss height: 20 mm (0.79 in.) ± 0.1 mm (± 0 in.) for the
standard mount orientation
E) Boss height and resin plate thickness*
1
):
19.5 mm (0.77 in.) ± 0.1 mm (± 0 in.) for the flat mount
orientation
*1 Resin plate thickness: max. 2mm (0.08 in.)
Note :
• Before you start this work, carefully read "3. Panel Cut
Dimensions" (see page 20).
• Design the resin plate on the basis of sufficient testing and within
your quality assurance range. However, the boss height cannot
be changed.
• Do not construct any ribs outside of the area indicated by diagonal
lines in the figure.
%
PP
LQ
GLPHQVLRQ
WROHUDQFH
“PP
“LQ

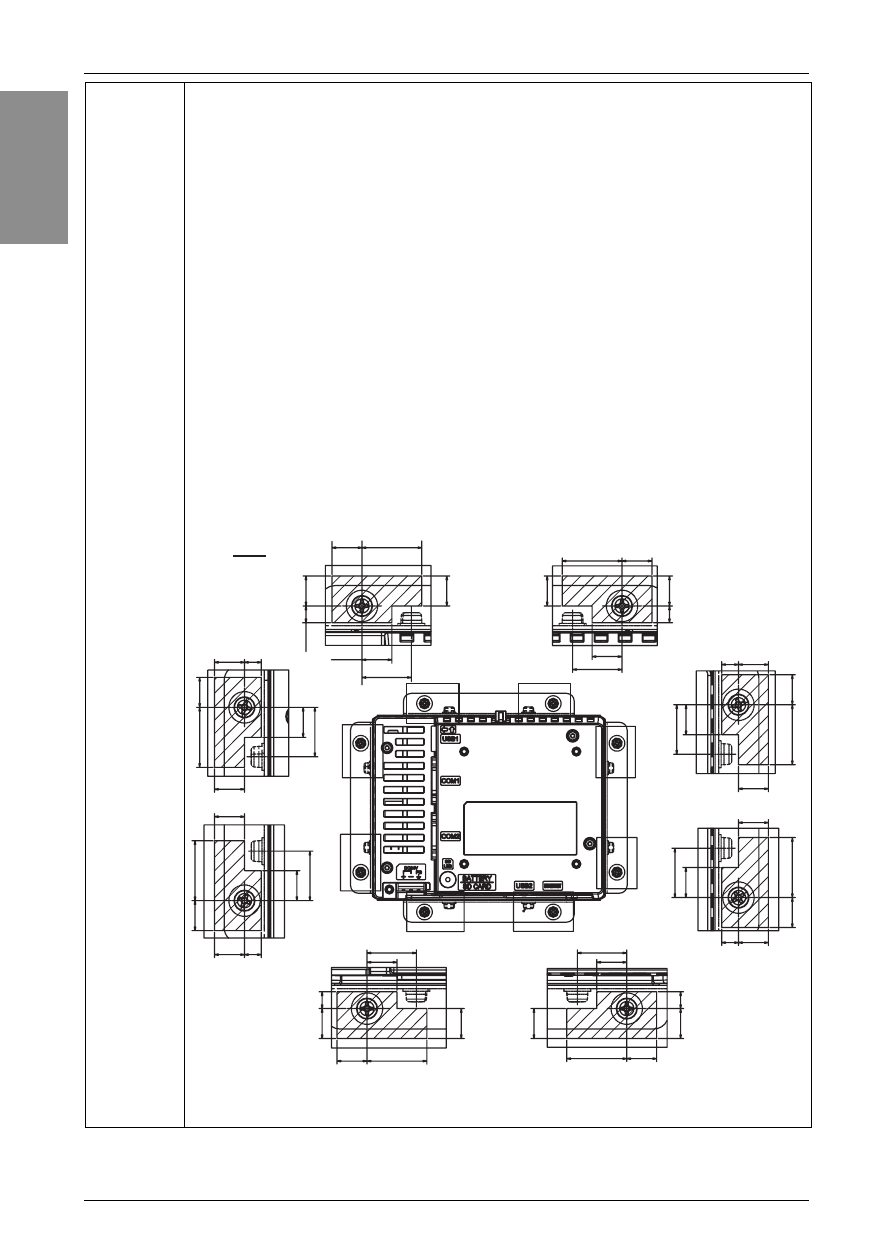

(This figure shows PFXGP4301TADR. The dimensions are common with all
of the rear mount models.)
