AFL2-12A-HM65 Series Panel PC

Page 61

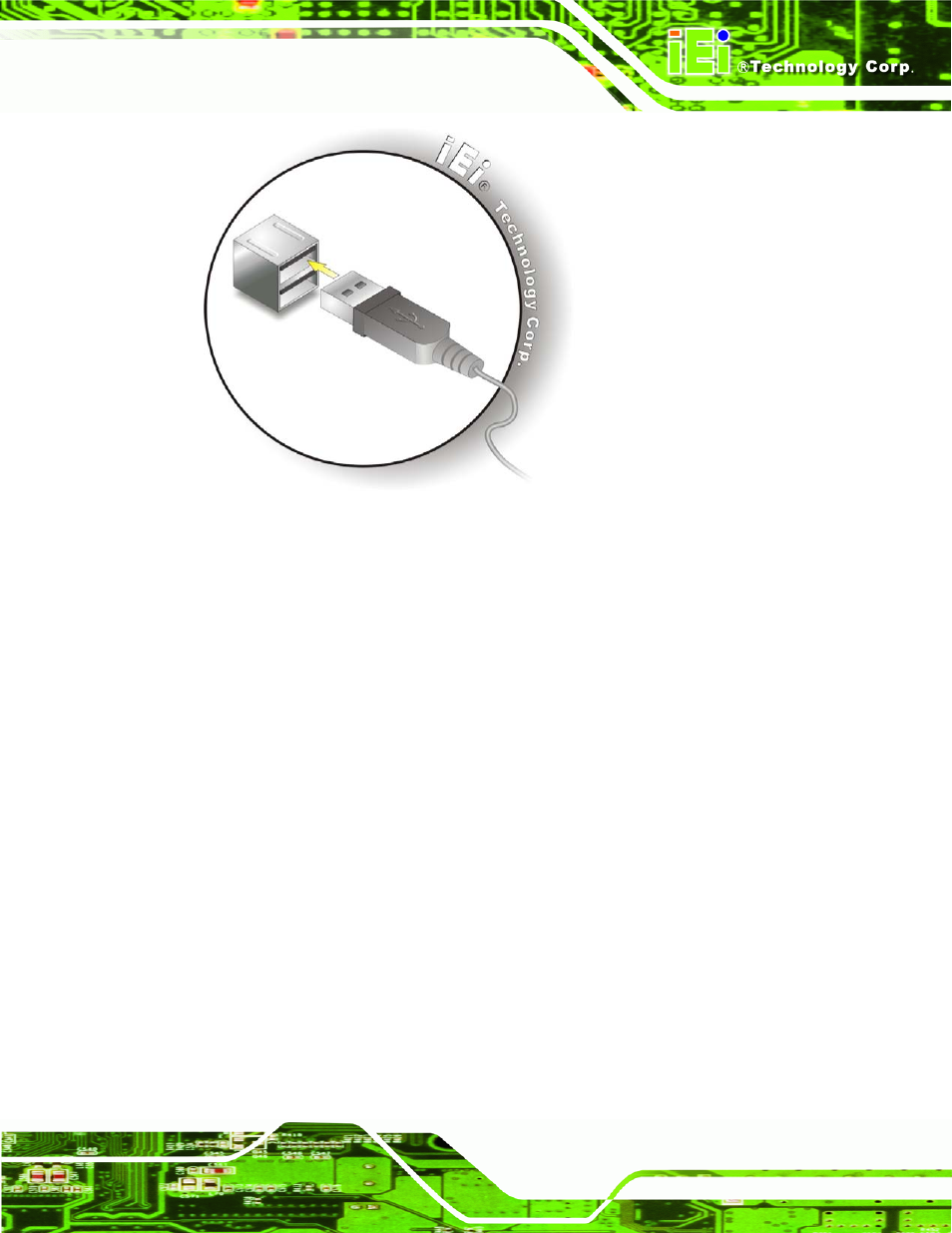

Figure 4-22: USB Device Connection

Step 3:

Insert the device connector. Once aligned, gently insert the USB device

connector into the onboard connector.

Step 0:

4.9.5 HDMI Device Connection

The HDMI connector transmits a digital signal to compatible HDMI display devices such

as a TV or computer screen. To connect the HDMI cable to the AFL2-12A-HM65, follow

the steps below.

Step 1:

Locate the HDMI connector. The location is shown in Chapter 1.

Step 2:

Align the connector. Align the HDMI connector with the HDMI port. Make sure

the orientation of the connector is correct.
