AFL2-12A-HM65 Series Panel PC

Page 46

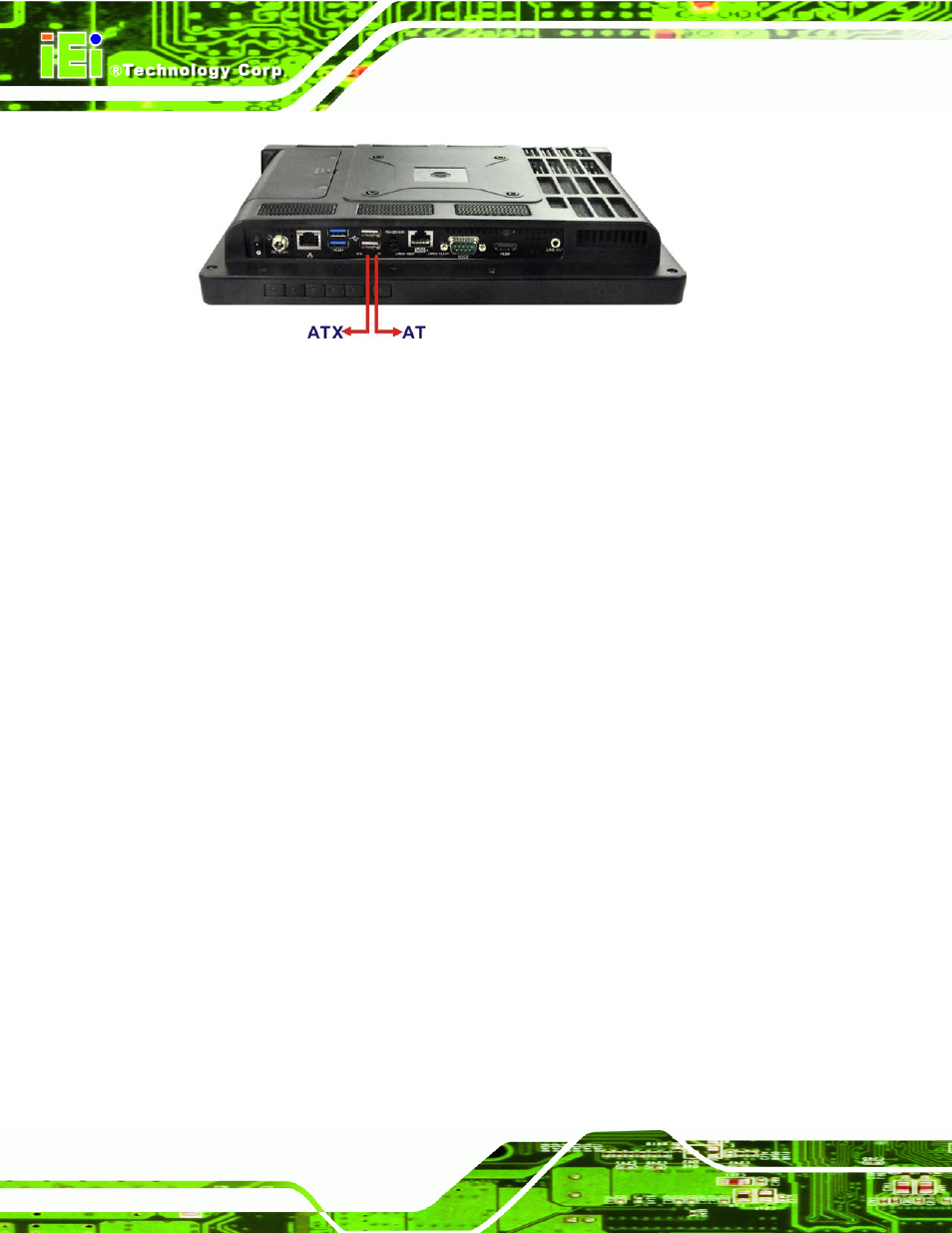

Figure 4-6: AT/ATX Switch Location

Step 2:

Adjust the AT/ATX switch.

Step 0:

4.5.1 AT Power Mode

With the AT mode selected, the power is controlled by a central power unit rather than a

power switch. The AFL2-12A-HM65 panel PC turns on automatically when the power is

connected. The AT mode benefits a production line to control multiple panel PCs from a

central management center and other applications including:

 ATM

 Self-service

kiosk

 Plant environment monitoring system

 Factory automation platform

 Manufacturing shop flow

4.5.2 ATX Power Mode

With the ATX mode selected, the AFL2-12A-HM65 panel PC goes in a standby mode

when it is turned off. The panel PC can be easily turned on via network or a power switch

in standby mode. Remote power control is perfect for advertising applications since the

broadcasting time for each panel PC can be set individually and controlled remotely. Other

possible application includes

 Security

surveillance

 Point-of-Sale

(POS)

 Advertising

terminal
