Figure 2-6: LCD Screen
2.5.2 Touch-Screen Module
A controller for the touch screen is installed on the motherboard. The sensitive touch
screen is accurate, reliable and durable.
2.6 Audio
2.6.1 Audio Codec Controller
The integrated HD Audio compliant audio controller on the Intel® HM65 Southbridge is
integrated to a Realtek ALC888 audio codec. The Realtek ALC888 is connected to an
external audio jack, which is then connected to compliant audio devices. The Realtek
ALC888 is a 7.1+2 channel high definition audio codec with ten DAC channels. It supports
7.1 sound playback and 2 channels of independent stereo sound output. The audio
connector is shown in Figure 2-7.

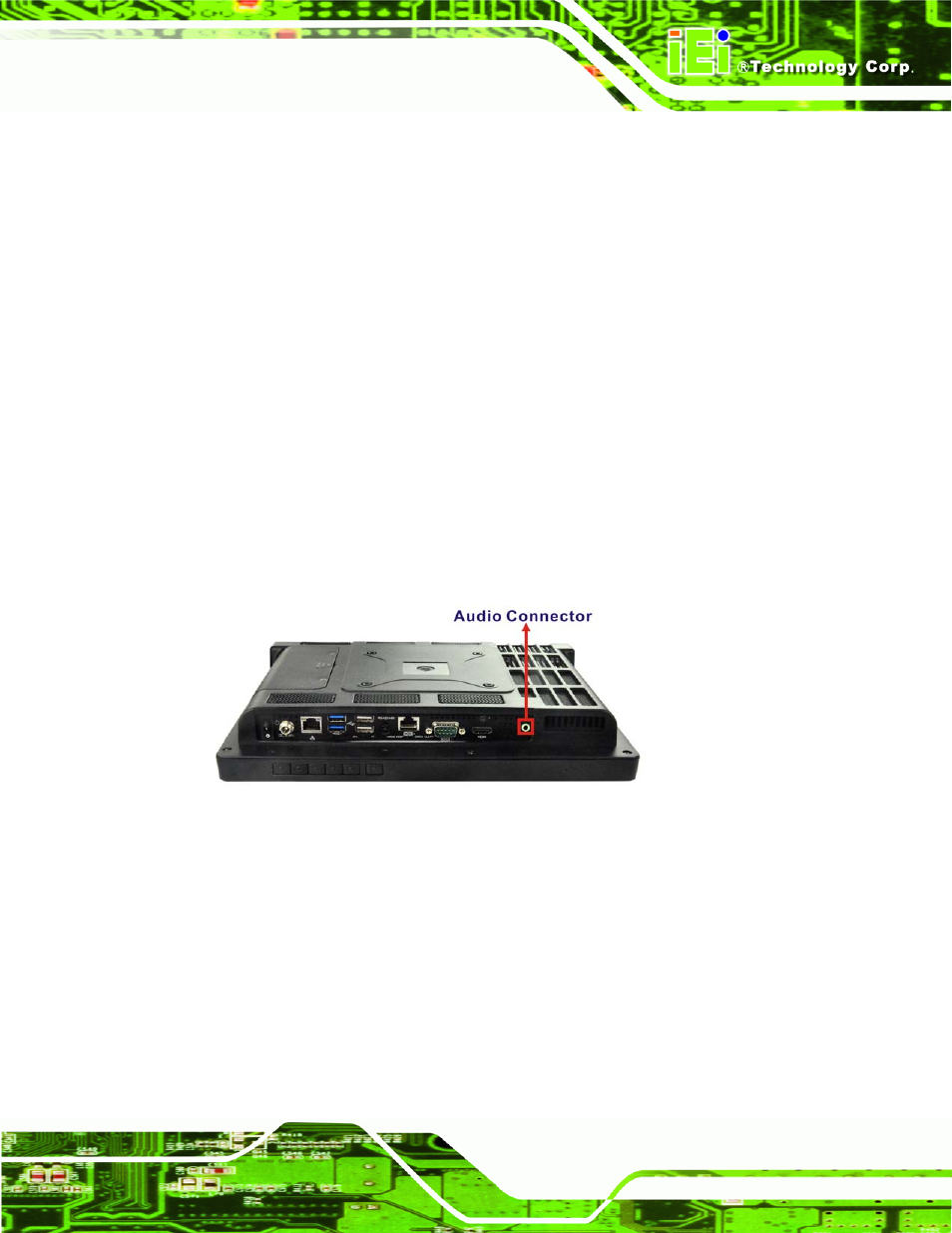

Figure 2-7: Audio Jack
2.6.2 Stereo Speakers
Two internal 1.5 W stereo speakers on the sides of the AFL2-12A-HM65 are interfaced to
the system.
