4.9.2.1 DB-9 Serial Port Connection

Follow the steps below to connect a serial device to the DB-9 connector of the

AFL2-12A-HM65 panel PC.

Step 1:

Locate the DB-9 connector. The location of the DB-9 connector is shown in

Chapter 2.

Step 2:

Insert the serial connector. Insert the DB-9 connector of a serial device into

the DB-9 connector on the bottom panel. See Figure 4-16.

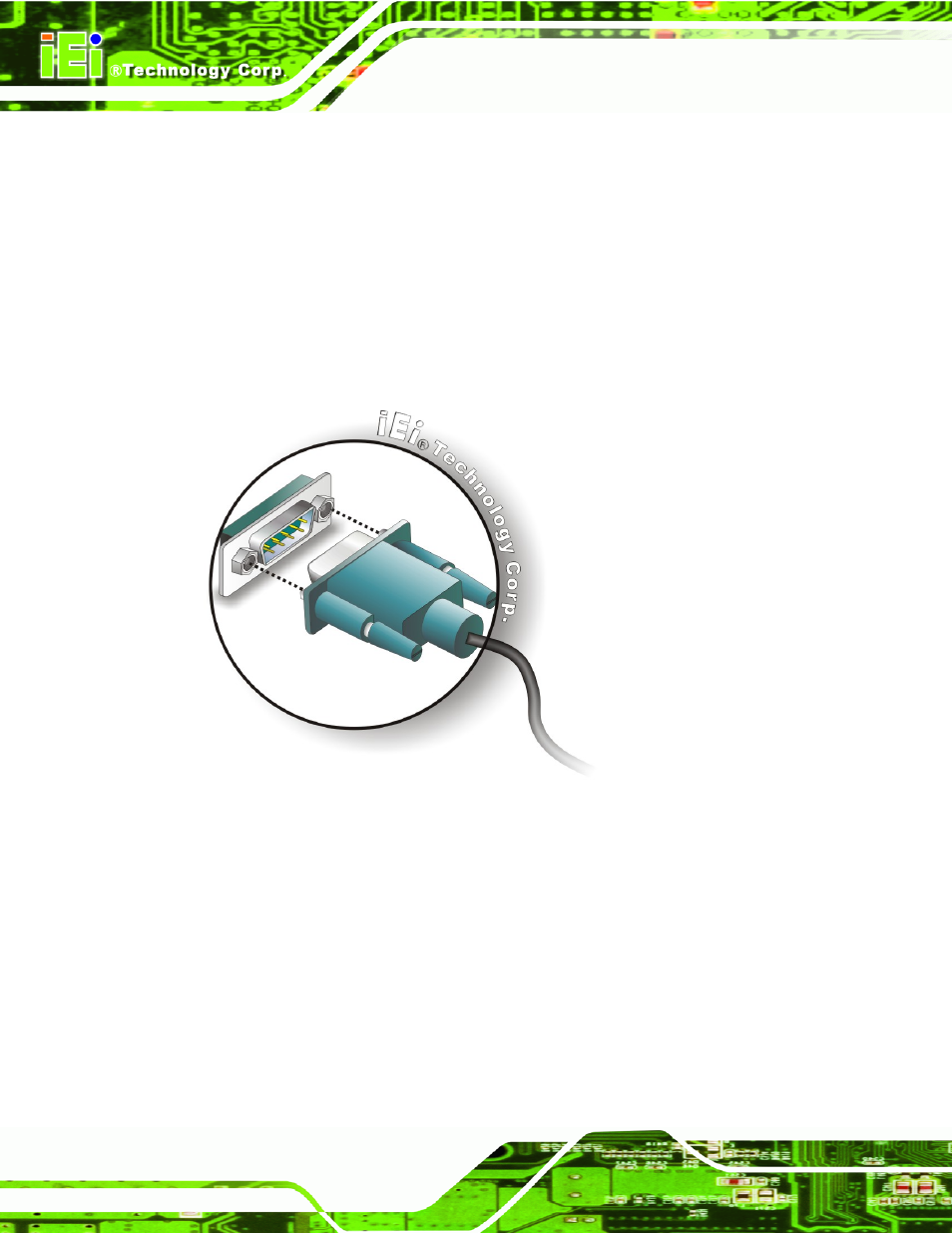

Figure 4-16: DB-9 Serial Port Connector

Step 3:

Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 0:

4.9.2.2 RJ-45 Serial Port Connection

CN Label:

COM3

CN Type:

RJ-45
