AFL2-12A-HM65 Series Panel PC

Page 45

Step 6:

Secure the HDD to the bracket using four (4) retention screws (two screws on

each side) (Figureٛ 4-5).

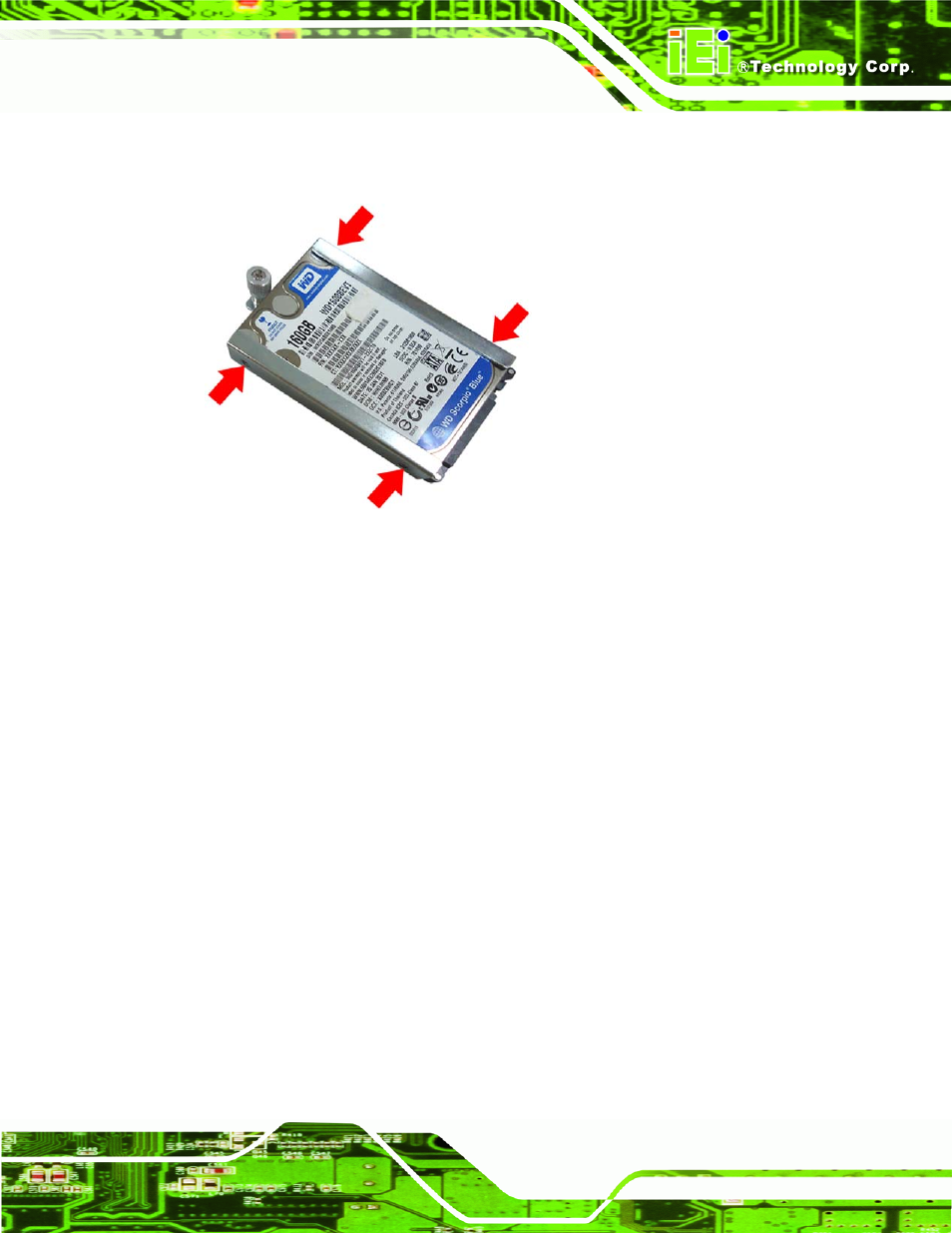

Figureٛ 4-5: Securing the HDD

Step 7:

Slide the HDD module back into the device.

Step 8:

Tighten the captive screw.

Step 9:

Replace the HDD cover and secure it using two (2) retention screws.

Step 0:

4.5 AT/ATX Mode Selection

AT and ATX power modes can both be used on the AFL2-12A-HM65. The selection is

made through an AT/ATX switch located on the I/O panel (Figure 4-6). To select AT mode

or ATX mode, follow the steps below.

Step 1:

Locate the AT/ATX switch on the I/O panel (Figure 4-6).
