AFL2-12A-HM65 Series Panel PC
Page 53
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the AFL2-12A-HM65 flat bezel panel PC and the
rack/cabinet into which the AFL2-12A-HM65 is installed.
Step 1: Slide the rear chassis of the AFL2-12A-HM65 flat bezel panel PC through the
rack/cabinet bracket until the aluminum frame is flush against the front of the
bracket (Figure 4-12).

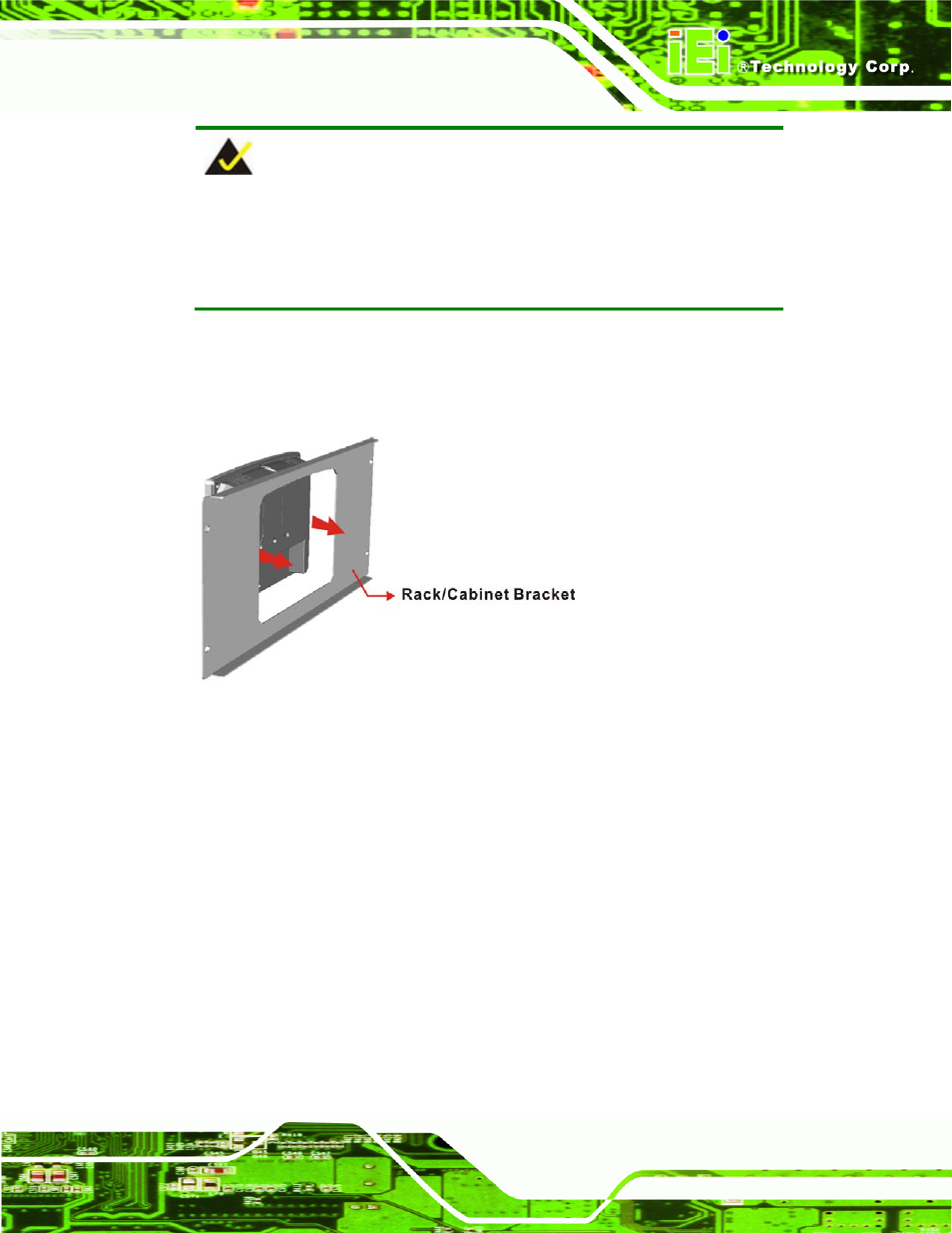

Figure 4-12: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the flat bezel panel PC, behind the ABS/PC plastic frame. There are a total of 6
rack mounting clamps.
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket (Figure 4-13).
